Makita 6812 Electric Screwdriver Parts

Makita 6812 Electric Screwdriver Parts Image

Makita 6812 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

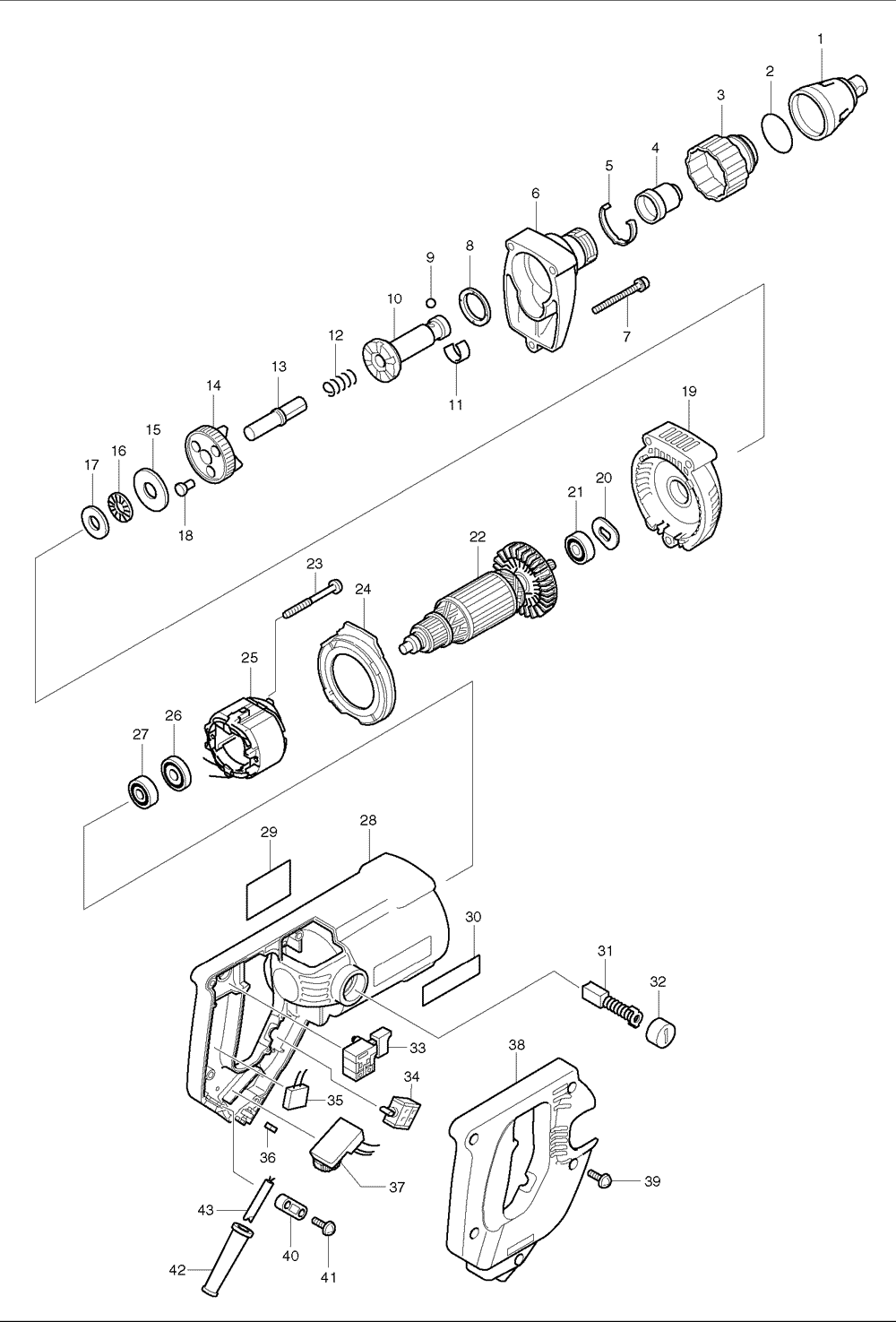

Makita 6812 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 150937-2 LOCATOR COMPLETE' 6812 $16.20
2 213407-3 O RING 26, 4200H $1.19
3 415833-4 LOCK RING, 6812 $2.84
4 421532-8 DUST SEAL RING, 6812 $1.52
5 232154-7 LEAF SPRING, 6823 $4.16
6 150938-0 GEAR HOUSING COMPLETE, 6812 $18.02
7 911173-3 P.H. SCREW M4X45, 6906 $1.19
8 421392-8 RING 20, 6820V $0.97
9 216001-0 STEEL BALL 3.5, 6800DBV $0.53
10 223128-9 SPINDLE, 6812 $20.55
11 232050-9 LEAF SPRING, 6820V $1.48
12 233126-5 COMP. SPRING 6, FS4200 $1.48
13 268035-9 PIN 8, 6812 $4.93
14 226503-8 HELICAL GEAR, 6812 $23.08
15 216213-5 WASHER 824, 6824 $2.18
16 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
17 216212-7 WASHER 821, FS4200 $2.18
18 256439-7 PIN 4, 6821-T1 $2.73
18 256467-2 PIN 4, 6821-T2 $1.74
19 150939-8 GEAR HOUSING COVER CPL., 6812 $8.45
20 267721-9 WAVE WASHER 15, 6812 $1.01
21 211031-6 BALL BEARING 608LLB, 9227C $10.98
22 517281-4 ARMATURE ASS'Y 115V, 6812 $66.70
23 266091-3 TAPPING SCREW 4X50, 6812 $1.19
24 416697-9 BAFFLE PLATE, 6812 $2.84
25 633421-7 FIELD 115V, 6812 $19.45
28 151576-1 MOTOR HOUSING COMPLETE, 6812 $25.17
29 851529-7 NAME PLATE, 6812 $1.12
30 819063-3 MAKITA LABEL, DA3010F $0.96
31 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
32 643928-5 HOLDER CAP, 9523NB $1.63
33 651268-7 SWITCH, 6501 $9.66
34 651483-3 SWITCH VTX13-01, 6812 $24.62
35 645105-5 NOISE SUPPRESSOR, HK1800 $2.95
36 252045-6 SQUARE NUT M5, BO5021K $1.96
37 631287-9 CONTROLLER, 6812 $31.11
38 416700-6 HANDLE COVER , 6812 $9.33
39 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
40 687063-9 STRAIN RELIEF, 4323K $1.26
41 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
42 682559-5 CORD GUARD 8, 6824 $2.51
42 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
43 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
43 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
1001 265734-4 SCREW M5X13, 6812 $3.28
1002 344687-1 HOOK, 6812 $2.84
1003 421641-3 RUBBER CAP, 6812 $1.52
1004 193163-0 DOUBLE ENDED PHILLIPS BIT,(5PC)6812 $9.20
