Makita 6805BV Electric Screwdriver Parts

Makita 6805BV Electric Screwdriver Parts Image

Makita 6805BV Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

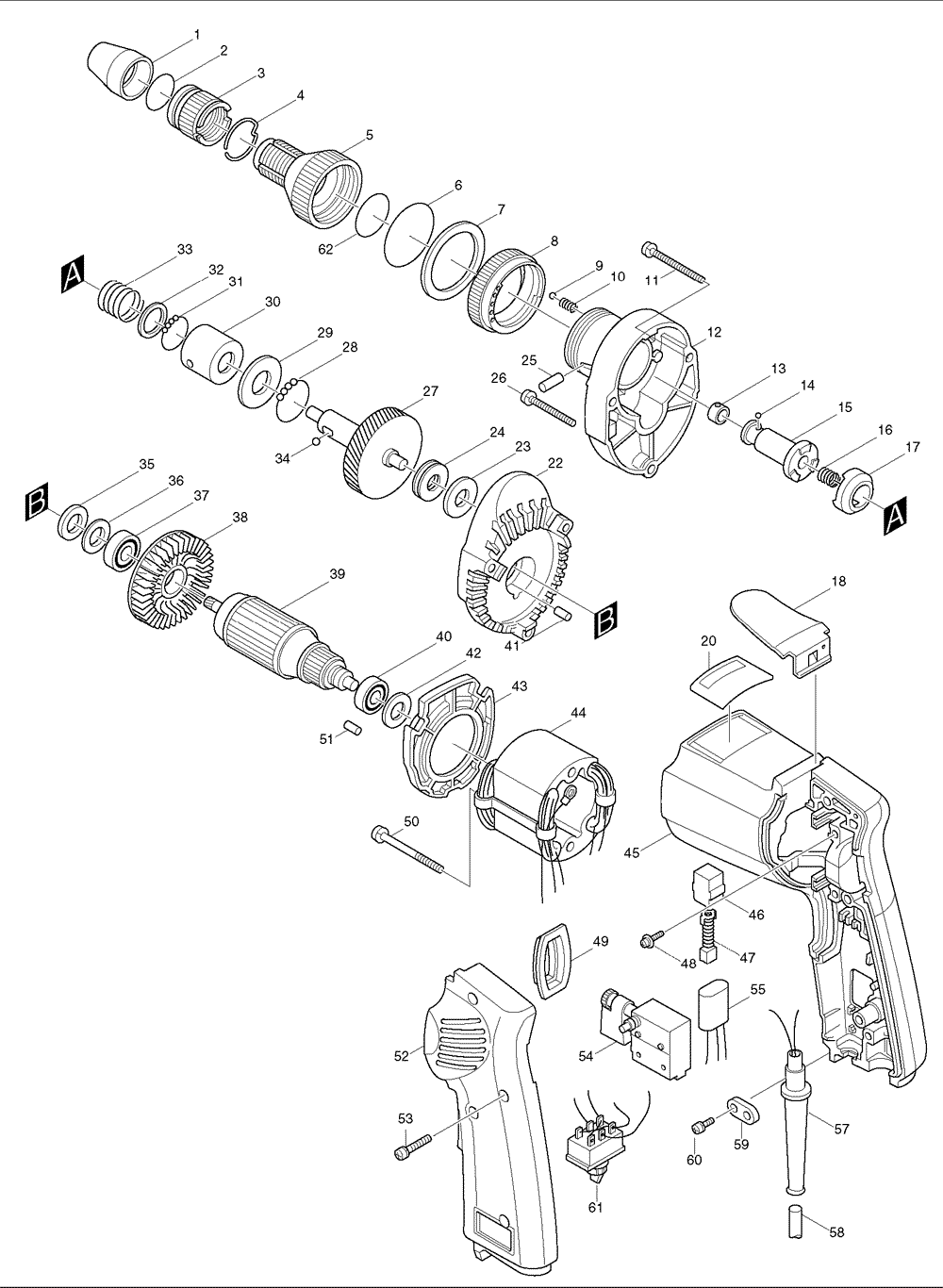

Makita 6805BV Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
39 515156-1 ARMATURE, 6805BV, 6802BV $89.80
2 213310-8 O RING 20, 6805BV $1.19
5 322188-9 CLUTCH COVER, 6805BV $29.58
3 322073-6 ADJUST SLEEVE, 6805BV $13.18
4 231940-3 RING SPRING 22, 6805BV $2.07
5 322188-9 CLUTCH COVER, 6805BV $29.58
6 213458-6 O RING 34, DA301DW $1.19
7 253806-7 F. WASHER 36, 6805BV $2.18
8 150764-7 RING 36, 6805BV $23.19
8 155923-8 RING 36 CPL, 6805BV,T1 $25.17
9 216008-6 STEEL BALL 4.0, 5007NK $0.53
10 231314-8 COMP. SPRING 4, 4301BV $0.86
11 911271-3 P.H. SCREW M5X50, JN3200 $1.19
12 315996-5 GEAR HOUSING, 6805BV, T1 $30.70
12 316988-7 GEAR HOUSING, 6805BV $26.72
13 232050-9 LEAF SPRING, 6820V $1.48
14 216001-0 STEEL BALL 3.5, 6800DBV $0.53
15 134461-3 SPINDLE ASSY, 6805BV $24.62
16 231278-6 COMP. SPRING 6, 6805BV $1.63
17 223073-8 CLUTCH CAM, 6805BV $11.75
18 343693-3 HOOK, 6805BV,T2 $4.49
20 855887-3 NAME PLATE, 6805BV $1.12
22 157842-4 GEAR HOUSING COVER, 6805BV, 6802BV $19.78
23 261038-2 WASHER 10, 6802BV $1.63
24 212057-1 T.N. BEARING 1023, 6801DBV $7.46
25 256226-4 PIN 4, 6922NB $1.19
25 256173-9 PIN 3.5, 6805BV $1.19
26 911261-6 P.H. SCREW M5X40, 9900B $1.19
27 153167-4 GEAR COMPLETE, 6805BV $39.27
28 216014-1 STEEL BALL 3.2, 6805BV $0.53
29 267035-6 F. WASHER 14, LS1214F $2.18
30 322072-8 SLEEVE, 6805BV $8.78
30 323728-6 SLEEVE, 6805BV $7.46
31 216014-1 STEEL BALL 3.2, 6805BV $0.53
32 253837-6 F. WASHER 14, 2030S $1.63
33 231423-3 COMP. SPRING 13.6, 6805BV $4.16
34 216011-7 STEEL BALL 5.6, 6222DWE $0.86
35 261039-0 URETHANE WASHER 14,9005B $1.63
36 253786-7 F. WASHER 14, 6802BV $1.34
37 211033-2 B. BEARING 608LB, 5091D $8.78
38 241881-5 FAN 52, 6904VH $4.16
39 515156-1 ARMATURE, 6805BV, 6802BV $89.80
40 211028-5 B. BEARING 627LB, 6510LVR $8.78
41 263002-9 RUBBER PIN 4, 5007NK $0.86
42 253192-6 F. WASHER 14, HR2400 $1.63
43 413045-3 BAFFLE PLATE, 6805BV $3.06
45 154952-8 MOTOR HOUSING CPL., 6802BV $18.57
46 643552-4 BRUSH HOLDER, BO5012K $1.63
47 K28 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-75), 191956... $8.50
48 911124-6 P.H. SCREW M4X14, 6402 $0.86
49 411852-8 SWITCH COVER, 6805BV $1.63
50 911185-6 P.H. SCREW M4X55, 1923B $1.48
51 263002-9 RUBBER PIN 4, 5007NK $0.86
52 154965-9 HANDLE COVER CPL., 6802BV $9.33
52 155283-8 HANDLE COVER, 6802BV $12.63
53 911153-9 P.H. SCREW M4X28, JR3000V $0.86
54 650206-6 SWITCH, JR3000V $23.96
54 650207-4 SWITCH,HP2010N $17.47
57 682502-4 CORD GUARD 8-85, HP2010N $2.51
57 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
59 687001-1 STRAIN RELIEF, 6013BR $0.97
60 911133-5 P.H. SCREW M4X18, N9501B $0.86
61 651478-6 SWITCH, REVERSING, 6302H $13.84
62 213380-7 O RING 24, 6805BV $1.96
400 784202-3 #2 PHILLIPS BIT 2-45, 6095D $3.40
