Makita 6801DB Electric Screwdriver Parts

Makita 6801DB Electric Screwdriver Parts Image

Makita 6801DB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

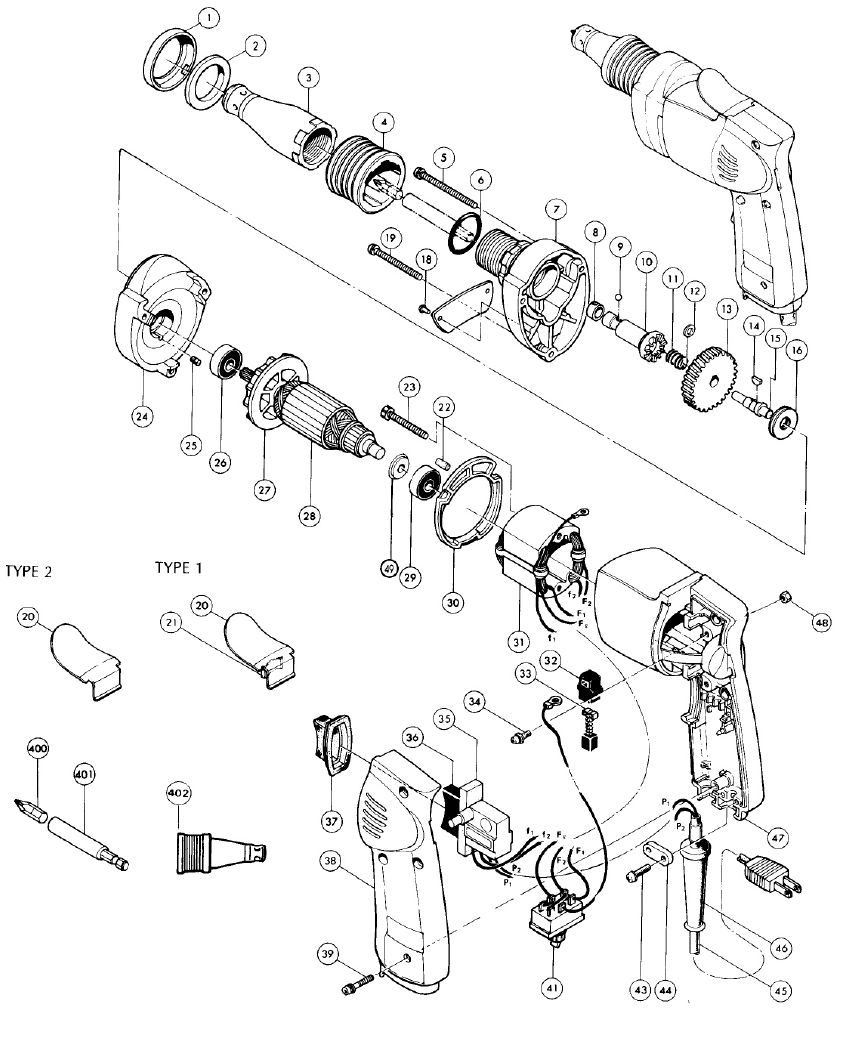

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	411297-0	FELT COVER, 6801DBV	$1.63
2	443028-9	FELT RING, 6802BV	$0.97
3	411292-0	LOCATOR, 6801DBV	$18.90
4	411293-8	LOCKING SLEEVE, 6801DBV	$4.49
5	911181-4	P.H. SCREW M4X55, 3700	$1.48
6	213404-9	O RING 27, 6000LR	$1.96
7	156353-6	GEAR HOUSING, 6801DBV	$36.51
8	232050-9	LEAF SPRING, 6820V	$1.48
9	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
11	231139-0	COMP. SPRING 9, 6800DBV	$0.86
12	253324-5	WASHER 8, 6800DBV	$1.34
14	254031-3	WOODRUFF KEY 3, 6801DBV	$1.26
15	325485-2	GEAR SHAFT,6800DBV	$13.73
16	212057-1	T.N. BEARING 1023, 6801DBV	$7.46
18	953106-2	RIVET 0-5, HM1500	$0.49
19	911173-3	P.H. SCREW M4X45, 6906	$1.19
20	343693-3	HOOK, 6805BV,T2	$4.49
21	232034-7	LEAF SPRING, 6800DBV	$1.48
22	263002-9	RUBBER PIN 4, 5007NK	$0.86
23	911180-6	P.H. SCREW M4X50, 6800DBV	$1.48
24	156354-4	GEAR HOUSING COVER, 6801DBV	$21.32
25	263002-9	RUBBER PIN 4, 5007NK	$0.86
26	211028-5	B. BEARING 627LB, 6510LVR	$8.78
26	211033-2	B. BEARING 608LB, 5091D	$8.78
27	241803-5	FAN, 6801DBV	$5.92
28	611282-5	ARMATURE, 6800DBV	$78.50
28	611302-5	ARMATURE, 6801DBV	$88.40
29	211028-5	B. BEARING 627LB, 6510LVR	$8.78
32	643552-4	BRUSH HOLDER, BO5012K	$1.63
34	911124-6	P.H. SCREW M4X14, 6402	$0.86
36	651212-4	SWITCH, 6801DB	$9.77
39	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
41	531003-8	REV. SWITCH, 6510LVR	$14.94
43	911133-5	P.H. SCREW M4X18, N9501B	$0.86
44	687001-1	STRAIN RELIEF, 6013BR	$0.97
46	682502-4	CORD GUARD 8-85, HP2010N	$2.51
46	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
48	931102-0	HEX NUT M4, 2711	$0.79
49	681617-4	INS. WASHER, 6510LVR	$1.34
401	784801-1	MAGNETIC BIT HOLDER, 6801DBV	$9.20
402	122211-8	LOCATOR ASSEMBLY, 6801DBV	$16.20
