Makita 6800DBV Electric Screwdriver Parts

Makita 6800DBV Electric Screwdriver Parts Image

Makita 6800DBV Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

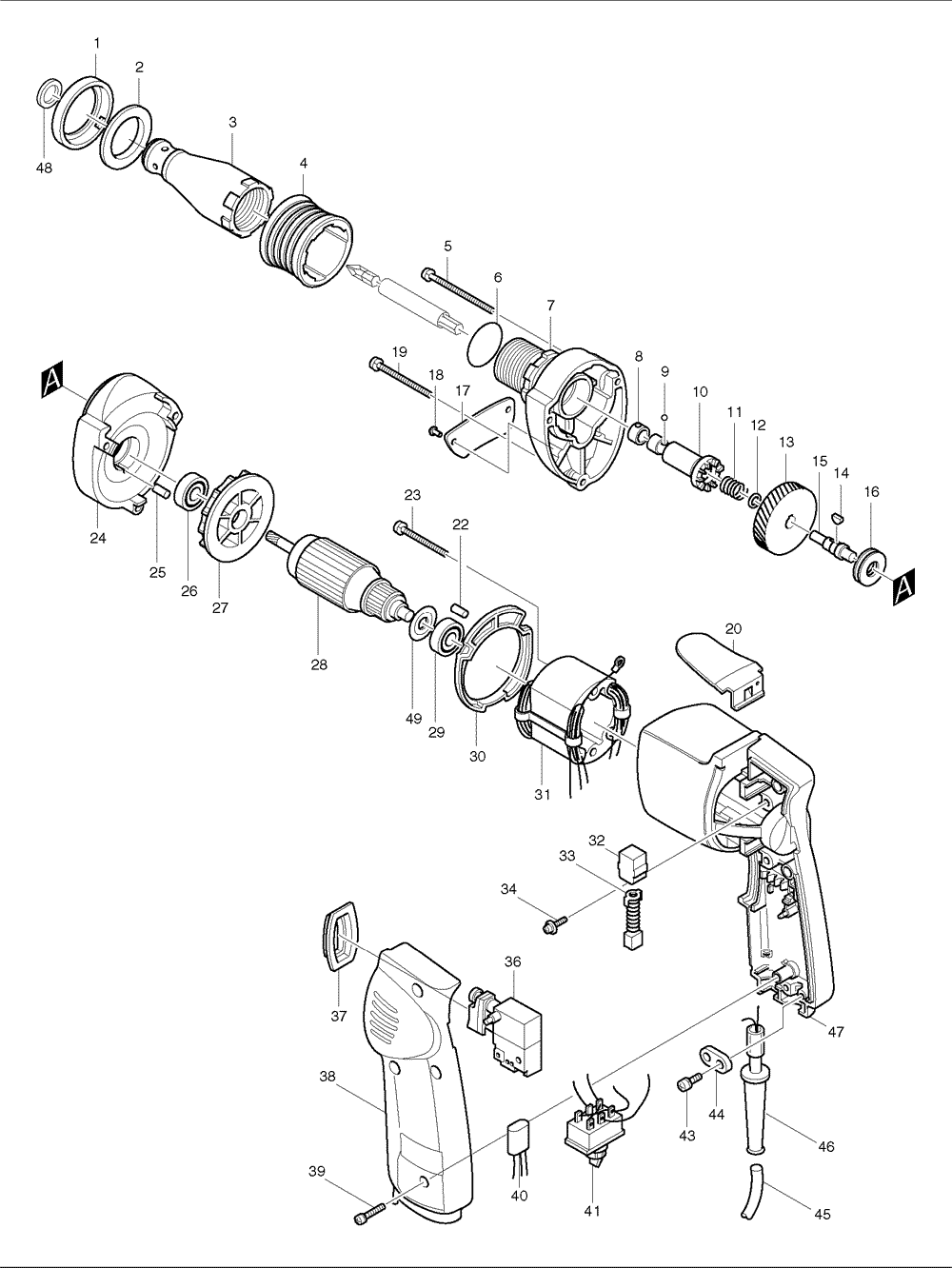

Makita 6800DBV Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 411297-0 FELT COVER, 6801DBV $1.63
00 152158-2 SPINDLE, 6800DBV (TYPE 3) $33.55
8 232050-9 LEAF SPRING, 6820V $1.48
2 443028-9 FELT RING, 6802BV $0.97
3 411292-0 LOCATOR, 6801DBV $18.90
00 232034-7 LEAF SPRING, 6800DBV $1.48
4 411293-8 LOCKING SLEEVE, 6801DBV $4.49
5 911183-0 P.H. SCREW M4X55, 6402 $1.19
6 213404-9 O RING 27, 6000LR $1.96
7 156681-9 GEAR HOUSING, 6800DBV (T2) $25.83
8 232050-9 LEAF SPRING, 6820V $1.48
9 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 231139-0 COMP. SPRING 9, 6800DBV $0.86
12 253324-5 WASHER 8, 6800DBV $1.34
13 221675-4 GEAR, 6800DBV (TYPE 3) $29.47
14 254031-3 WOODRUFF KEY 3, 6801DBV $1.26
15 325485-2 GEAR SHAFT,6800DBV $13.73
16 212057-1 T.N. BEARING 1023, 6801DBV $7.46
17 815402-5 NAME PLATE, 6800DBV $2.51
18 953106-2 RIVET 0-5, HM1500 $0.49
19 911173-3 P.H. SCREW M4X45, 6906 $1.19
20 343693-3 HOOK, 6805BV,T2 $4.49
22 263002-9 RUBBER PIN 4, 5007NK $0.86
23 911576-1 P.H. SCREW M4X50, HR2410 $1.48
24 156682-7 GEAR HOUSING COVER, 6800DBV (T2) $13.73
25 263002-9 RUBBER PIN 4, 5007NK $0.86
26 211028-5 B. BEARING 627LB, 6510LVR $8.78
27 241803-5 FAN, 6801DBV $5.92
29 211028-5 B. BEARING 627LB, 6510LVR $8.78
30 414463-8 BAFFLE PLATE, 6801DBV (T2) $1.26
31 639308-1 FIELD, 6801DBV $28.86
32 643552-4 BRUSH HOLDER, BO5012K $1.63
33 K28 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-75), 191956... $8.50
34 911124-6 P.H. SCREW M4X14, 6402 $0.86
36 650206-6 SWITCH, JR3000V $23.96
36 650207-4 SWITCH,HP2010N $17.47
37 411852-8 SWITCH COVER, 6805BV $1.63
38 154969-1 HANDLE COVER CPL., 6000LR $7.35
38 155300-4 HANDLE COVER, 6510LVR,T3 $13.18
39 911153-9 P.H. SCREW M4X28, JR3000V $0.86
41 651478-6 SWITCH, REVERSING, 6302H $13.84
43 911133-5 P.H. SCREW M4X18, N9501B $0.86
44 687001-1 STRAIN RELIEF, 6013BR $0.97
46 682502-4 CORD GUARD 8-85, HP2010N $2.51
46 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
47 159062-6 MOTOR HOUSING, 6801BV $24.62
47 188104-9 MOTOR HOUSING CPL., 6000LR $18.02
48 261058-6 SPONGE WASHER 11, 6820V $1.01
49 681617-4 INS. WASHER, 6510LVR $1.34
401 784801-1 MAGNETIC BIT HOLDER, 6801DBV $9.20
500 122211-8 LOCATOR ASSEMBLY, 6801DBV $16.20
903 819063-3 MAKITA LABEL, DA3010F $0.96
