Makita 6798FD Cordless Drill Parts

Makita 6798FD Cordless Drill Parts Image

Makita 6798FD Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

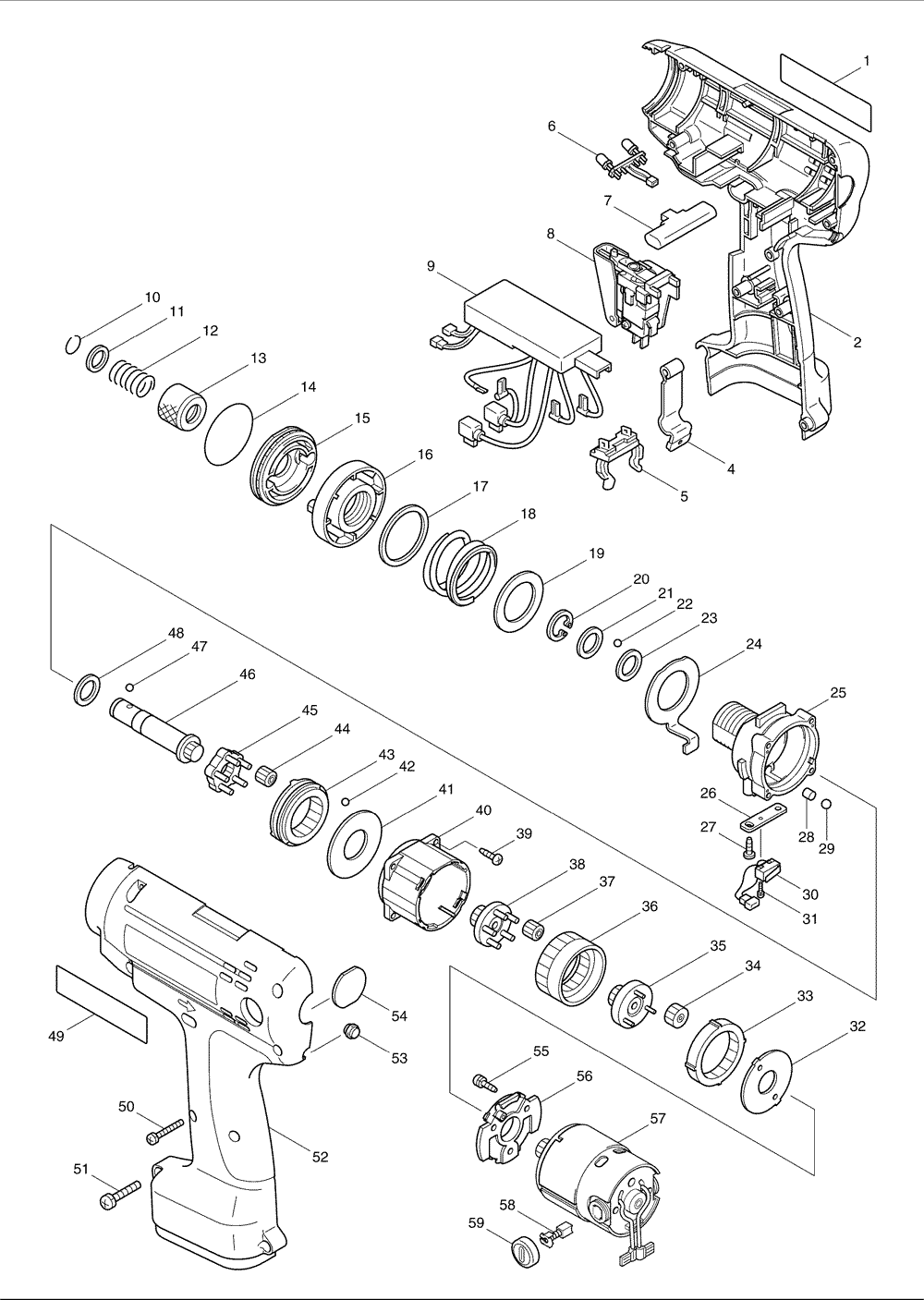

Makita 6798FD Cordless Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 852974-9 NAME PLATE, 6798FD $1.36
2 183321-6 HOUSING SET, 6796FDZ $41.41
4 344798-2 SET PLATE, 6704DW $4.49
5 643918-8 BATTERY HOLDER, 6391DWPLE $8.01
6 631438-4 LED CIRCUIT CPL., 6796FDZ $45.08
7 417511-2 F/R CHANGE LEVER, 6796FDZ $2.84
8 651999-8 SWITCH C3Z-5, 6796FDZ $29.47
9 631437-6 CONTROLLER, 6796FDZ $77.50
10 231965-7 RING SPRING 10, DF030DW $0.86
11 267143-3 FLAT WASHER 11, BTD060Z $1.63
12 233005-7 COMP.SPRING 13,6903VDW $1.48
13 162218-2 SLEEVE, BTD060Z $6.80
14 213510-0 O RING 36, BO4556 $1.48
15 417510-4 FRONT COVER, 6796FDZ $4.16
16 417620-7 SPRING HOLDER,6798FDZ $5.92
17 253356-2 THIN WASHER 30, 6796FDZ $5.26
18 233313-6 COMPRESSION SPRING 30,6798FDZ $4.93
19 253355-4 THIN WASHER 24, 6796FDZ $5.26
20 961072-9 RETAINING RING S-12, 9607NB $1.19
21 253052-2 F. WASHER 12, 9031 $1.34
22 216019-1 STEEL BALL 3, BTD060Z $0.53
23 253052-2 F. WASHER 12, 9031 $1.34
24 344969-1 TORQUE-UP PLATE, 6796FDZ $4.16
25 152835-6 GEAR CASE CPL., 6796FDZ $7.02
26 344968-3 HOLDER PLATE, 6796FDZ $2.84
27 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
28 268068-4 PIN 5, 6796FDZ $1.19
29 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
30 638083-6 SWITCH UNIT, 6796FD $17.25
31 265114-4 P.H. SCREW 2.3X10, 6796FDZ $0.86
32 267738-2 LOCK WASHER, 6796FDZ $1.34
33 226352-3 INTERNAL GEAR 49, 6796FDZ $1.30
34 226351-5 SPUR GEAR 17, 6796FDZ $1.06
35 152833-0 SPUR GEAR 15 CPL., 6796FDZ $5.70
36 227015-4 INTERNAL GEAR 35, 6796FDZ $4.27
37 226311-7 SPUR GEAR 10, 6796FDZ $1.06
38 152834-8 SPUR GEAR 15 CPL., 6796FDZ $4.27
39 265893-4 TAPPING SCREW 3X12, 6796FDZ $0.86
40 416588-4 GEAR CASE A, 6796FDZ $2.95
41 267225-1 FLAT WASHER 18, 6796FDZ $2.18
42 216019-1 STEEL BALL 3, BTD060Z $0.53
43 227014-6 INTERNAL GEAR 35, 6796FDZ $19.34
44 226311-7 SPUR GEAR 10, 6796FDZ $1.06
45 152526-9 CARRIER COMPLETE, 6796FD/FDZ $2.84
46 324136-4 SPINDLE M, 6796FDZ $25.17
47 216019-1 STEEL BALL 3, BTD060Z $0.53
48 253052-2 F. WASHER 12, 9031 $1.34
49 819064-1 MAKITA MARK, 5402NA $1.26
50 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
51 911143-2 P.H. SCREW M4X22, 6211D $0.86
51 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
52 183321-6 HOUSING SET, 6796FDZ $41.41
53 416764-0 LENS, 6796FDZ $4.16
54 345172-7 PLATE, 6798FDZ $2.84
55 911006-2 P.H. SCREW M3X8, 6233DWAE $0.53
56 416587-6 MOTOR BRACKET, 6796FDZ $1.52
57 629790-2 DC MOTOR,6798FD $66.10
58 195017-7 CARBON BRUSH CB-424, 6908DWA $5.92
59 643933-2 HOLDER CAP, 6908DWA $1.63
2001 125151-9 GEAR ASS'Y $66.10
5001 765024-0 TORQUE ADJUST TOOL, 6796FDZ $28.20
