Makita 6791D Cordless Drill Parts

Makita 6791D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

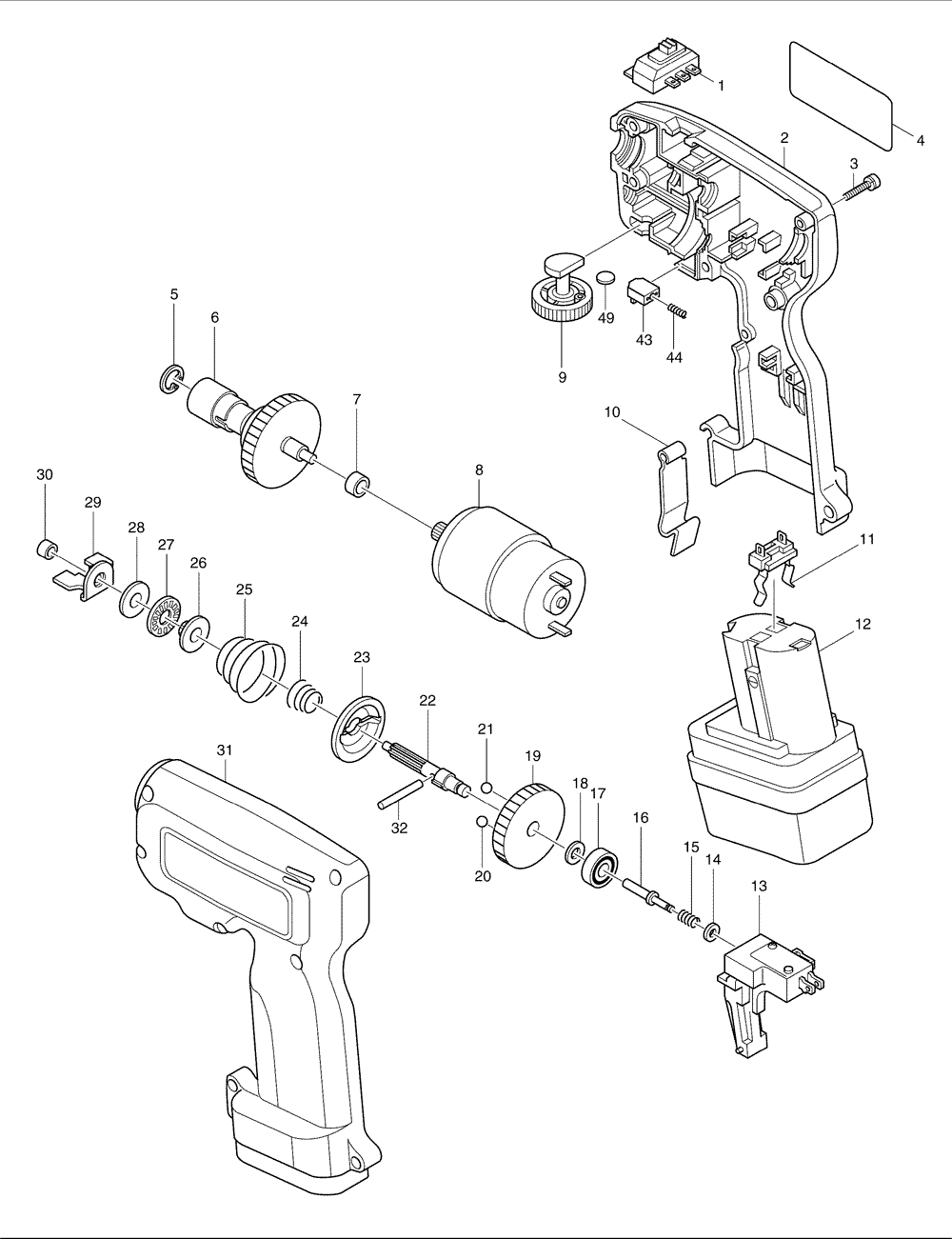

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	531086-8	SWITCH ASS'Y, 6806D	$17.25
2	182891-2	HOUSING SET, 6791DW (T3)	$26.92
3	911143-2	P.H. SCREW M4X22, 6211D	$0.86
4	856298-5	NAME PLATE, 6791D	$1.12
5	961072-9	RETAINING RING S-12, 9607NB	$1.19
6	153188-6	SPINDLE, 6791DW	$42.22
7	214017-9	P. BEARING 5, 6043D	$1.26
8	629580-3	MOTOR, 6791DW	$44.16
9	153219-1	SHIFTER PIN, 6791DW,T3	$13.18
10	343579-1	SET PLATE, 6211D	$3.06
10	344798-2	SET PLATE, 6704DW	$4.49
11	643909-9	BATTERY HOLDER, DA392D	$4.49
13	651237-8	SWITCH, 6791D	$22.31
14	253821-1	F. WASHER 3, NHP1310	$1.34
15	231461-5	COMP. SPRING 3, 6791DW	$0.66
16	322241-1	PIN 3, 6791DW	$4.49
17	211016-2	B. BEARING 626LLB, 6300LR	$10.98
18	253726-5	F. WASHER 6, 6000LR	$1.34
19	221987-5	SPUR GEAR 89, 6791DW	$16.04
20	216009-4	STEEL BALL 7.1, HR2400	$0.86
21	216009-4	STEEL BALL 7.1, HR2400	$0.86
22	226258-5	SPUR GEAR 12, 6791DW (T2)	$22.86
23	322231-4	RETAINER, 6791DW	$8.12
24	231949-5	COMP. SPRING 10-12, 6791DW	$2.51
25	231997-4	CONICAL COMP. SPRING 18-29,6793D	$3.61
26	341902-4	DISC, 6012HDW	$1.26
27	216401-4	T.N.GAUGE 1023,6222DWE	$4.49
28	253851-2	F. WASHER 8, 6012HDW	$1.63
29	164625-5	SLIDER, 6012HDW	$3.06
30	214019-5	P. BEARING 4, 6043D	$1.26
31	182891-2	HOUSING SET, 6791DW (T3)	$26.92
32	256187-8	PIN 4, 6791DW	$1.12
43	414515-5	STOPPER, 6791DW	$1.63
44	231453-4	COMP. SPRING 2, 6900DW	$0.86
45	253332-6	T. WASHER 6, 6791DW	$2.18
403	414938-7	BATTERY COVER, 6222DWE	$2.20
