Makita 6701B Cordless Screwdriver Parts

Makita 6701B Cordless Screwdriver Parts Image

Makita 6701B Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

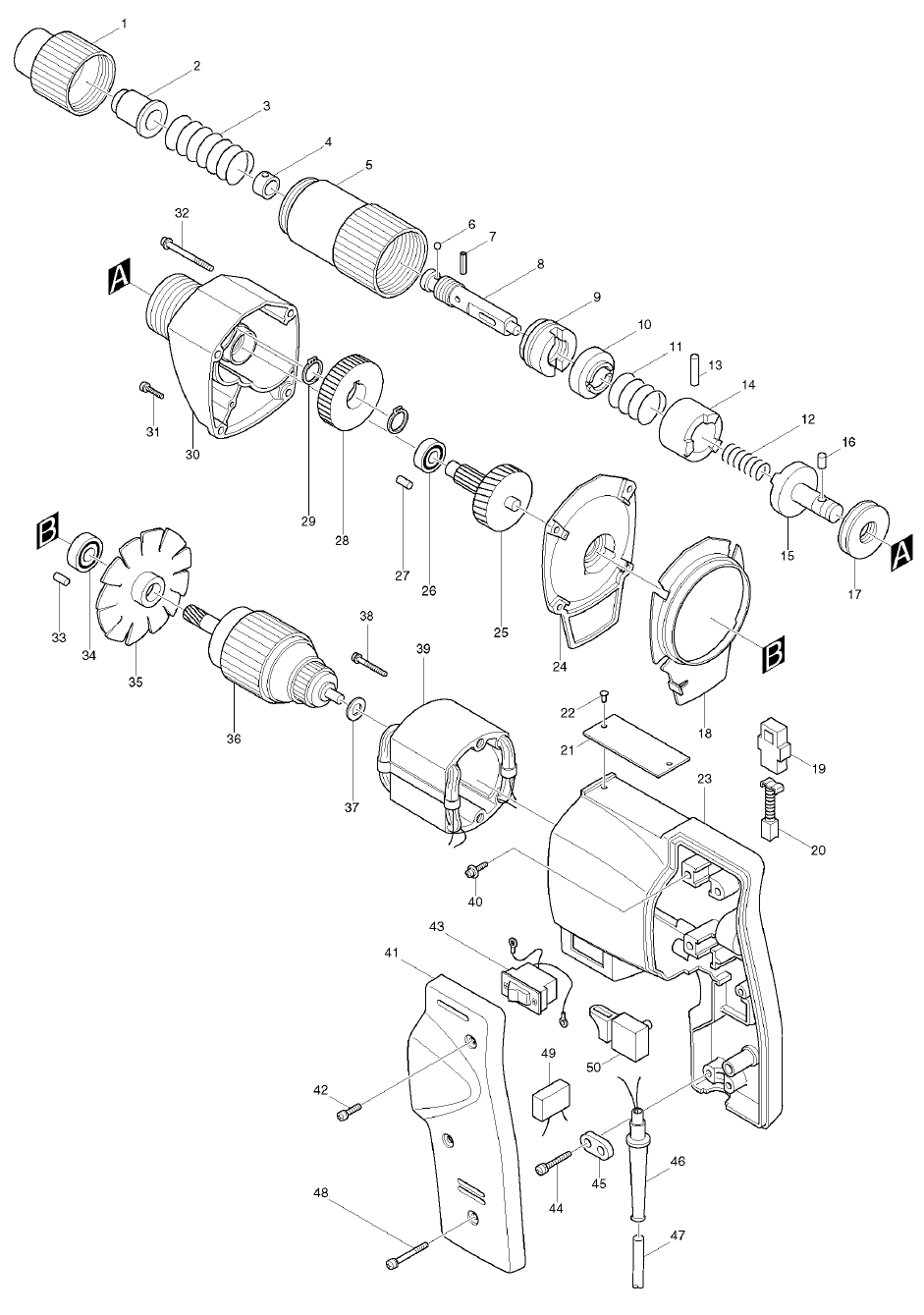

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	323075-5	FRONT COVER, 6701B	$10.43
3	231017-4	COMP. SPRING 15, 6701B	$0.90
4	232050-9	LEAF SPRING, 6820V	$1.48
5	323073-9	CLUTCH COVER, 6701B	$18.90
6	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
7	951060-4	SPRING PIN 3-14, 3707FC	$0.86
9	313003-8	ADJUSTING NUT, 6701B	$8.12
10	313004-6	THRUST COLLAR, 6701B	$5.92
11	231018-2	COMP. SPRING 17, 6701B	$1.34
12	231271-0	COMP. SPRING 4, 5014NB	$1.63
13	256010-7	PIN 5, 6701B	$1.59
14	223001-3	CLUTCH CAM, 6701B	$14.94
15	223002-1	CLUTCH SHAFT, 6701B	$16.04
16	256009-2	PIN 4.5, 9030	$1.48
17	212110-3	T.N. BEARING 1224, HR2410	$11.75
19	643551-6	BRUSH HOLDER, JR3000V	$1.63
22	953106-2	RIVET 0-5, HM1500	$0.49
24	156077-4	GEAR HOUSING COVER, 6701(B)	$13.84
25	226029-0	GEAR 9-39, 6701B	$35.70
26	211016-2	B. BEARING 626LLB, 6300LR	$10.98
28	221023-7	S. GEAR 54, 6701B	$12.08
29	961052-5	RETAINING RING S-12, 9218PBL	$0.86
30	156060-1	GEAR HOUSING, 6701B	$25.17
31	911146-6	P.H. SCREW M4X25, 4200H	$0.53
32	911176-7	P.H. SCREW M4X50, 6000R	$1.48
33	263002-9	RUBBER PIN 4, 5007NK	$0.86
34	211031-6	BALL BEARING 608LLB, 9227C	$10.98
35	241803-5	FAN, 6801DBV	$5.92
37	261008-1	FIBER WASHER 6, 6013BR	$1.01
39	625032-2	FIELD, 6701B	$23.85
40	911124-6	P.H. SCREW M4X14, 6402	$0.86
41	411196-6	HANDLE COVER, 6801B	$8.89
42	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
44	911128-8	P.H. SCREW M4X16, 1902	$1.48
45	687001-1	STRAIN RELIEF, 6013BR	$0.97
46	682502-4	CORD GUARD 8-85, HP2010N	$2.51
46	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
48	911158-9	P.H. SCREW M4X30, 9045B	$0.86
49	645105-5	NOISE SUPPRESSOR, HK1800	$2.95
50	651232-8	SWITCH, 9218SB	$10.43
400	784203-1	#2 PHILLIPS BIT, 2-5/8, 6095D	$3.40
