Makita 6510PB Electric Drill Parts

Makita 6510PB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

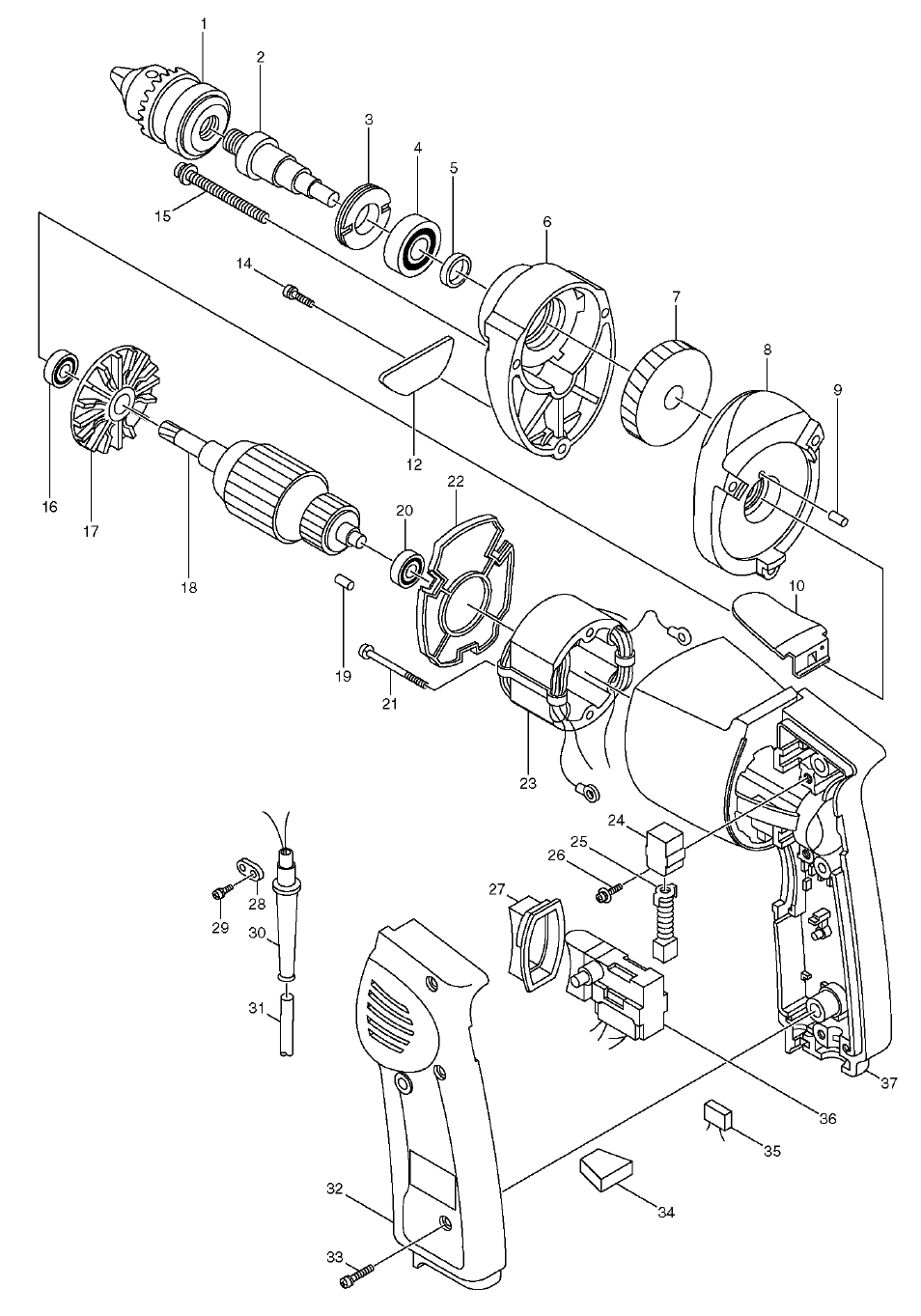

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	192879-4	DRILL CHUCK, HP1030	$35.70
2	323686-6	SPINDLE, 6500PB (TYPE 2)	$10.43
3	285804-3	BEARING RETAINER 19-34, 6510LVR	$3.06
4	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
5	257053-2	RING 15, 6510LVR	$1.63
6	411355-2	GEAR HOUSING, 6500PB	$8.89
7	221621-7	HELICAL GEAR 63, 6510PB	$18.79
10	343693-3	HOOK, 6805BV,T2	$4.49
14	911168-6	P.H. SCREW M4X40, 6905B	$0.86
15	911178-3	P.H. SCREW M4X50, 6302	$1.19
17	241802-7	FAN 58, 6510LVR	$4.49
18	511322-8	ARMATURE ASS'Y, 115V, 6510PB	$88.30
19	263002-9	RUBBER PIN 4, 5007NK	$0.86
20	211028-5	B. BEARING 627LB, 6510LVR	$8.78
21	911175-9	P.H. SCREW M4X45, 6510LVR	$1.48
24	643552-4	BRUSH HOLDER, BO5012K	$1.63
25	191627-8	CARBON BRUSH CB-64,JR3000V	$4.93
26	911124-6	P.H. SCREW M4X14, 6402	$0.86
27	411852-8	SWITCH COVER, 6805BV	$1.63
28	687001-1	STRAIN RELIEF, 6013BR	$0.97
28	687002-9	STRAIN RELIEF, 9217SPC	$0.97
29	911133-5	P.H. SCREW M4X18, N9501B	$0.86
30	682502-4	CORD GUARD 8-85, HP2010N	$2.51
30	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
33	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
34	421161-7	RUBBER PLATE, 6500PB (T3)	$1.23
35	645200-1	NISE SURPRESSOR	$3.61
36	651315-4	SWITCH, 6300TBW	$28.15
37	156981-7	MOTOR HOUSING, 8410B	$18.02
400	763415-9	CHUCK KEY, DA301DW	$6.80
401	411780-7	KEY HOLDER,6402	$1.26
