Makita 6501 Electric Drill Parts

Makita 6501 Parts

1/4 Inch, 2.1 AMP, 4,500 RPM Drill

Download Schematic

Time to buy a new tool?

Makita 6501

1/4 Inch, 2.1 AMP, 4...

$79.99

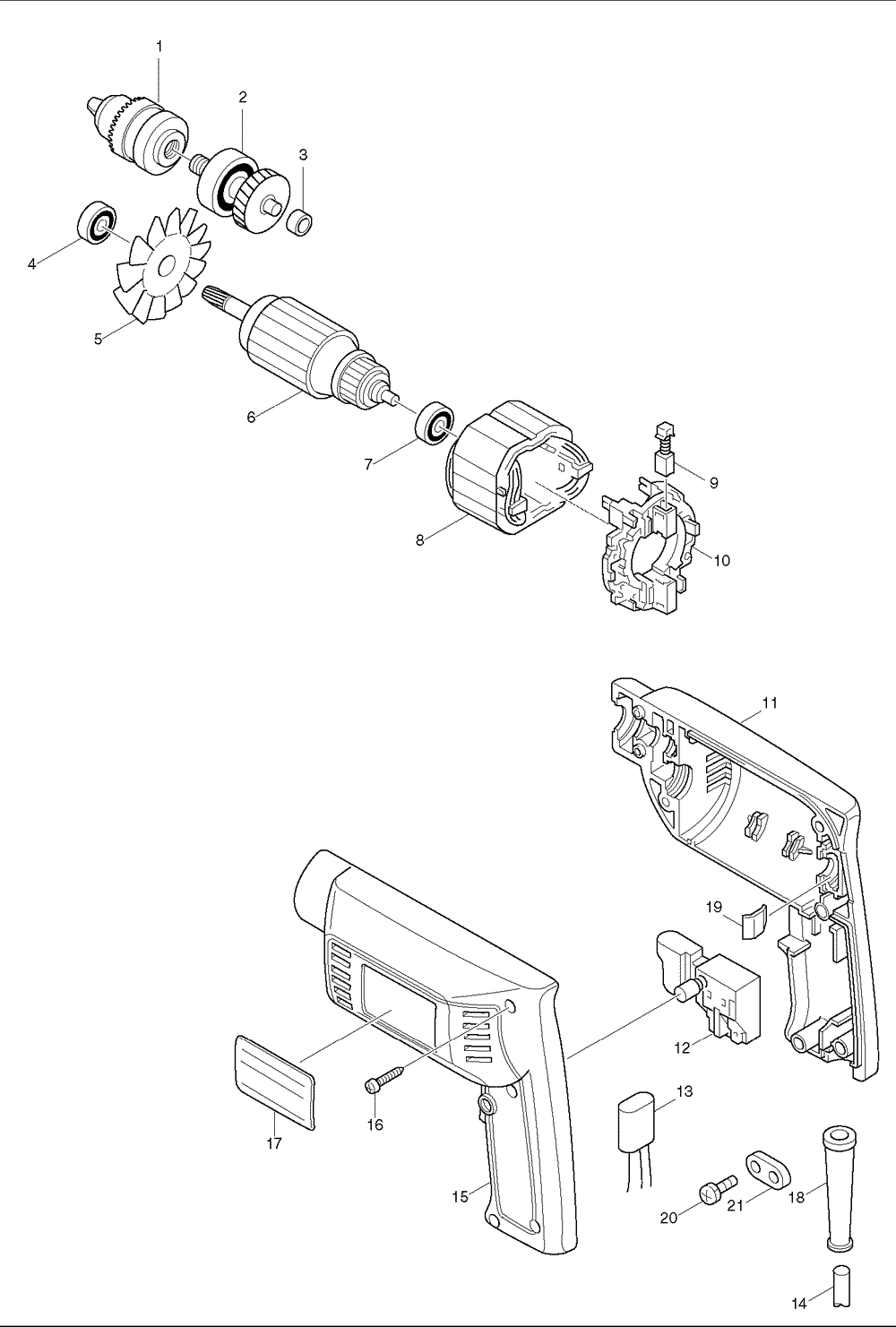

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
6	517031-7	ARMATURE ASS'Y 115, 6501	$55.80
10	632073-1	BRUSH RING, 6501	$8.78
2	153178-9	GEAR COMPLETE, 6501	$28.15
3	214017-9	P. BEARING 5, 6043D	$1.26
14	664424-0	CORD (2X18X8 SJT), 3621	$16.04
4	211016-2	B. BEARING 626LLB, 6300LR	$10.98
5	241508-7	FAN	$2.51
6	517031-7	ARMATURE ASS'Y 115, 6501	$55.80
7	211016-2	B. BEARING 626LLB, 6300LR	$10.98
8	633031-0	FIELD, 6501	$21.21
9	194970-4	CARBON BRUSH 70, N9514B	$5.92
10	632073-1	BRUSH RING, 6501	$8.78
11	183209-0	HOUSING SET,6501	$21.10
12	651268-7	SWITCH, 6501	$9.66
14	664002-6	CORD	$9.22
14	664424-0	CORD (2X18X8 SJT), 3621	$16.04
14	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
15	183209-0	HOUSING SET,6501	$21.10
16	265874-8	TAPPING SCREW 4X20, 6501	$0.86
17	856067-4	NAME PLATE, 6501	$1.12
18	682502-4	CORD GUARD 8-85, HP2010N	$2.51
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	232100-0	LEAF SPRING, 6501	$2.07
20	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
21	687063-9	STRAIN RELIEF, 4323K	$1.26
400	286224-4	CAP 12, 6501	$0.97
402	343525-4	STOPPER POLE RETAINER, 6501	$1.63
403	924221-9	WING BOLT M5X18, 6501	$1.74
404	763418-3	CHUCK KEY, 6012HDW	$4.40
405	411780-7	KEY HOLDER,6402	$1.26
5001	810134-9	CAUTION LABEL, 3709	$0.93
