Makita 6410 Electric Drill Parts

Makita 6410 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

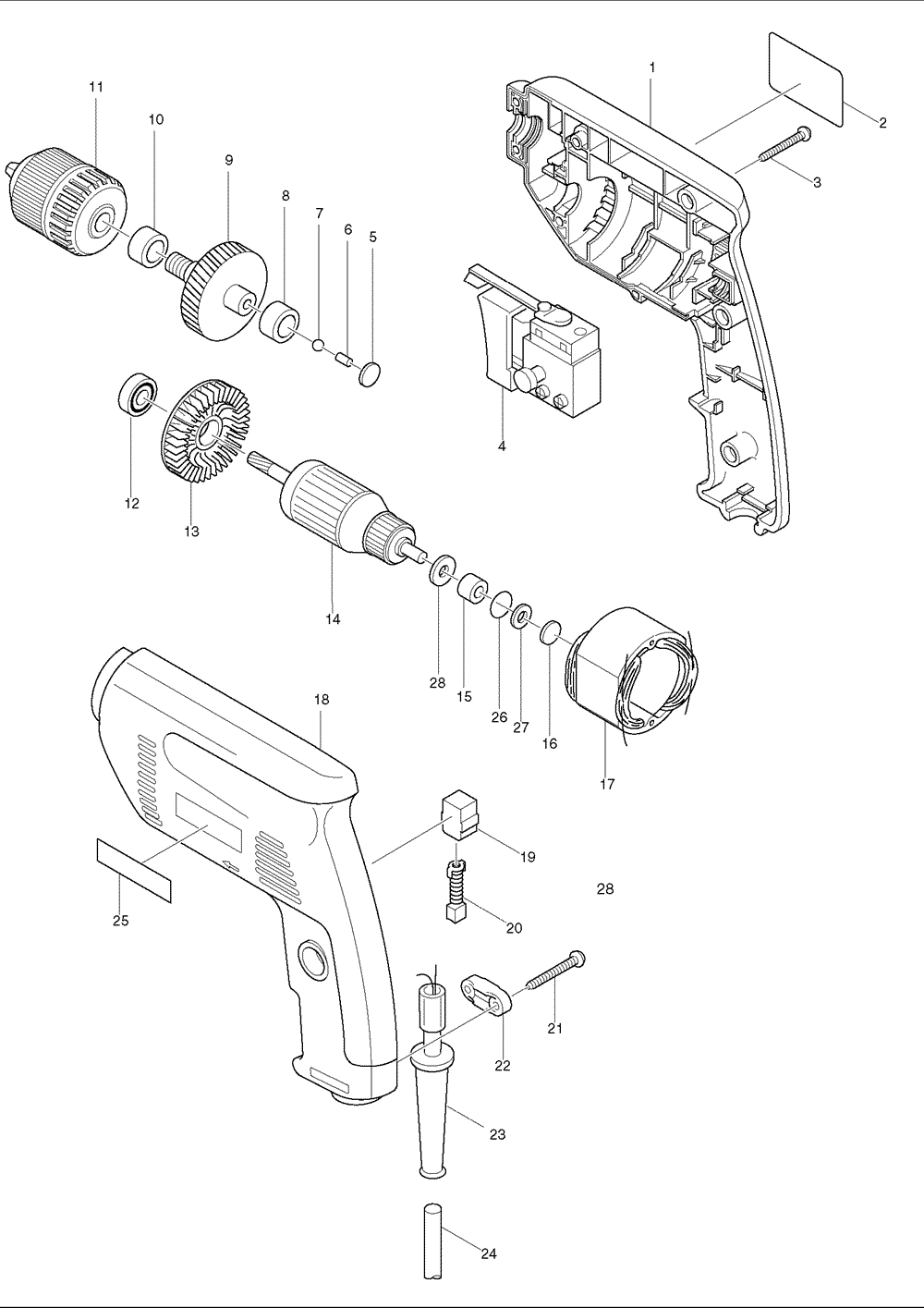

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182904-9	HOUSING SET,6410	$23.19
2	858922-6	NAME PLATE, 6410	$1.21
3	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
5	344418-8	PLATE 12, 6410	$0.75
6	256251-5	PIN 4, HP2050F	$1.19
7	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
8	214114-1	PLANE BEARING 12, 6410	$1.63
9	153245-0	GEAR COMPLETE,6410-T1	$11.53
9	193050-3	GEAR CPL REPAIR SET, 6410	$13.84
10	214114-1	PLANE BEARING 12, 6410	$1.63
12	211033-2	B. BEARING 608LB, 5091D	$8.78
13	241881-5	FAN 52, 6904VH	$4.16
14	517181-8	ARMATURE ASSY 115V, 6410	$52.70
15	214014-5	P. BEARING 6, 8400DW	$1.63
16	344418-8	PLATE 12, 6410	$0.75
17	621656-2	FIELD 115V, 6410	$17.03
18	182904-9	HOUSING SET,6410	$23.19
19	643552-4	BRUSH HOLDER, BO5012K	$1.63
21	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
22	687063-9	STRAIN RELIEF, 4323K	$1.26
23	682502-4	CORD GUARD 8-85, HP2010N	$2.51
23	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
24	664002-6	CORD	$9.22
24	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
25	819063-3	MAKITA LABEL, DA3010F	$0.96
26	213105-9	O RING 11, HP2010N	$0.53
27	443103-1	FELT RING 6, 6410	$0.97
28	261008-1	FIBER WASHER 6, 6013BR	$1.01
