Makita 6406 Electric Drill Parts

Makita 6406 Electric Drill Parts Image

Makita 6406 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

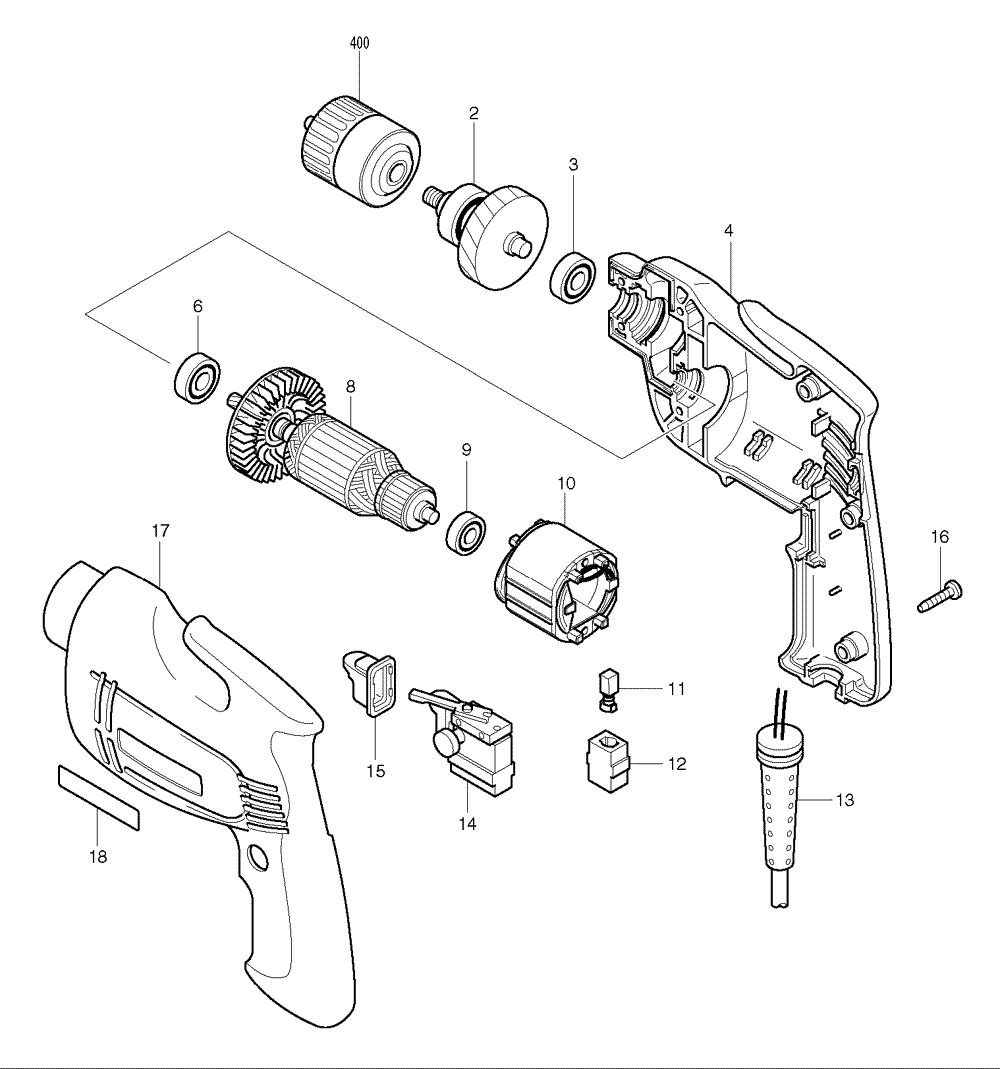

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
2	153115-3		GEAR COMPLETE, 6406	$29.47
3	211030-8		B. BEARING 627Z, 6406	$8.78
4	415511-6		HOUSING SET, 6405	$26.16
6	211030-8		B. BEARING 627Z, 6406	$8.78
9	210010-1		B. BEARING 607Z, 6406	$10.98
10	633281-7		FIELD 115V, 6405	$27.04
12	643552-4		BRUSH HOLDER, BO5012K	$1.63
14	650526-8		SWITCH,6405	$18.35
15	421462-3		DUST COVER, 6405	$3.06
16	265995-6		TAPPING SCREW 4X18, BO4556K	$0.86
17	415511-6		HOUSING SET, 6405	$26.16
18	819063-3		MAKITA LABEL, DA3010F	$0.96
400	763132-1		KEYLESS CHUCK, DA391D	$41.40
400	763154-1		KEYLESS CHUCK, 6095DWBE	$31.20
