Tool Diagram    (Click image to Zoom in) View larger Image

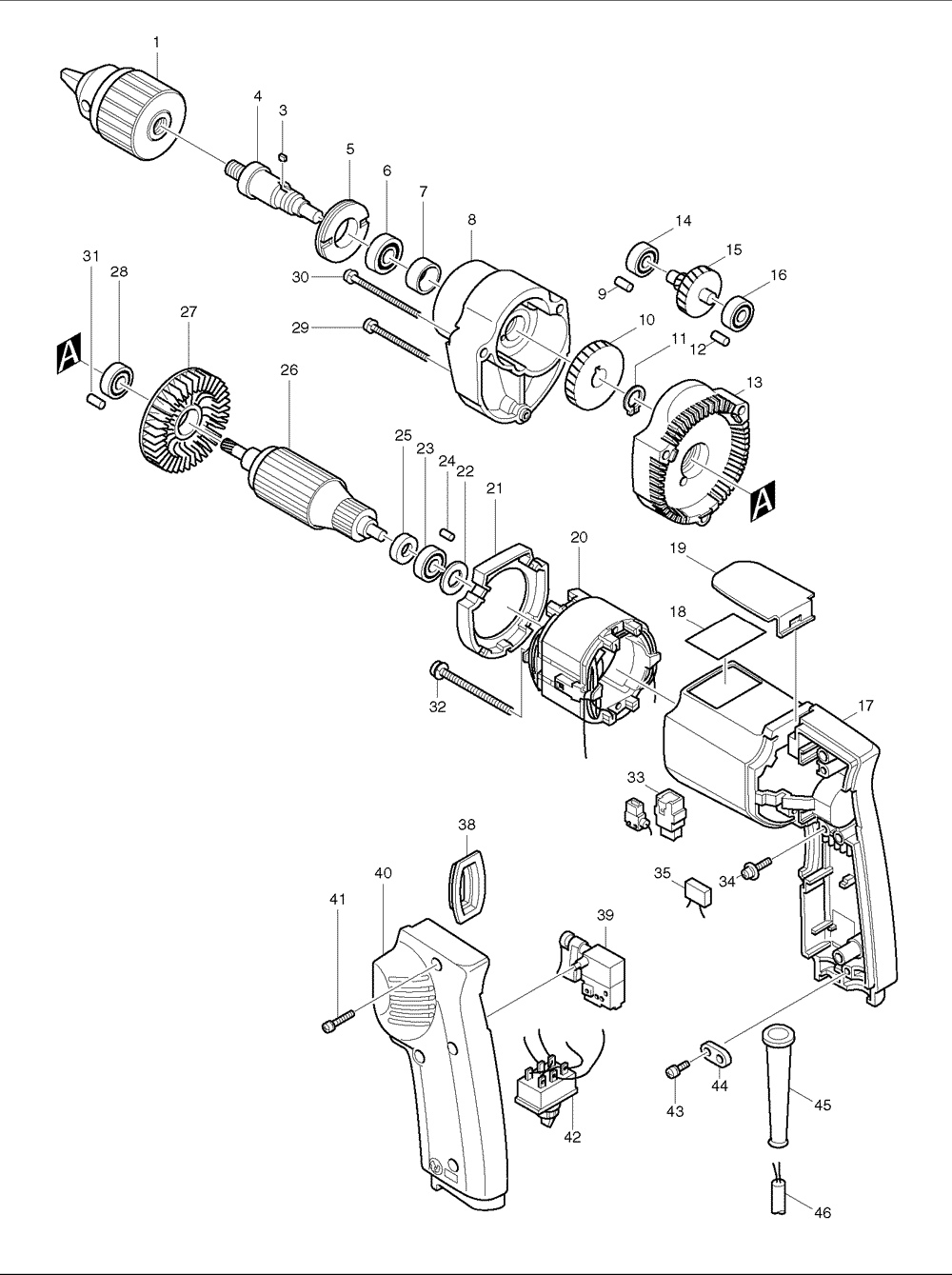

Makita 6403 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
32 911581-8 PAN HEAD SCREW M4X55, 6820V $1.48
3 254011-9 WOODRUFF KEY 4, 9557PB $1.26
4 322301-9 SPINDLE, 6402 (TYPE 2) $18.90
5 285804-3 BEARING RETAINER 19-34, 6510LVR $3.06
6 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
7 257153-8 RING 15, 6402 $3.06
8 157911-1 GEAR HOUSING, 6402 $18.24
9 263002-9 RUBBER PIN 4, 5007NK $0.86
10 221795-4 HELICAL GEAR 46, 6403 $22.20
11 961052-5 RETAINING RING S-12, 9218PBL $0.86
12 263002-9 RUBBER PIN 4, 5007NK $0.86
13 157912-9 GEAR HOUSING COVER, 6402 $16.81
14 211014-6 B. BEARING 606, 6826 $13.07
14 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
15 226111-5 GEAR 15-34, 6403 $32.33
16 211014-6 B. BEARING 606, 6826 $13.07
16 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
17 157725-8 MOTOR HOUSING, 6820V $27.59
19 343407-0 HOOK, 6820V $4.49
20 633361-9 FIELD, 6302 $27.04
21 414594-3 BAFFLE PLATE, 6302H,6303H $1.63
22 253192-6 F. WASHER 14, HR2400 $1.63
23 211028-5 B. BEARING 627LB, 6510LVR $8.78
24 263014-2 RUBBER PIN 4, 9217SPC $1.19
26 511836-7 ARMATURE ASS'Y 115V, 6302H,6303H $71.80
27 241881-5 FAN 52, 6904VH $4.16
28 211031-6 BALL BEARING 608LLB, 9227C $10.98
29 911173-3 P.H. SCREW M4X45, 6906 $1.19
30 911183-0 P.H. SCREW M4X55, 6402 $1.19
31 263002-9 RUBBER PIN 4, 5007NK $0.86
32 911581-8 PAN HEAD SCREW M4X55, 6820V $1.48
33 195005-4 CARBON BRUSH 401, NHP1310 $11.53
34 911124-6 P.H. SCREW M4X14, 6402 $0.86
38 421144-7 DUST COVER, 6510LVR $3.06
40 150621-9 HANDLE COVER, 6820V $10.32
41 911153-9 P.H. SCREW M4X28, JR3000V $0.86
43 911133-5 P.H. SCREW M4X18, N9501B $0.86
44 687002-9 STRAIN RELIEF, 9217SPC $0.97
45 682502-4 CORD GUARD 8-85, HP2010N $2.51
45 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
46 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
46 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
400 763434-5 CHUCK KEY 10, 6302H,6303H $6.00
401 411780-7 KEY HOLDER,6402 $1.26
900 819063-3 MAKITA LABEL, DA3010F $0.96
