Makita 6349D Cordless Drill Parts

Makita 6349D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

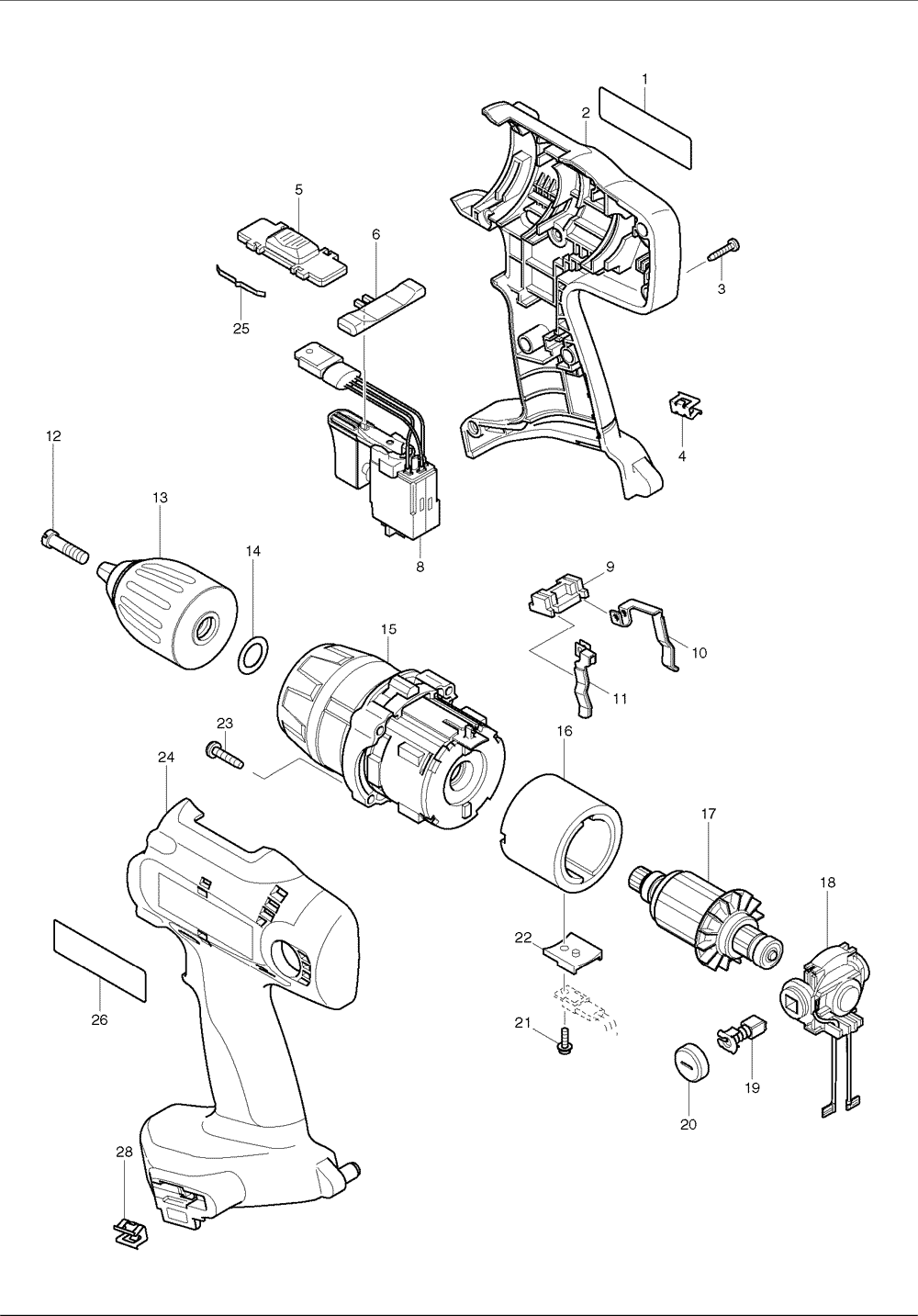

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	860955-9	NAME PLATE, 6349DWDE	$0.71
2	183971-7	HOUSING SET, 6349DWDE	$21.76
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	344391-2	BIT HOLDER, 6233DWA	$0.97
5	125434-7	SPEED CHANGE LEVER ASS'Y, 6349DDWDE	$1.26
6	418753-1	F/R CHANGE LEVER, 8444D	$1.52
8	650559-3	SWITCH, 6339DWDE	$28.15
9	687085-9	HOLDER, 6233DWA	$1.63
10	654168-0	SPRING TERMINAL (+), 6933FD	$4.49
11	654169-8	SPRING TERMINAL (-), 6233DWA	$4.71
12	251464-3	FLAT SCREW M6X22, HP2031	$1.48
13	763191-5	KEYLESS CHUCK 13, BHP451	$45.60
14	253798-0	F. WASHER 13, HP2010N	$1.34
15	125340-6	GEAR ASS'Y, 6339DWDE	$47.53
15	125432-1	GEAR ASS'Y, 6349DWDE	$56.20
16	638376-1	YOKE UNIT, 6339DWDE,6349DWDE	$47.22
17	629831-4	ARMATURE, 6349DWDE	$22.75
18	638375-3	ENDBELL COMPLETE, 6339DWDE	$4.16
20	643807-7	BRUSH HOLDER CAP, 6339DWDE	$1.26
21	266282-6	TAPPING SCREW ST3X10, BTW150SA	$0.53
22	689136-4	FET SPACER, 6339DWDE	$1.26
23	266045-0	TAPPING SCREW 4X20, 9046	$1.19
24	183971-7	HOUSING SET, 6349DWDE	$21.76
25	232220-0	LEAF SPRING, 6339DWDE	$0.86
28	344391-2	BIT HOLDER, 6233DWA	$0.97
1001	122712-6	GRIP ASS'Y, 6339DW	$16.20
1002	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	DC1804	N/A	$93.00
1004	193159-1	BATTERY 1834 18V NIMH, 8443DWDE	$152.20
1007	324362-5	HOOK, 6935FD	$4.16
5001	810135-7	CAUTION LABEL, 6391DWPLE	$0.64
