Makita 6343D Cordless Drill Parts

Makita 6343D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

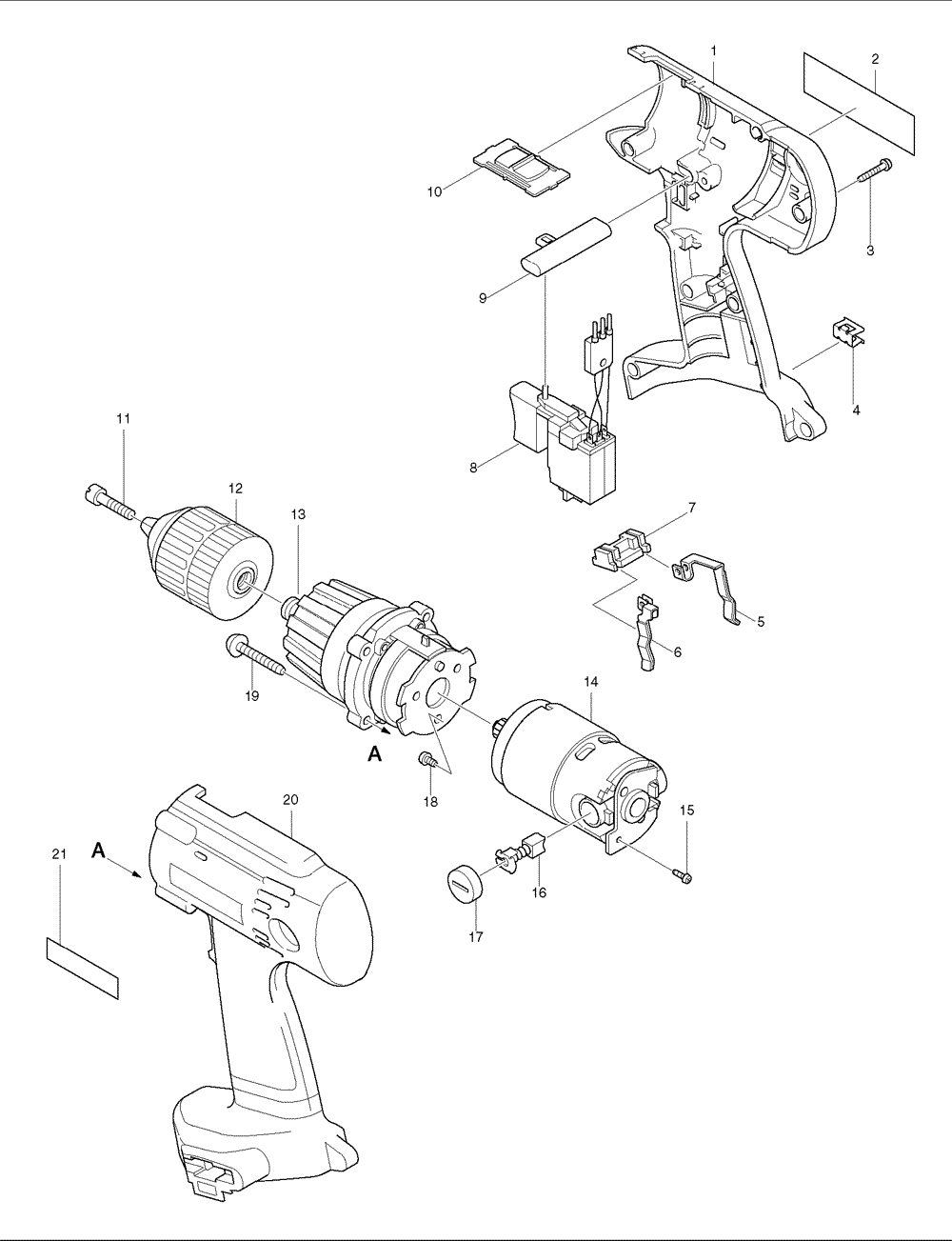

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	183032-3	HOUSING SET, 6343DWAE	$21.76
2	859863-9	NAME PLATE, 6343D	$2.74
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	344391-2	BIT HOLDER, 6233DWA	$0.97
5	654168-0	SPRING TERMINAL (+), 6933FD	$4.49
6	654169-8	SPRING TERMINAL (-), 6233DWA	$4.71
7	687085-9	HOLDER, 6233DWA	$1.63
8	651968-9	SWITCH, 6343DWA	$32.13
9	416079-5	F/R CHANGE LEVER, 6933FD	$1.63
10	125091-1	SPEED CHANGE LEVER, 6343DWAE	$1.63
11	251464-3	FLAT SCREW M6X22, HP2031	$1.48
11	251465-1	F.H. SCREW M6X32, BDF460SH	$3.61
12	192957-0	KEYLESS DRILL CHUCK 13, DP4001	$68.20
13	125105-6	GEAR ASSEMBLY, 6216DWBE	$54.90
14	629729-5	DC MOTOR, 6343DWA	$67.10
15	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
17	643954-4	HOLDER CAP, BGA452	$1.52
18	266134-1	T. SCREW ST 4X8,6233DWA	$0.53
20	183032-3	HOUSING SET, 6343DWAE	$21.76
21	819063-3	MAKITA LABEL, DA3010F	$0.96
1001	122576-8	STOPPER POLE ASS'Y, BHP451	$4.40
1003	414938-7	BATTERY COVER, 6222DWE	$2.20
1006	251812-6	SCREW M5X10, 1912B	$1.96
1008	921919-9	BOLT M8X10, HP2030	$3.61
1009	931202-6	HEX NUT M5, HR2410	$0.79
1010	193159-1	BATTERY 1834 18V NIMH, 8443DWDE	$152.20
5001	414938-7	BATTERY COVER, 6222DWE	$2.20
5005	193159-1	BATTERY 1834 18V NIMH, 8443DWDE	$152.20
