Makita 6317D Cordless Drill Parts

Makita 6317D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

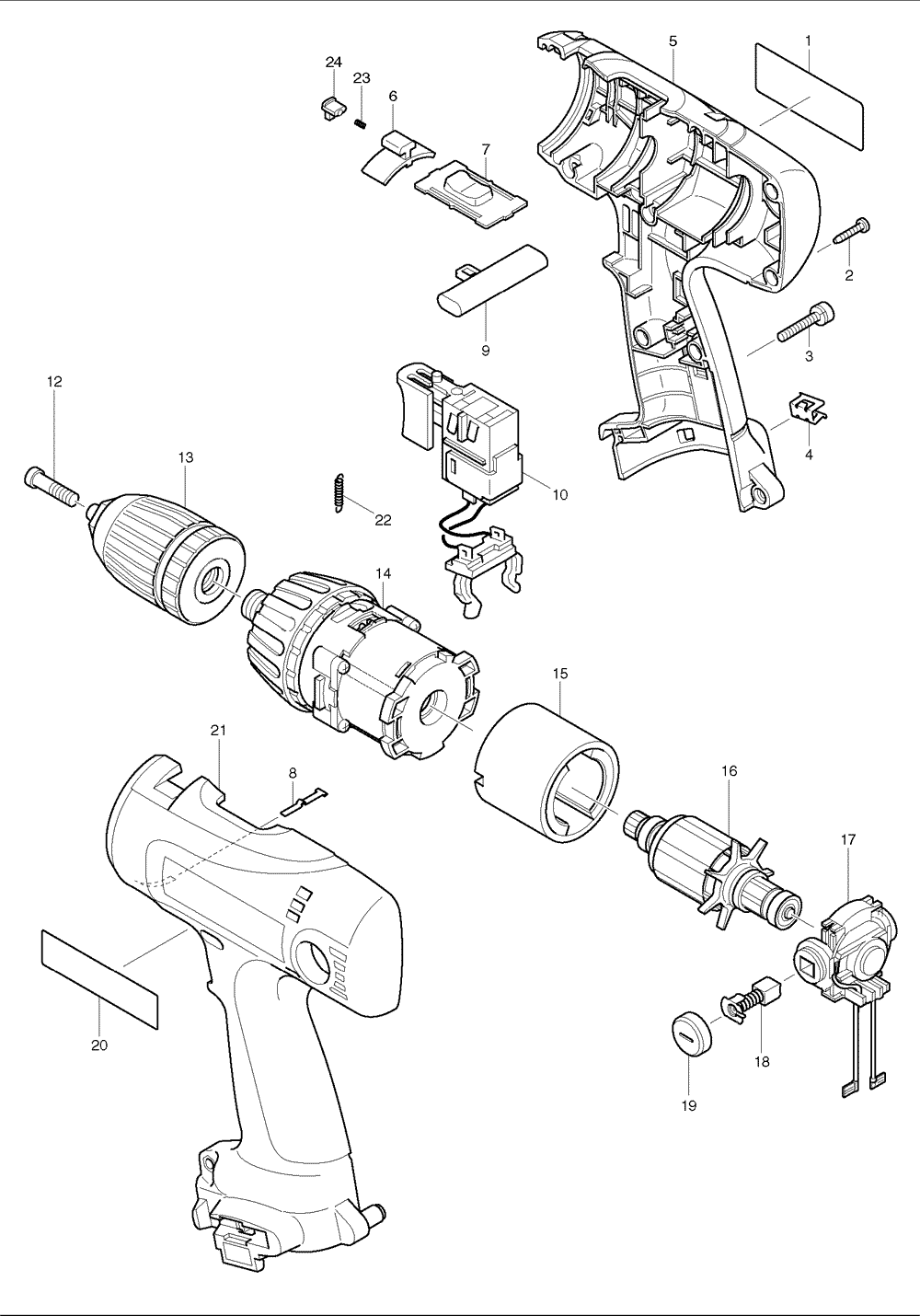

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	853706-7	NAME PLATE, 6317D	$2.51
2	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
3	911143-2	P.H. SCREW M4X22, 6211D	$0.86
4	344391-2	BIT HOLDER, 6233DWA	$0.97
5	183440-8	HOUSING SET,6217DWDE	$18.35
5	188783-3	HOUSING SET, 6317D	$18.35
6	417879-6	MODE CHANGE LEVER, 6347DWDE	$1.52
7	125102-2	SPEED CHANGE LEVER ASS'Y, BDF460SH	$1.52
7	125310-5	SPEED CHANGE LEVER ASS'Y, BDF453HWL	$1.12
8	232182-2	LEAF SPRING, 6096DWE	$2.07
9	417880-1	F/R CHANGE LEVER, 6317DWDE	$1.26
10	638144-2	SWITCH UNIT, 6217DWDE	$27.48
12	251464-3	FLAT SCREW M6X22, HP2031	$1.48
14	125238-7	GEAR ASSY, 6217DWDE	$44.57
14	125574-1	GEAR ASS'Y, 6347D	$44.57
15	638138-7	YOKE UNIT, 6217DWDE	$11.42
16	619116-6	ARMATURE COMPLETE, 6217DWDE	$25.17
17	638139-5	ENDBELL CPL., 6217DWDE	$4.16
19	643929-3	HOLDER CAP, BPB180	$1.63
20	819064-1	MAKITA MARK, 5402NA	$1.26
21	183440-8	HOUSING SET,6217DWDE	$18.35
21	188783-3	HOUSING SET, 6317D	$18.35
22	231829-5	TENSION SPRING 2, 6217DWDE	$0.86
23	233353-4	COMP. SPRING 2, 6217DWDE	$0.79
24	418095-3	LOCK LEVER, 6347DWDE	$0.97
1001	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	183763-4	PLASTIC TOOL CASE, 6217DWDE	$40.20
1005	193157-5	BATTERY 1234 12V NIMH,6217DWDE	$126.20
