Makita 6310 Electric Drill Parts

Makita 6310 Electric Drill Parts Image

Makita 6310 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

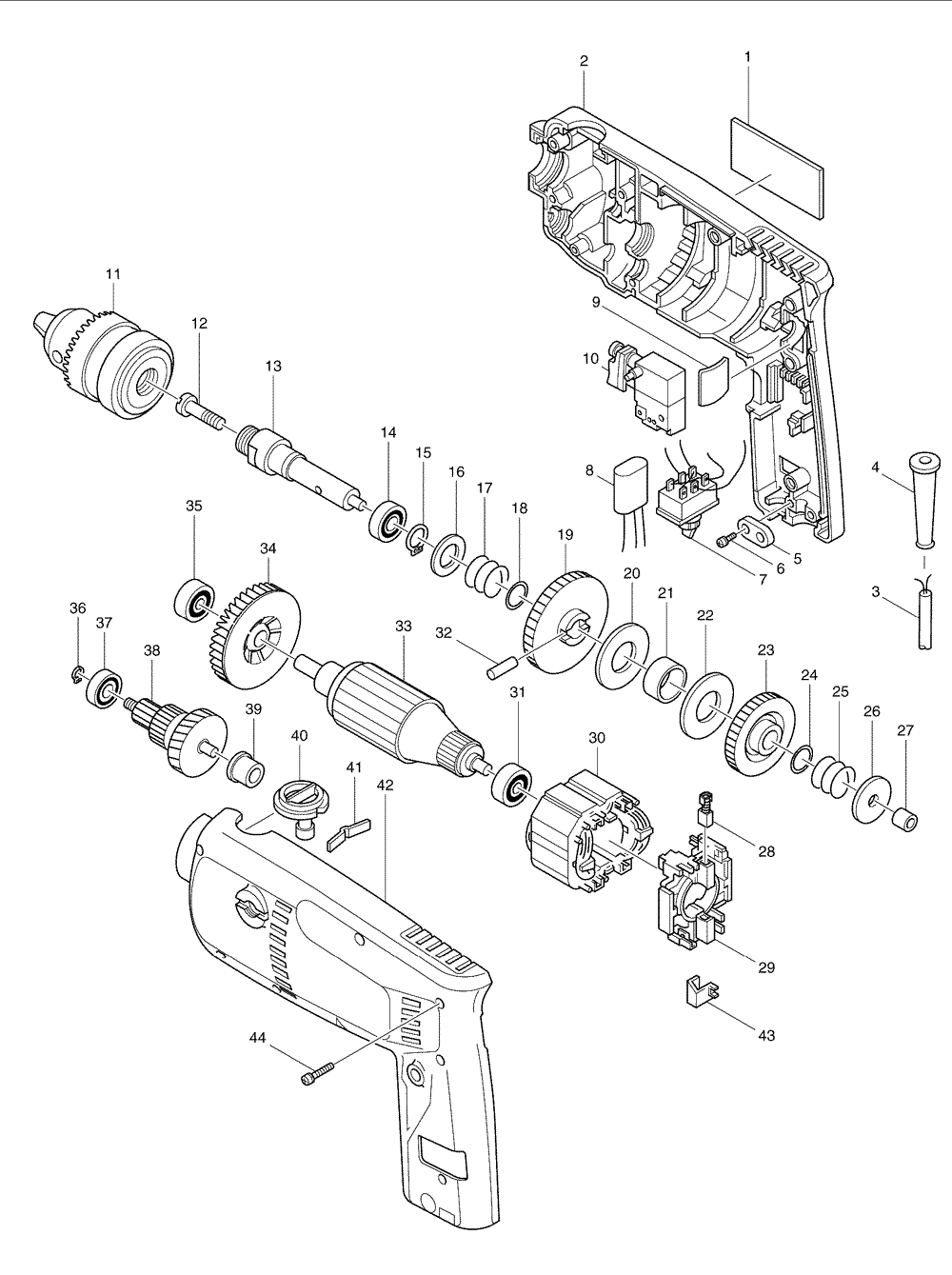

Makita 6310 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 650206-6 SWITCH, JR3000V $23.96
1 856175-1 NAME PLATE, 6310 $1.12
2 182202-1 HOUSING SET, 6310 $46.92
4 682502-4 CORD GUARD 8-85, HP2010N $2.51
4 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
5 687001-1 STRAIN RELIEF, 6013BR $0.97
6 911133-5 P.H. SCREW M4X18, N9501B $0.86
7 651478-6 SWITCH, REVERSING, 6302H $13.84
9 232104-2 LEAF SPRING, 6310 . $2.07
10 650205-8 SWITCH, 8401 $17.47
12 251425-3 FLAT SCREW M6X22, NHP1310 $1.48
13 322212-8 SPINDLE, 6310 $27.59
14 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
15 961055-9 RETAINING RING S-15, 5007F $1.19
16 253781-7 F. WASHER 15, 6310 $2.18
17 231458-4 COMP. SPRING 18, 6310 $1.48
18 253343-1 THIN WASHER 18, 6310 $3.72
19 221983-3 SPUR GEAR 53, 6310 $29.47
20 253342-3 THIN WASHER 18, 6310 $5.26
21 257155-4 RING 18, 6310 $3.06
22 253342-3 THIN WASHER 18, 6310 $5.26
23 221982-5 SPUR GEAR 42, 6310 $26.72
24 253343-1 THIN WASHER 18, 6310 $3.72
25 231458-4 COMP. SPRING 18, 6310 $1.48
26 253196-8 F. WASHER 6, 2012 $2.18
27 214004-8 P. BEARING 6, GV5010 $1.26
28 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
29 632082-0 TERMINAL BASE COMP. 55B, 6310 $13.18
30 633041-7 FIELD 115V, 6310 $24.95
32 256188-6 PIN 5, 6310 $1.48
33 511721-4 ARMATURE ASS'Y 115V, 6310 $94.00
34 241844-1 FAN, 6310 $3.61
36 961002-0 RETAINING RING S-6, 6012HDW $0.53
37 211016-2 B. BEARING 626LLB, 6300LR $10.98
38 226090-7 GEAR COMPLETE 9-20-45, 6310 $44.88
39 152329-1 NEEDLE BEARING 609 COMP., 6310 $8.78
40 414223-8 SHIFTER, 6310 $3.06
41 232101-8 LEAF SPRING, 6310 $2.07
42 182202-1 HOUSING SET, 6310 $46.92
43 686016-5 TERMINAL CAP, 6310 $1.26
44 911153-9 P.H. SCREW M4X28, JR3000V $0.86
400 152491-2 GRIP, GV5000 $4.49
401 251851-6 KNOB, NHP1030 $4.20
402 286226-0 CAP 20, 6310 $0.97
404 164549-5 STOPPER HOLDER, NHP1030 $8.20
405 763432-9 CHUCK KEY S13, NHP1310-T2 $5.80
406 410102-8 KEY HOLDER, 6013BR $1.26
