Makita 6261DWPE Cordless Drill Parts

Makita 6261DWPE Cordless Drill Parts Image

Makita 6261DWPE Parts

Download Schematic

Time to buy a new tool?

Makita 6261DWPE

9.6 Volt 3/8 Inch Co...

$117.99

Free Shipping

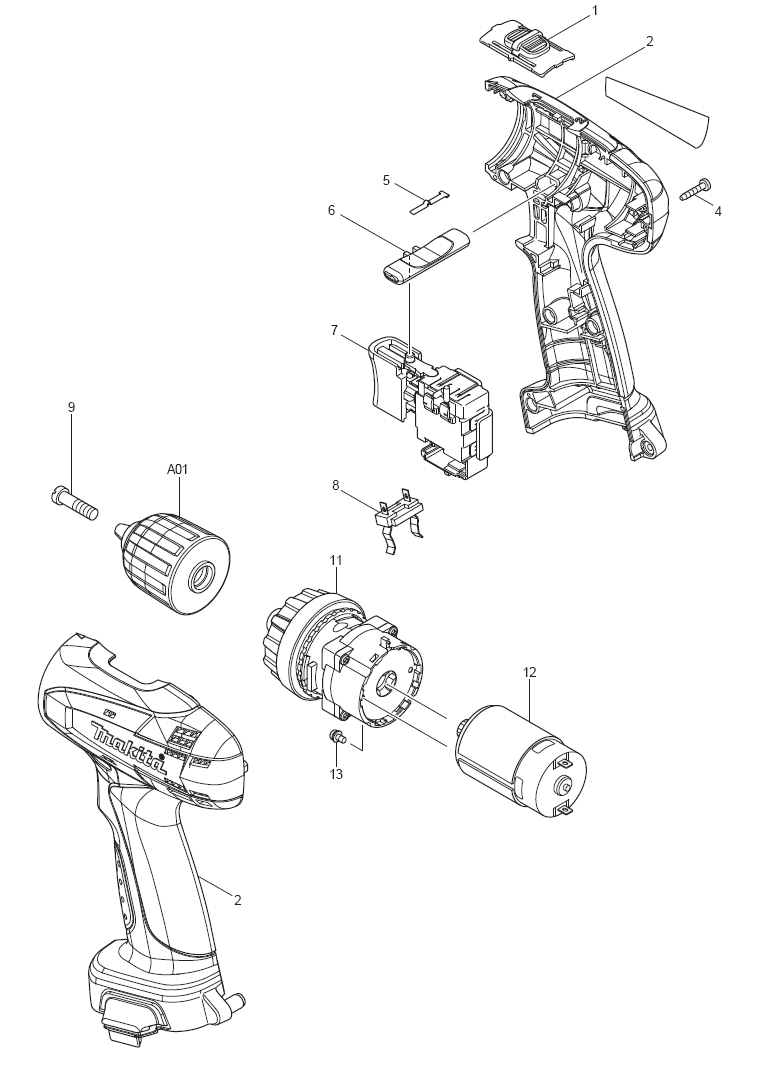

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	125310-5		SPEED CHANGE LEVER ASS'Y, BDF453HWL	$1.12
1	231433-0		COMP. SPRING 4, 6233D	$0.86
4	266130-9		TAPPING SCREW PT3X16, 6233DWA	$0.86
5	232182-2		LEAF SPRING, 6096DWE	$2.07
6	450584-2		F/R CHANGE LEVER, 6391DWPLE	$0.90
8	643909-9		BATTERY HOLDER, DA392D	$4.49
9	251468-5		F.H. SCREW M6X22, BHP451	$0.86
11	125482-6		GEAR ASS'Y, 6281DWPE	$19.45
12	629815-2		DC MOTOR, 6260DWPE	$17.25
13	911003-8		P.H. SCREW M3X6, 6261DWPLE	$0.86
A02	DC1804		N/A	$93.00
A04	414938-7		BATTERY COVER, 6222DWE	$2.20
A05	784636-0		PHILLIPS/SLOTTED BIT 2-65, 6222DWE	$2.40
A06	419360-3		HANDLE (TOOL CASE), 5007NK	$2.84
A06	163455-1		LATCH, 5007NK	$2.84
