Makita 6260DWPE Cordless Drill Parts

Makita 6260DWPE Cordless Drill Parts Image

Makita 6260DWPE Parts

Download Schematic

Time to buy a new tool?

Makita 6260DWPE

9.6V 3/8 inch Cordle...

$108.99

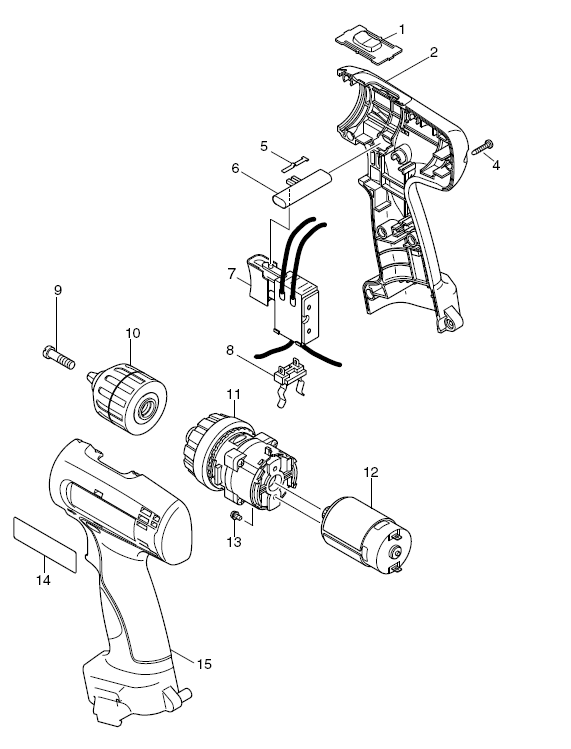

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	125102-2		SPEED CHANGE LEVER ASS'Y, BDF460SH	$1.52
4	266130-9		TAPPING SCREW PT3X16, 6233DWA	$0.86
5	232182-2		LEAF SPRING, 6096DWE	$2.07
6	417283-9		F/R CHANGE LEVER, 8390D	$2.84
7	650556-9		SWITCH C3NA-1M1, 6260DWPE	$20.33
8	643909-9		BATTERY HOLDER, DA392D	$4.49
9	251468-5		F.H. SCREW M6X22, BHP451	$0.86
11	125237-9		GEAR ASS'Y, 6260DWPE	$24.84
12	629815-2		DC MOTOR, 6260DWPE	$17.25
13	911003-8		P.H. SCREW M3X6, 6261DWPLE	$0.86
14	819001-5		MAKITA LABEL, 9005B	$0.96
10	763185-0		KEYLESS DRILL CHUCK 10,6260DWPE	$24.20
A01	414938-7		BATTERY COVER, 6222DWE	$2.20
A02	DC1804		N/A	$93.00
A03	784636-0		PHILLIPS/SLOTTED BIT 2-65, 6222DWE	$2.40
A04	824635-1		PLASTIC TOOL CASE,6227D,6991DWDE	$40.20
A05	193979-3		BATTERY PA09,9.6V,6260DWPE	$68.20
