Makita 6216D Cordless Drill Parts

Makita 6216D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

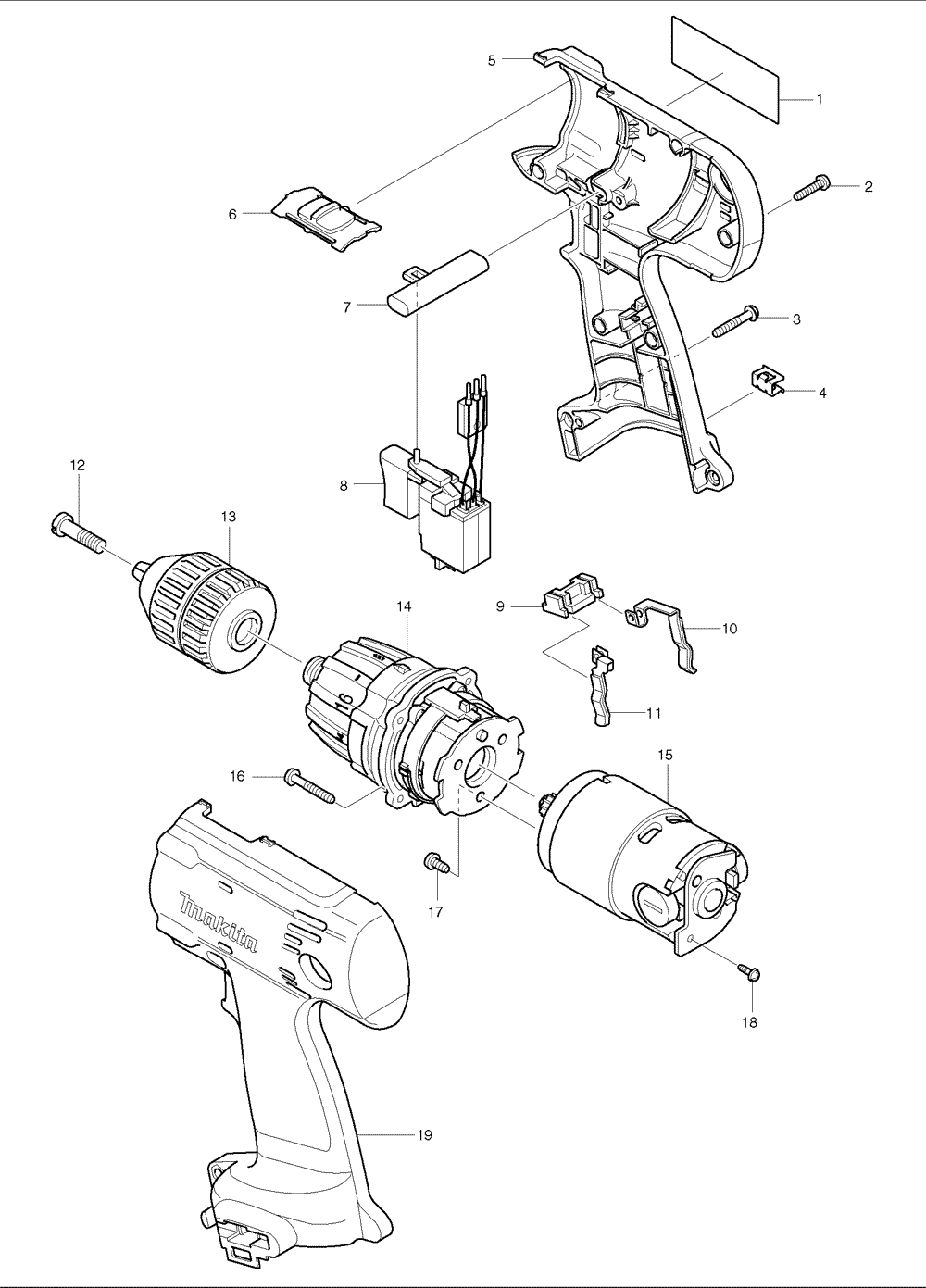

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	851477-0	NAME PLATE, 6216D	$2.51
2	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
3	911143-2	P.H. SCREW M4X22, 6211D	$0.86
4	344391-2	BIT HOLDER, 6233DWA	$0.97
5	183079-7	HOUSING SET, 6216D	$19.78
6	125091-1	SPEED CHANGE LEVER, 6343DWAE	$1.63
7	416079-5	F/R CHANGE LEVER, 6933FD	$1.63
8	651939-6	SWITCH, 6233DWA	$46.41
9	687085-9	HOLDER, 6233DWA	$1.63
10	654168-0	SPRING TERMINAL (+), 6933FD	$4.49
11	654169-8	SPRING TERMINAL (-), 6233DWA	$4.71
12	251464-3	FLAT SCREW M6X22, HP2031	$1.48
13	193690-7	KEYLESS DRILL CHUCK 10, 6216D	$41.40
14	125105-6	GEAR ASSEMBLY, 6216DWBE	$54.90
15	629733-4	DC MOTOR 12V, 6216D	$65.50
17	266134-1	T. SCREW ST 4X8,6233DWA	$0.53
18	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
19	183079-7	HOUSING SET, 6216D	$19.78
1003	343579-1	SET PLATE, 6211D	$3.06
1004	414938-7	BATTERY COVER, 6222DWE	$2.20
1007	192598-2	BATTERY 1222, 12VDC 2.0AH,6213DWAE	$96.20
1007	193157-5	BATTERY 1234 12V NIMH,6217DWDE	$126.20
