Makita 6211D Cordless Drill Parts

Makita 6211D  Cordless Drill Parts Image

Makita 6211D Parts
Time to buy a new tool?

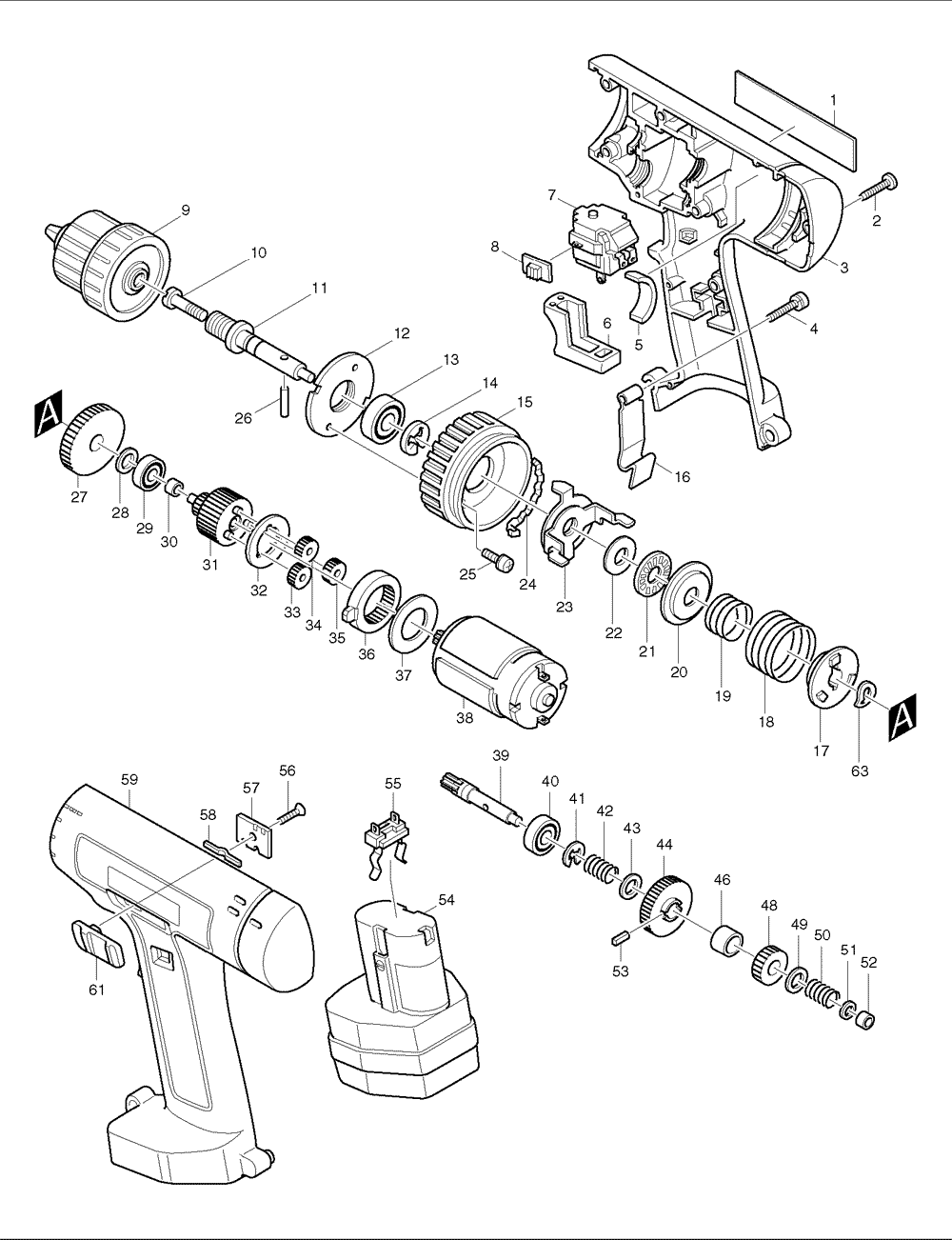

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1004 911101-8 P.H. SCREW M4X6, LS1020 $0.53
1 857128-3 N/A $0.99Disc
2 265925-7 TAPPING SCREW BT4X20, 6201DW $0.53
3 182878-4 HOUSING SET, 6311D $32.23
4 911143-2 P.H. SCREW M4X22, 6211D $0.86
5 835244-1 SPONGE 14-72, 6201DW $1.26
6 415671-4 SWITCH LEVER, 6201DW $1.63
7 650500-6 SWITCH, 6903VDWE $40.18
7 651909-5 SWITCH, 6903VD $38.25
8 414740-8 LEVER, 6222DWE $3.06
9 763102-090A N/A $0.99Disc
10 251451-2 P.H. SCREW M5X22, DA391DW $1.96
11 322536-2 SPINDLE, 6201DW $18.90
12 285673-2 BEARING RETAINER 14,6201DW $4.49
13 211061-7 B. BEARING 6000-2RS, 6222DWE $10.98
13 SE 6000-2RS This item will be shipped Free Superior Electric SE 6000-2RS Replacement Ball B... $7.99
14 961015-1 STOP RING E-9, BO5021 $0.86
15 415013-2 CHANGE RING, 6201DW $7.46
16 343579-1 SET PLATE, 6211D $3.06
17 223090-8 CLUTCH CAM, 6201DW $24.62
18 233044-7 COMPRESSION SPRING 27, 6222DWE $2.07
19 233043-9 COMPRESSION SPRING 22, 6201DW $1.63
20 267705-7 WASHER 10, 6222DWE $4.16
21 216401-4 T.N.GAUGE 1023,6222DWE $4.49
22 253180-3 F. WASHER 10, 6906 $1.63
23 165024-4 SLIDER, 6201DW $10.32
24 343976-1 CAM PLATE, 6201DW $3.06
25 911118-1 P.H. SCREW M4X12, 6221D $0.86
26 256054-7 PIN 4, 6201DW $1.19
27 226250-1 SPUR GEAR 49, 6201DW $18.24
28 267100-1 FLAT WASHER 6, 6201DW $1.63
29 211016-2 B. BEARING 626LLB, 6300LR $10.98
30 214019-5 P. BEARING 4, 6043D $1.26
31 153213-3 GEAR COMPLETE, 6201DW $39.27
32 267098-2 FLAT WASHER 16, 6201DW $2.18
33 226245-4 SPUR GEAR 15, 6201DW $3.17
34 226245-4 SPUR GEAR 15, 6201DW $3.17
35 226245-4 SPUR GEAR 15, 6201DW $3.17
36 226248-8 INTERNAL GEAR 48, 6201DW $13.73
37 253794-8 F. WASHER 18, 6905B $1.63
38 629636-2 DC MOTOR 12V,6211D,6311D $72.00
39 226253-5 SPUR GEAR 8, 6201DW $21.32
40 211031-6 BALL BEARING 608LLB, 9227C $10.98
40 SE 608ZZ This item will be shipped Free Superior Electric SE 608ZZ Replacement Ball Bear... $7.99
41 961013-5 STOP RING E-7, JN3200 $0.53
42 233041-3 COMPRESSION SPRING 8, 6201DW $0.86
43 253339-2 THIN WASHER, 6201DW $1.34
44 226292-5 SPUR GEAR 40, 6211D $13.73
45 253346-5 N/A $0.99Disc
46 257178-2 RING 12, 6201DW $3.06
48 226261-6 SPUR GEAR 25, 6201DW $15.27
49 253339-2 THIN WASHER, 6201DW $1.34
50 233041-3 COMPRESSION SPRING 8, 6201DW $0.86
51 267099-0 FLAT WASHER 4, 6201D $1.63
52 214019-5 P. BEARING 4, 6043D $1.26
53 254236-5 KEY 3, 6201DW $1.26
55 643909-9 BATTERY HOLDER, DA392D $4.49
56 265007-5 C.S.H. SCREW M4X12, 6201DW $1.19
57 343987-6 STOPPER, 6201DW $4.49
58 232053-3 LEAF SPRING, HP2030 $0.86
59 182878-4 HOUSING SET, 6311D $32.23
61 415014-0 LEVER, 6201DW $3.06
63 253932-2 W. WASHER 10, 2012 $1.01
1001 343951-7 BELT CLIP, 6201DW $0.99Disc
1002 824428-6 PLASTIC TOOL CASE, 6221DW $0.99Disc
1003 784203-1 #2 PHILLIPS BIT, 2-5/8, 6095D $3.40
1004 911101-8 P.H. SCREW M4X6, LS1020 $0.53
1005 414938-7 BATTERY COVER, 6222DWE $2.20Disc
2001 DC1414 N/A $0.99Disc
2001 DC1290 N/A $0.99Disc
2001 DC1470 N/A $0.99Disc
5005 652718-5 OVER CURRENT RELAY, 6202DWG $7.46
