Makita 6040D Cordless Drill Parts

Makita 6040D Cordless Drill Parts Image

Makita 6040D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

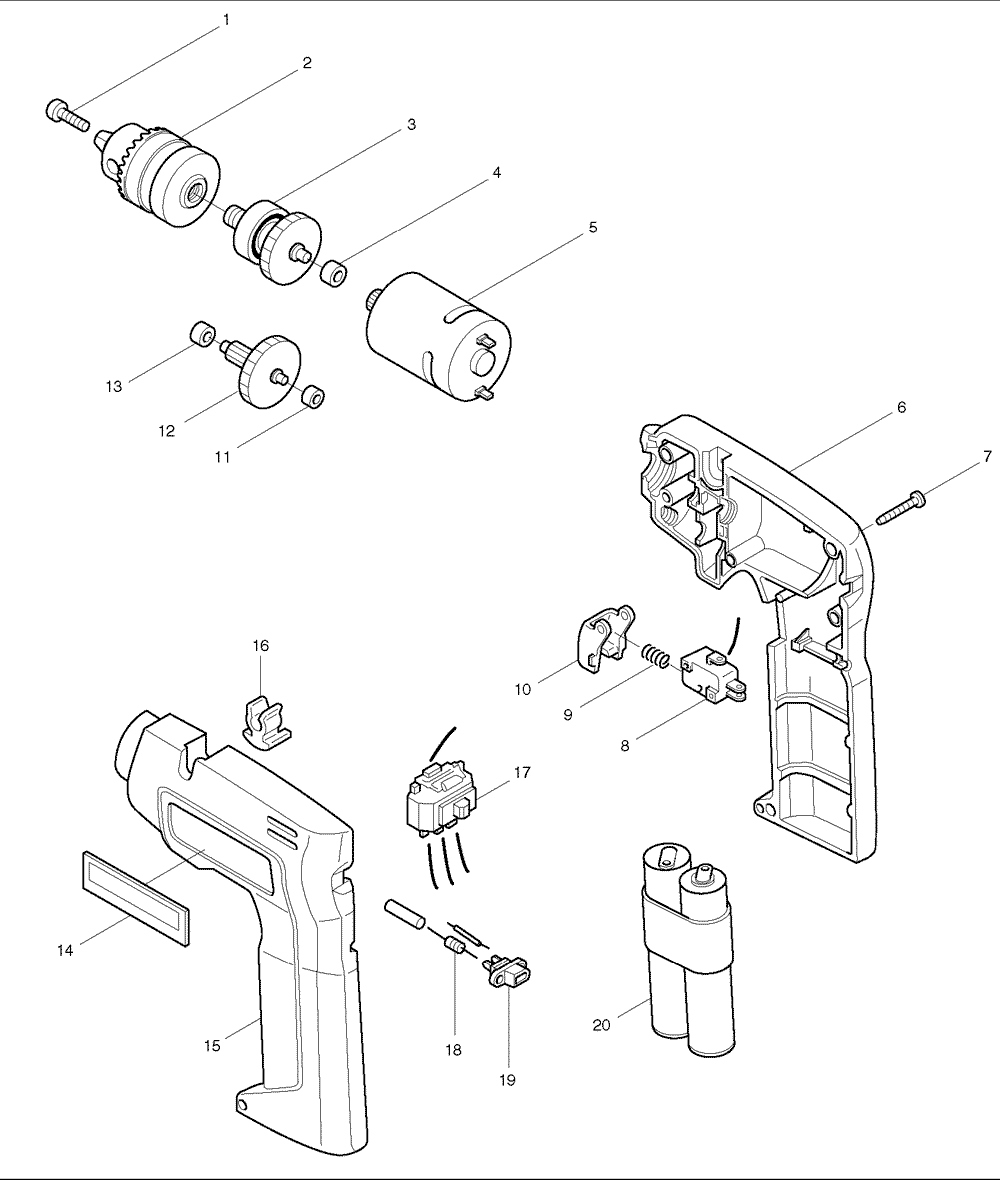

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	251448-1		SCREW M5X18, NHP1030	$1.48
3	153175-5		GEAR, 6043D	$26.72
4	214017-9		P. BEARING 5, 6043D	$1.26
5	A00111-8		MOTOR,6040DW	$23.19
6	182000-3		HOUSING SET, 6040DW	$13.18
7	265837-4		TAPPING SCREW M3X20, 6176D	$0.53
8	651852-8		SWITCH, 6043D	$8.12
9	231311-4		COMP. SPRING 7, 6043D	$1.63
10	414113-5		SWITCH LEVER, 6043D	$3.06
11	214019-5		P. BEARING 4, 6043D	$1.26
12	226077-9		GEAR 11-65, 6043D	$18.24
13	214019-5		P. BEARING 4, 6043D	$1.26
14	856055-1		NAME PLATE, 6040D	$1.12
15	182000-3		HOUSING SET, 6040DW	$13.18
16	411640-3		HOLDER, 6043D	$1.26
18	647037-2		DIODE, 6010SDW	$1.26
19	655404-7		INLET, 6040DW	$3.06
20	678079-5		BATTERY, 6040DW,	$27.59
400	763418-3		CHUCK KEY, 6012HDW	$4.40
