Makita 6013B Electric Drill Parts

Makita 6013B Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

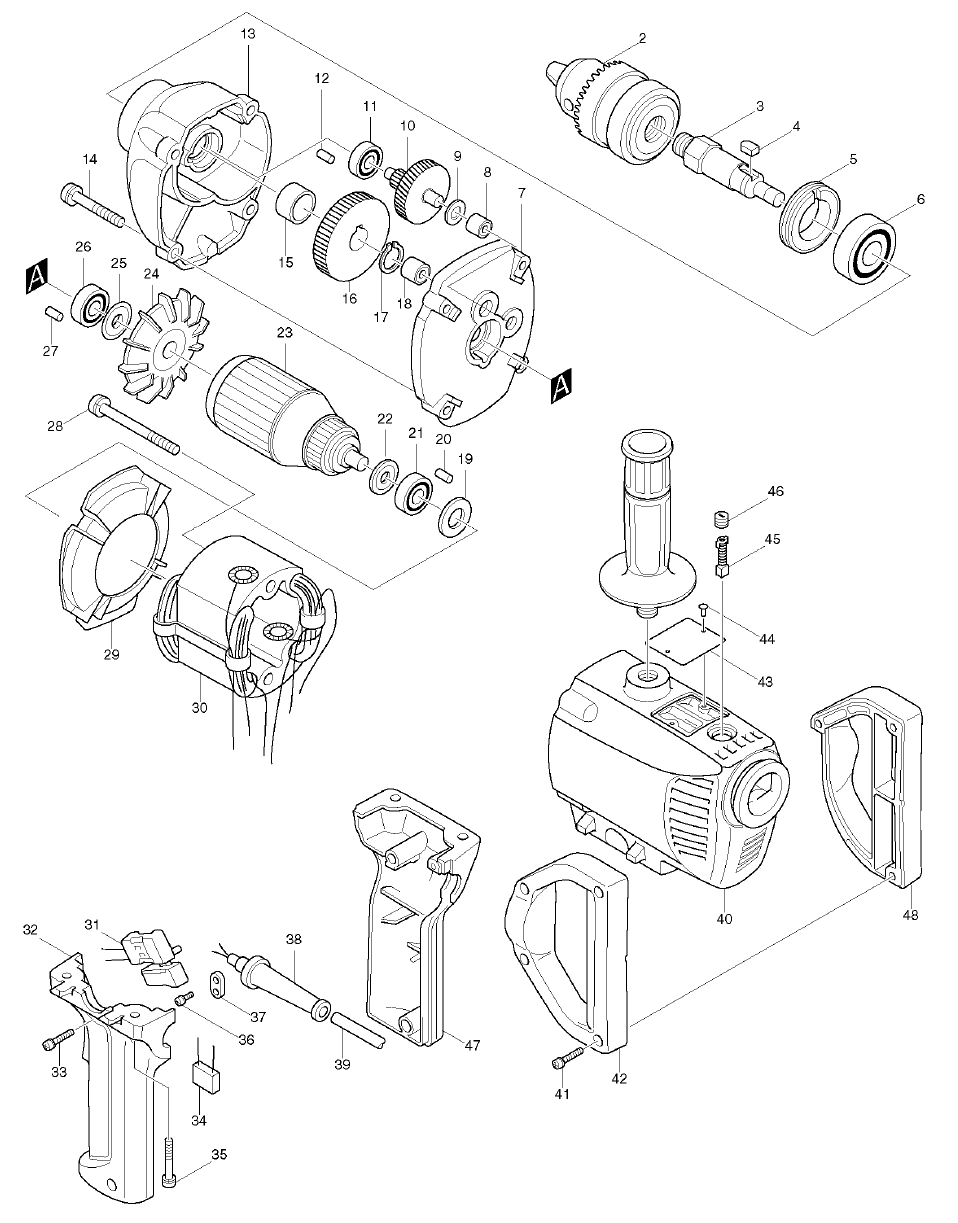

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	325494-1	SPINDLE, 6013BR	$26.92
4	254211-1	KEY 5, 6300LR	$1.26
5	285808-5	BEARING RETAINER 25-36, DA4000LR	$3.06
6	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
8	212012-3	N. BEARING 609, 6013BR	$5.92
9	261008-1	FIBER WASHER 6, 6013BR	$1.01
10	226028-2	GEAR 7-41, 6013BR	$24.29
11	211016-2	B. BEARING 626LLB, 6300LR	$10.98
14	911256-9	P.H. SCREW M5X35, 6300LR	$0.86
15	257018-4	RING 15, 6300LR	$3.06
16	221261-1	S. GEAR 47, 6301LR	$18.24
17	961054-1	RETAINING RING S-14, 6302	$0.86
18	212003-4	N. BEARING 810, 6300LR	$5.92
19	253192-6	F. WASHER 14, HR2400	$1.63
21	211033-2	B. BEARING 608LB, 5091D	$8.78
22	681613-2	INS. WASHER, JN3200	$1.63
24	241622-9	FAN 62, 6300LR	$7.46
25	213002-9	DUST SEAL 8, 6013BR	$1.63
26	211031-6	BALL BEARING 608LLB, 9227C	$10.98
27	263002-9	RUBBER PIN 4, 5007NK	$0.86
28	911280-2	P.H. SCREW M5X55, JR3000V	$1.48
29	411487-5	BAFFLE PLATE, 6013BR	$3.06
31	651232-8	SWITCH, 9218SB	$10.43
31	651268-7	SWITCH, 6501	$9.66
35	911248-8	P.H. SCREW M5X28, HM1500	$1.19
36	911133-5	P.H. SCREW M4X18, N9501B	$0.86
37	687001-1	STRAIN RELIEF, 6013BR	$0.97
38	682502-4	CORD GUARD 8-85, HP2010N	$2.51
38	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
40	156443-5	MOTOR HOUSING, 6013BR-T1	$30.70
41	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
44	953106-2	RIVET 0-5, HM1500	$0.49
46	643550-8	BRUSH CAP , 9031	$1.63
49	819003-1	MAKITA LABEL, 5057KB	$1.48
400	763432-9	CHUCK KEY S13, NHP1310-T2	$5.80
