Makita 6000LR Electric Drill Parts

Makita 6000LR Electric Drill Parts Image

Makita 6000LR Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

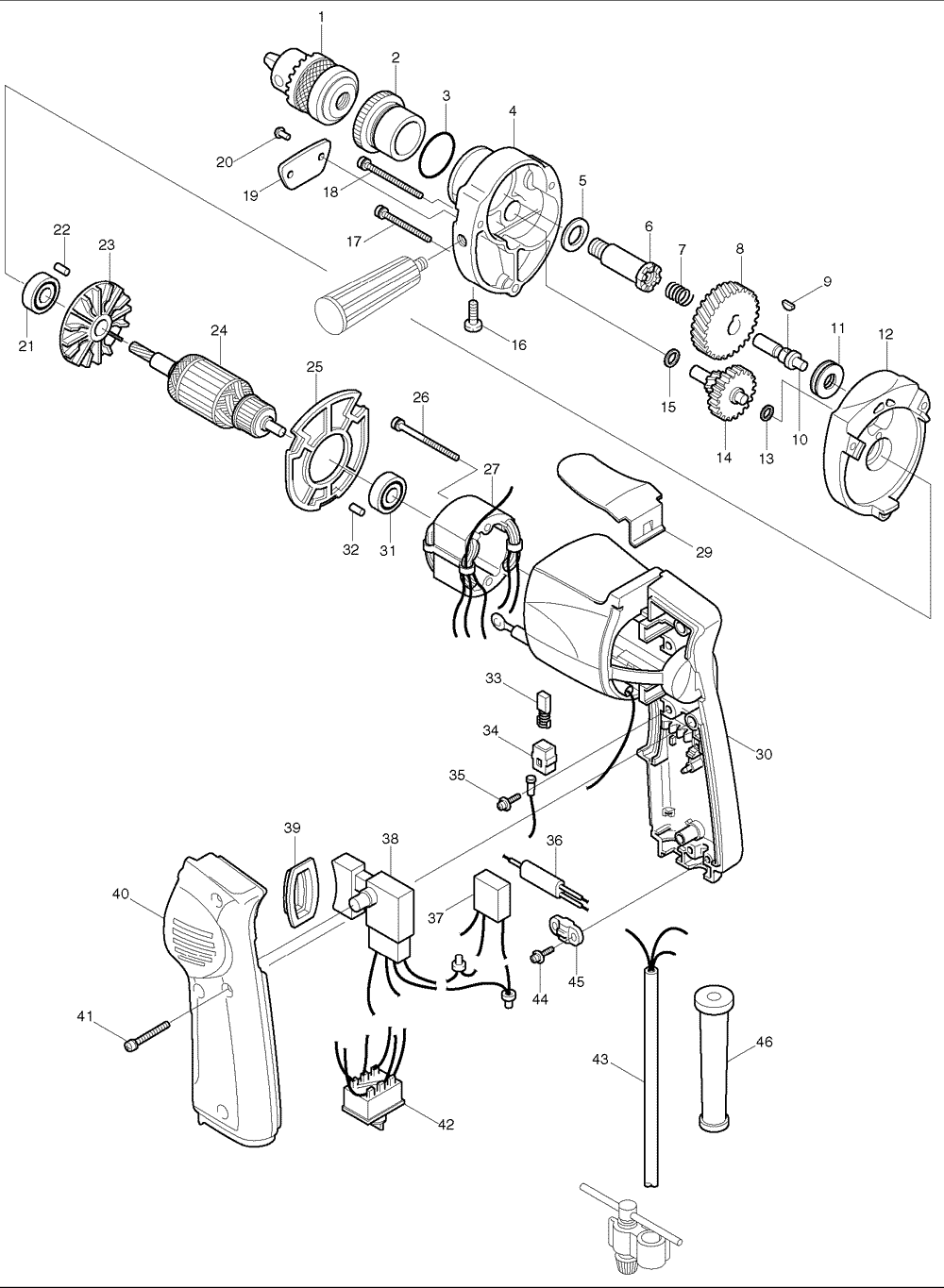

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	192879-4	DRILL CHUCK, HP1030	$35.70
2	154226-7	CHANGE RING, 6000LR	$32.23
3	213404-9	O RING 27, 6000LR	$1.96
4	156869-1	GEAR HOUSING, 6000LR	$20.44
5	253707-9	F. WASHER 16, 6802BV	$1.34
6	223058-4	SPINDLE, 6000R (TYPE 3)	$25.06
7	231139-0	COMP. SPRING 9, 6800DBV	$0.86
8	221675-4	GEAR, 6800DBV (TYPE 3)	$29.47
9	254031-3	WOODRUFF KEY 3, 6801DBV	$1.26
10	325332-7	GEAR SHAFT, 6000R	$8.12
11	212057-1	T.N. BEARING 1023, 6801DBV	$7.46
12	156835-8	GEAR HOUSING COVER, 6000LR	$14.94
13	253726-5	F. WASHER 6, 6000LR	$1.34
14	226061-4	GEAR 15-38, 6000LR	$21.76
15	253215-0	F. WASHER 8, PV7001C	$1.34
16	251412-2	SCREW M6X13, 6000LR	$3.28
17	911171-7	P.H. SCREW M4X45, 9218SB	$1.19
18	911181-4	P.H. SCREW M4X55, 3700	$1.48
19	854520-4	NAME PLATE, 6000LR	$3.67
20	953106-2	RIVET 0-5, HM1500	$0.49
21	211033-2	B. BEARING 608LB, 5091D	$8.78
22	263002-9	RUBBER PIN 4, 5007NK	$0.86
23	241802-7	FAN 58, 6510LVR	$4.49
24	511796-3	ARMATURE ASS'Y 115V FOR 6000LR	$86.70
25	414292-9	BAFFLE PLATE, 6510LVR,T2	$1.63
27	633081-5	FIELD, 6510LVR,T2	$27.03
29	343693-3	HOOK, 6805BV,T2	$4.49
30	159062-6	MOTOR HOUSING, 6801BV	$24.62
31	211028-5	B. BEARING 627LB, 6510LVR	$8.78
32	263002-9	RUBBER PIN 4, 5007NK	$0.86
34	643552-4	BRUSH HOLDER, BO5012K	$1.63
35	911124-6	P.H. SCREW M4X14, 6402	$0.86
38	650206-6	SWITCH, JR3000V	$23.96
38	650207-4	SWITCH,HP2010N	$17.47
39	411852-8	SWITCH COVER, 6805BV	$1.63
40	154969-1	HANDLE COVER CPL., 6000LR	$7.35
40	155300-4	HANDLE COVER, 6510LVR,T3	$13.18
41	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
42	651478-6	SWITCH, REVERSING, 6302H	$13.84
44	911133-5	P.H. SCREW M4X18, N9501B	$0.86
45	687001-1	STRAIN RELIEF, 6013BR	$0.97
46	682502-4	CORD GUARD 8-85, HP2010N	$2.51
46	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
400	763415-9	CHUCK KEY, DA301DW	$6.80
402	153489-2	GRIP 36, 9557NB	$2.84
404	411780-7	KEY HOLDER,6402	$1.26
905	819063-3	MAKITA LABEL, DA3010F	$0.96
