Makita 5600DW Cordless Saw Parts

Makita 5600DW Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

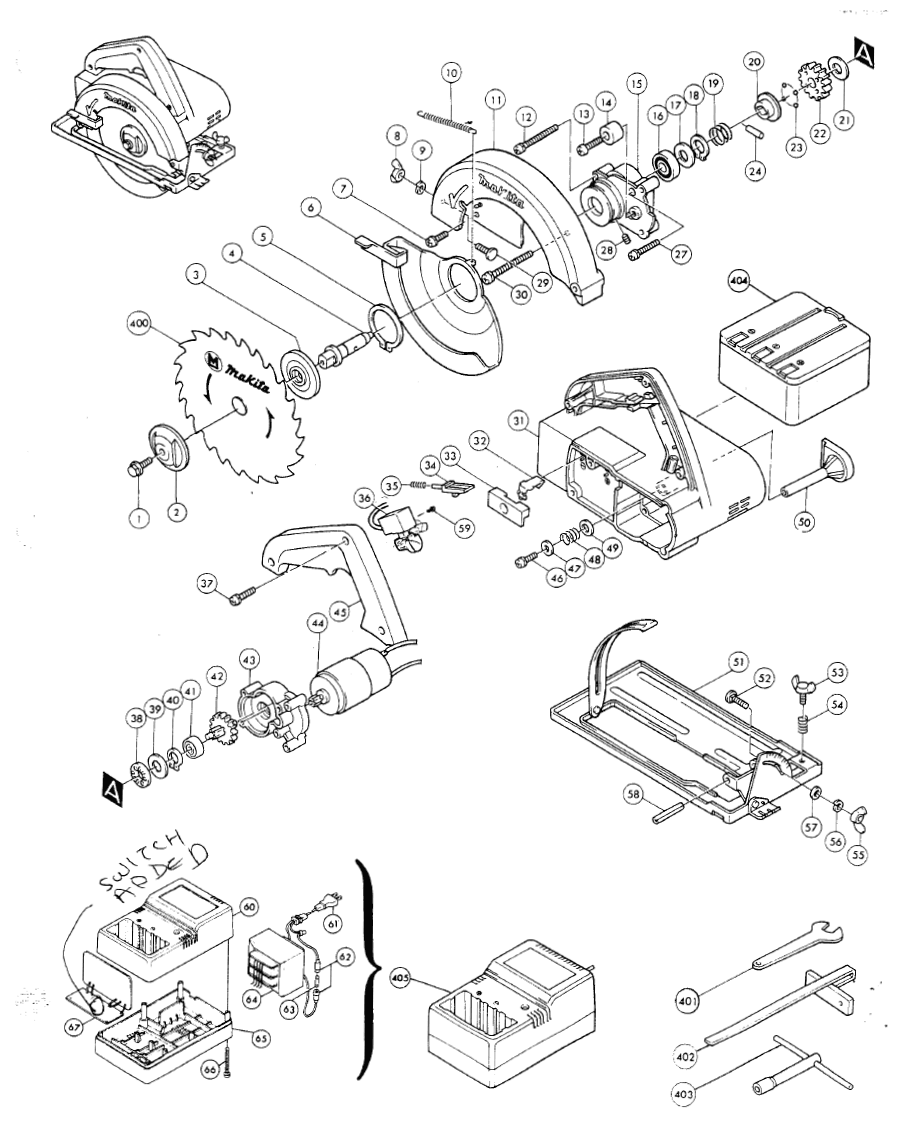

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251609-3	H.F.H. BOLT M6X17, 2030S	$1.96
2	224164-8	OUTER FLANGE 45, 5600DW	$8.12
3	224235-1	INNER FLANGE 45, 5600DW	$17.25
4	321728-0	SPINDLE, 5600DW (TYPE 1)	$18.02
5	961155-5	RETAINING RING S-38, 4200H	$1.96
6	164428-7	SAFETY COVER, 5600DW	$8.12
7	911221-8	P.H. SCREW M5X16, JR3000V	$0.86
8	934301-3	WING NUT M6, N1900B	$1.96
9	942151-2	SPRING WASHER 6, 5007NB	$0.90
10	231744-3	TEN. SPRING 4, 5600DW	$2.07
11	154317-4	BLADE CASE COMPLETE, 5600DW	$20.55
12	911181-4	P.H. SCREW M4X55, 3700	$1.48
13	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
14	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
15	152255-4	HOUSING W/O BEARING, 5600DW	$21.76
16	211101-1	BALL BEARING 6001LLB,9218PB	$13.07
17	253894-4	F. WASHER 12, 5600DW (TYPE 1)	$1.23
18	961052-5	RETAINING RING S-12, 9218PBL	$0.86
19	231376-6	COMP. SPRING 19, 5600DW (T1)	$1.23
20	223066-5	CLUTCH CAM, 5600DW (TYPE 1)	$8.12
21	253748-5	F. WASHER 12, HK1810	$1.34
22	221905-3	S. GEAR 69, 5600DW (TYPE 1)	$12.63
23	216002-8	STEEL BALL 4.8, NHP1310	$0.53
24	256054-7	PIN 4, 6201DW	$1.19
27	911156-3	.P.H. SCREW M4X30, 2412N	$0.86
28	913101-4	SET SCREW M4X16, 5600DW	$1.48
29	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
30	911276-3	P.H. SCREW M5X55, 6300LR	$1.19
31	410351-7	MOTOR HOUSING, 5600DW (TYPE 1)	$31.41
32	654054-5	TERMINAL, 5600DW	$2.62
33	410353-3	TERMINAL SUPPORT, 5600DW	$2.51
34	410354-1	LOCK-OFF PLATE, 5600DW	$2.51
35	231322-9	COMP. SPRING 3, 5600DW	$0.66
37	911138-5	P.H. SCREW M4X20, 9218SB	$0.86
38	216402-2	T.N. GAUGE 1224, 6702D	$9.33
39	216202-0	WASHER 1224, 5600DW (TYPE 1)	$3.72
40	961052-5	RETAINING RING S-12, 9218PBL	$0.86
41	211014-6	B. BEARING 606, 6826	$13.07
42	226069-8	GEAR 16-61, 5600DW	$22.75
43	157311-5	GEAR HOUSING, 5600DW	$16.59
44	629535-8	MOTOR (10.8V), 5600DW	$86.30
45	410352-5	HANDLE COVER, 5600DW (TYPE 1)	$6.47
46	911221-8	P.H. SCREW M5X16, JR3000V	$0.86
47	253194-2	F. WASHER 5, HM1303B	$1.63
48	231131-6	COMP. SPRING 11, LS1016	$0.66
49	253310-6	T. WASHER 10, HR5000	$1.01
50	410355-9	BATTERY RETAINER, 5600DW	$2.51
51	168135-4	BASE, 5600DW	$23.96
52	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
53	924316-8	THUMB SCREW M6X15, 5402A	$1.96
54	231316-4	COMP. SPRING 7, 5005BA	$0.79
55	934301-3	WING NUT M6, N1900B	$1.96
56	942151-2	SPRING WASHER 6, 5007NB	$0.90
57	941151-9	F. WASHER 6, 5007NB	$0.75
58	951175-7	SPRING PIN 5-36, 5600DW	$1.63
59	652008-6	P.H. SCREW M3.5X7, PV7001C	$0.49
60	410433-5	CHARGER CASE, DC1000	$25.17
62	643911-2	FUSE HOLDER, DC1000	$3.61
63	652563-8	FUSE, DC1000	$3.06
64	649044-1	TRANSFORMER, DC1000	$59.90
65	410434-3	CHARGER CASE COVER, DC1000	$16.04
66	911273-9	P.H. SCREW M5X50, HR2400	$1.19
401	781011-1	SPANNER, 2708	$13.20
402	164095-8	GUIDE RULE, 4200H	$12.60
403	782209-3	SOCKET WRENCH, 4200H	$6.40
