Makita 5477NB Electric Saw Parts

Makita 5477NB Parts

7-1/4 Inch Hypoid Saw, 15 AMP (Replacement of 5277NB)

Download Schematic

Time to buy a new tool?

Makita 5477NB

7-1/4 Inch Hypoid Sa...

$129.00

Free Shipping

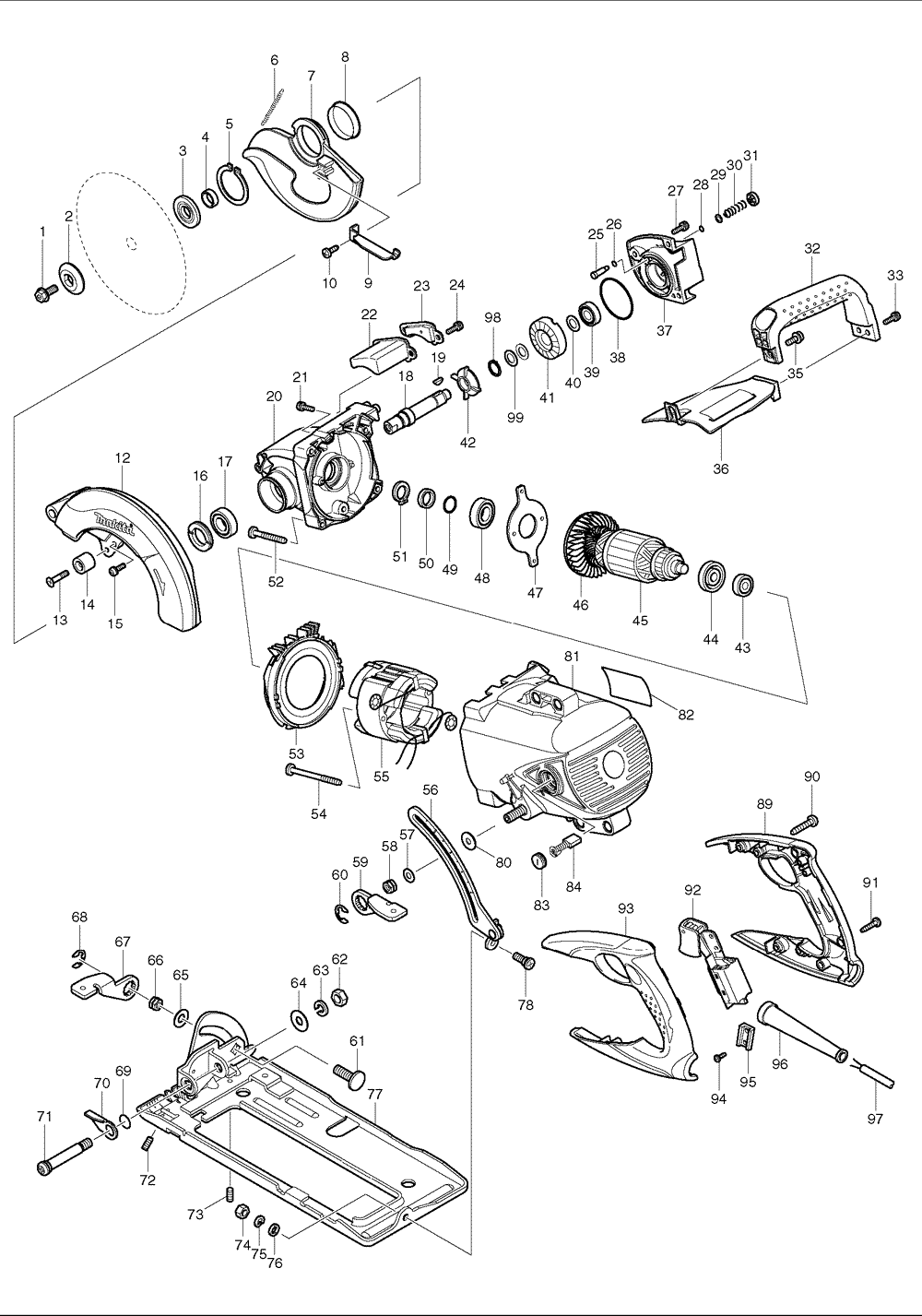

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
00	EC143	Power Tools Replacement Electical Cords (SJO) 14...	$19.19
1	266400-6	H.S.H.BOLT M8X20, 5377MG	$1.34
2	224275-9	OUTER FLANGE, 5620DWA	$5.92
3	224268-6	INNER FLANGE 40 5277NB	$2.84
4	257279-6	RING 16, 5007NK	$1.19
5	961201-4	RETAINING RING S-42, 5007NK	$1.96
6	231831-8	TENSION SPRING 4, 5277NB	$1.96
7	318068-5	SAFETY COVER, 5477NB	$6.14
8	345422-0	SPACER, 5007NK	$1.26
9	346004-1	LEVER PLATE, 5477NB	$1.12
10	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
12	318328-5	BLADE CASE, 5477NB	$12.63
13	251350-8	C.H. SCREW M6X28, 5277B	$1.96
14	262553-9	RUBBER SLEEVE 6, 5277NB,5377MG	$1.52
15	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
15	266036-1	TAPPING SCREW 5X20, 5177B	$1.48
16	285809-3	BEARING RETAINER 23-36, 5477NB	$3.06
17	211251-2	B.BEARING 6003LLB, 5277B	$15.27
18	324958-2	SPINDLE, 5477NB	$4.71
19	254001-2	WOODRUFF KEY 4, HM1810	$1.26
20	140706-9	GEAR HOUSING, 5377MG	$26.82
20	158142-5	GEAR HOUSING, 5377MG	$26.82
21	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
22	421970-4	DECOMPRESSION CHAMBER, 5377MG	$1.26
23	318079-0	PLATE, 5377MG	$1.74
24	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
25	256501-8	SHOULDER PIN 6, 5377MG	$1.48
26	213005-3	O RING, 5277NB,5377NB	$0.86
27	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
28	213005-3	O RING, 5277NB,5377NB	$0.86
29	253145-5	FLAT WASHER 6, 5177B	$1.63
30	233011-2	COMP. SPRING 8, 5377MG	$0.79
31	419589-1	CAP, 5377MG	$0.82
32	419578-6	GRIP, 5377MG	$4.71
33	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
35	911323-0	P.H. SCREW M6X16, LS1211	$1.19
36	158143-3	COVER CPL.,5377MG	$3.17
37	318066-9	HOUSING W/O BEARING, 5377MG	$7.68
38	213676-6	O RING 52, 5377MG	$0.53
39	210107-6	BALL BEARING 6001ZZ, 5477NB	$2.51
40	253744-3	F. WASHER 12, HR2410	$1.34
41	227504-9	HYPOID GEAR 36, 5377MG	$17.36
42	240005-0	FAN 45, 5277NB	$1.26
43	210067-2	BALL BEARING 6000ZZ, MT240	$4.16
44	681640-9	INSULATION WASHER, LS1040	$2.18
45	510137-0	ARMATURE ASSEMBLY, 5477NB	$39.06
46	241905-7	FAN 80, 5277NB	$1.52
47	285727-5	BEARING RETAINER, 5477NB	$3.17
48	211251-2	B.BEARING 6003LLB, 5277B	$15.27
49	213226-7	O-RING 16, 5177B	$5.37
50	257198-6	RING 17, 5277B	$10.32
51	961077-9	RETAINING RING, 5177B	$1.48
52	266373-3	TAPPING SCREW 5X35, 5477NB	$0.53
53	419573-6	BAFFLE PLATE, 5377MG	$1.74
54	266418-7	TAPPING SCREW 5X55, HR4002	$0.86
55	520066-9	FIELD ASSEMBLY, 5477NB	$25.17
57	941201-0	F. WASHER 8, 5007NK	$0.75
58	264006-4	HEX. NUT M8-13, 5007N & 5377MG	$1.34
59	346003-3	LEVER PLATE, 5007N & 5477NB	$1.34
60	257953-6	BOW STOP RING E-12, 5007NK	$1.19
61	265965-5	C.S.N. BOLT M8X24, 5007N & 5477NB	$1.96
62	931402-8	HEX NUT M8, 5037NB	$1.34
63	942201-3	SPRING WASHER 8, 2414NB	$0.90
64	253731-2	F. WASHER 8, 2414B	$1.63
65	941201-0	F. WASHER 8, 5007NK	$0.75
66	264006-4	HEX. NUT M8-13, 5007N & 5377MG	$1.34
67	346003-3	LEVER PLATE, 5007N & 5477NB	$1.34
68	257953-6	BOW STOP RING E-12, 5007NK	$1.19
69	213118-0	O-RING 12, 5277NB	$0.86
70	345677-7	STOPPER PLATE, 5277NB	$0.97
71	265163-1	+ FLAT HEAD SCREW M8, 5277NB	$1.74
74	931302-2	HEX NUT M6, HR2400	$0.79
75	942151-2	SPRING WASHER 6, 5007NB	$0.90
76	941151-9	F. WASHER 6, 5007NB	$0.75
77	168493-8	BASE, 5477NB	$10.43
78	265041-5	FLAT HEAD SCREW M6, 5177B	$1.48
80	253022-1	F. WASHER 8, 5277NB	$1.34
81	158805-3	MOTOR HOUSING CPL., 5477NB	$13.84
82	865939-2	NAME PLATE, 5477NB	$1.30
83	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
84	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
89	188185-3	HANDLE SET, 5377MG	$12.19
90	266459-3	TAPPING SCREW 5X25, 5477NB	$0.66
91	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
92	651189-3	SWITCH, 5007NK	$14.94
93	188185-3	HANDLE SET, 5377MG	$12.19
94	266427-6	TAPPING SCREW 4X12, 5377MG	$0.49
95	687673-2	STRAIN RELIEF, 5177B	$3.06
96	682564-2	CORD GUARD, 5007NK	$4.16
96	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
98	961056-7	RETAINING RING S-16, 5077B	$1.48
99	232247-0	CONED DISC SPRING 16, 5477NB	$0.90
1002	783204-6	HEX WRENCH 6, 3705, HR5000	$3.40
