Makita 5402NA Electric Saw Parts

Makita 5402NA Electric Saw Parts Image

Makita 5402NA Parts
16-5/16 inch Circular Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 5402NA
16-5/16 inch Circula...
$763.99
Tool Diagram    (Click image to Zoom in) View larger Image

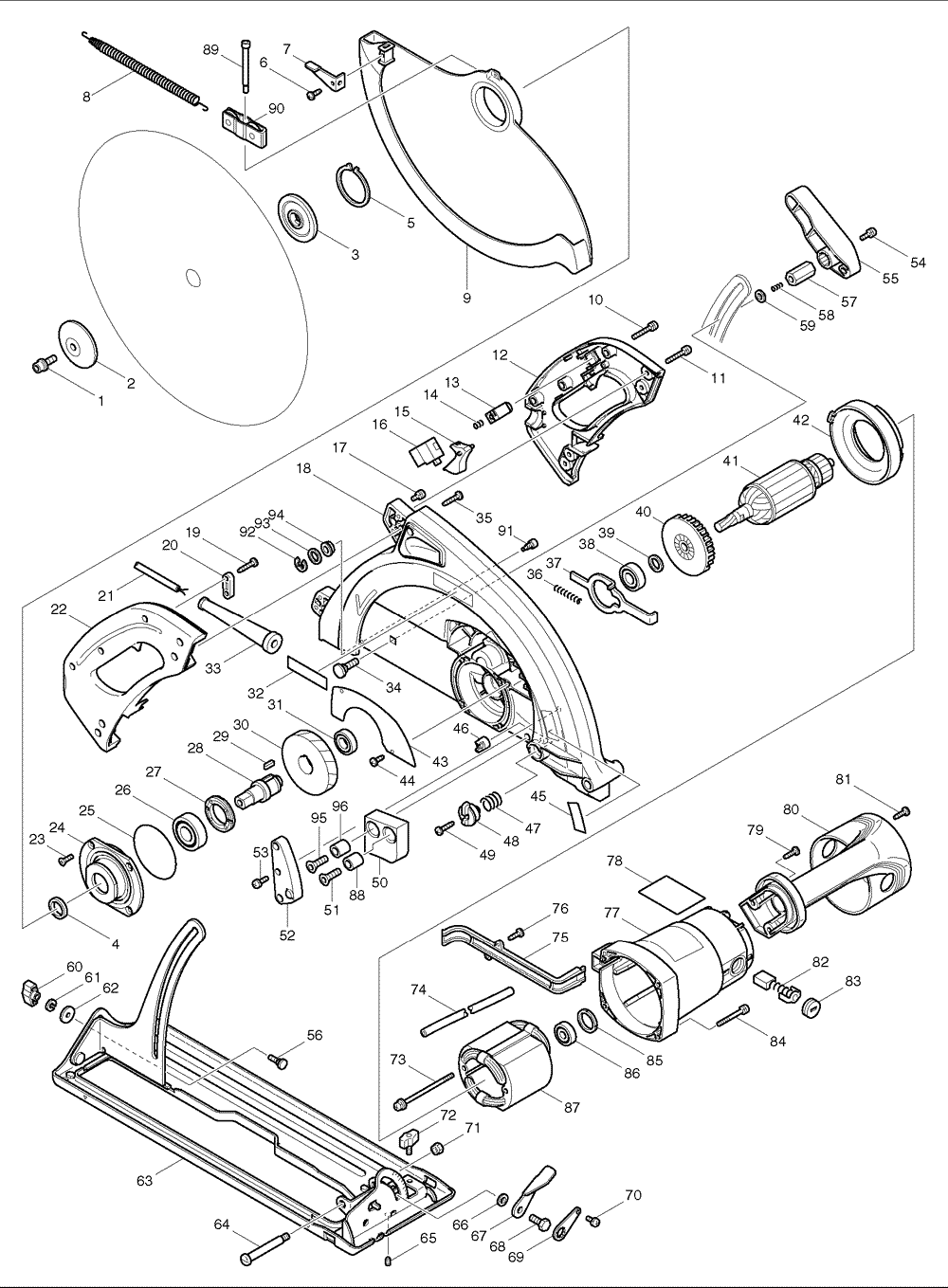

Makita 5402NA Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265408-7 H. S. H. BOLT M8X20, 5201N $2.40
00 825402NAINS INSERTS (3EA), 5402NA $18.90
2 224310-3 OUTER FLANGE, LS1440 $28.25
3 224264-4 INNER FLANGE 65, LS1440 $11.97
4 257230-6 RING 20, 5402A $5.48
5 961252-7 RETAINING RING S-55, 5201NA $3.61
6 266026-4 TAPPING SCREW 4X12,5477NB $0.86
7 344966-7 LEVER, 5402NA $1.52
8 231826-1 TENSION SPRING 6, 5402NA $19.01
9 317377-9 SAFETY COVER, 5402NA $74.00
9 318315-4 SAFETY COVER, 5402NA $40.69
10 911148-2 P.H. SCREW M4X25, 5057KB $0.86
10 911153-9 P.H. SCREW M4X28, JR3000V $0.86
11 911253-5 P.H. SCREW M5X30, 2030S $1.19
12 183291-9 HANDLE SET,5402NA $26.52
12 183532-3 HANDLE SET,5402NA $30.49
13 417117-6 LOCK-OFF BUTTON, 5402NA $10.65
14 233284-7 COMPRESSION SPRING 5, 5402NA $1.96
15 417115-0 SWITCH LEVER, 5402NA $1.52
16 651985-9 SWITCH,5402NA $21.76
17 652014-1 P.H. SCREW M4X8, 2708 $0.75
18 183307-0 BLADE CASE,5402NA $143.27
19 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
20 687053-2 STRAIN RELIEF, UM401DW $1.08
21 664850-3 CORD (3X14X16 SJ), 5402NA $33.25
21 EC143 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $19.19
22 183291-9 HANDLE SET,5402NA $26.52
22 183532-3 HANDLE SET,5402NA $30.49
23 265034-2 C.S.H. SCREW, BCS550 $1.19
24 317378-7 BEARING BOX, 5402NA $28.56
25 213763-1 O RING 75,5402NA $1.74
26 211329-1 BALL BEARING 6204DDW, LC1230 $13.95
27 285824-7 BEARING RETAINER 31-48, 2711 $4.49
28 323938-5 SPINDLE, 5402NA $14.61
29 254229-2 KEY 5, HR4000C $1.63
30 226526-6 HELICAL GEAR 62 $29.37
31 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
32 819064-1 MAKITA MARK, 5402NA $1.26
33 682564-2 CORD GUARD, 5007NK $4.16
33 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
34 265845-5 C.S.N.BOLT M8X30,5037NB $2.40
35 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
36 233264-3 COMPRESSION SPRING 5, 5007NLK $0.79
37 344890-4 SHAFT LOCK, 5402NA $5.48
38 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
39 253147-1 F. WASHER 15, 5037NB $1.63
40 241870-0 FAN 80, HM1304B $8.01
41 516836-2 ARMATURE ASSY, 5402NA $104.09
42 417278-2 BAFFLE PLATE, 5402NA $5.48
43 344891-2 COVER PLATE, 5402NA $4.16
44 266026-4 TAPPING SCREW 4X12,5477NB $0.86
45 816374-7 INDICATION LABEL, 5402NA $2.74
46 417280-5 STOPPER PIN, 5402NA $4.16
47 233272-4 COMPRESSION SPRING 16, 5402NA $1.96
48 417279-0 LOCK LEVER, 5402NA $4.16
49 266045-0 TAPPING SCREW 4X20, 9046 $1.19
50 421820-3 RUBBER CUSHION, 5402NA $8.01
51 251973-2 H.S.H. BOLT M8X25 $1.48
52 417282-1 STOPPER PLATE, 5402NA $5.48
53 911113-1 P.H. SCREW M4X10, 4301BV $0.86
54 911113-1 P.H. SCREW M4X10, 4301BV $0.86
55 417281-3 LEVER 98, 5402NA $9.33
56 251919-8 C.S.N. BOLT M6X20, 5402NA $1.34
57 252165-6 HEX. NUT M8-35, 5402NA $7.02
58 231485-1 COMPRESSION SPRING 4, 5402NA $0.86
59 941201-0 F. WASHER 8, 5007NK $0.75
60 252624-0 KNOB M6, 5007NB $3.06
61 942151-2 SPRING WASHER 6, 5007NB $0.90
62 253010-8 F. WASHER 6, 5402A $1.01
63 163498-3 BASE, 5402NA $75.20
64 251405-9 SCREW M8,5402A $3.61
65 266208-8 HEX SOCKET HEAD BOLT M6X8, LS1016L $1.96
66 941201-0 F. WASHER 8, 5007NK $0.75
67 344980-3 LEVER PLATE, 5402NA $4.16
68 921432-7 HEX BOLT M8X20, 5177B $1.34
69 341415-5 LOCK PLATE, 5057KB $1.26
70 911108-4 P.H. SCREW M4X8, LS1013 $0.86
71 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
72 251858-2 SCREW M6X15, 5007NK $3.61
73 911945-6 P.H. SCREW M5X85, 5402NA $1.74
74 683393-6 TUBE 4-5-220, 5402NA $0.97
75 417276-6 LEAD COVER, 5402NA $6.80
76 266026-4 TAPPING SCREW 4X12,5477NB $0.86
77 152907-7 MOTOR HOUSING CPL., 5402NA $70.30
78 852883-2 NAME PLATE, 5402NA $1.12
79 266027-2 TAPPING SCREW M5X16, 5402NA $0.86
80 417277-4 FRONT HANDLE, 5402NA $30.49
81 266027-2 TAPPING SCREW M5X16, 5402NA $0.86
82 194991-6 CARBON BRUSH SET CB-203, LS1211 $10.43
83 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
84 911263-2 P.H. SCREW M5X40, 4131 $1.74
85 261081-1 URETHANE WASHER 25, 5402NA $4.16
86 211066-7 B. BEARING 6200LLB, BO4552 $10.98
87 520053-8 FIELD ASS'Y, 5402NA $50.89
88 257720-9 SLEEVE 8, 5402NA $2.84
89 266290-7 H.S.H. BOLT M5, 5402NA $4.93
90 163431-5 ROLLER CPL., 5402NA $14.61
91 266289-2 H.S.H. BOLT M6, 5402NA $4.93
92 961017-7 STOP RING E-3, 4304, SH01 $0.53
93 267099-0 FLAT WASHER 4, 6201D $1.63
94 262104-8 SHOULDER RING 4, 5402NA $4.93
95 251973-2 H.S.H. BOLT M8X25 $1.48
96 257720-9 SLEEVE 8, 5402NA $2.84
97 816931-1 INDICATION LABEL, 5402NA $1.08
1001 164019-4 GUIDE RULE, 5201NA $12.60
1002 A-90956 T.C. BLADE,32T,16-5/16, 5402A $196.00
1003 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
1004 194701-1 SAW STORAGE HOLDER, 5402NA $82.60
