Makita 5402A Electric Saw Parts

Makita 5402A Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

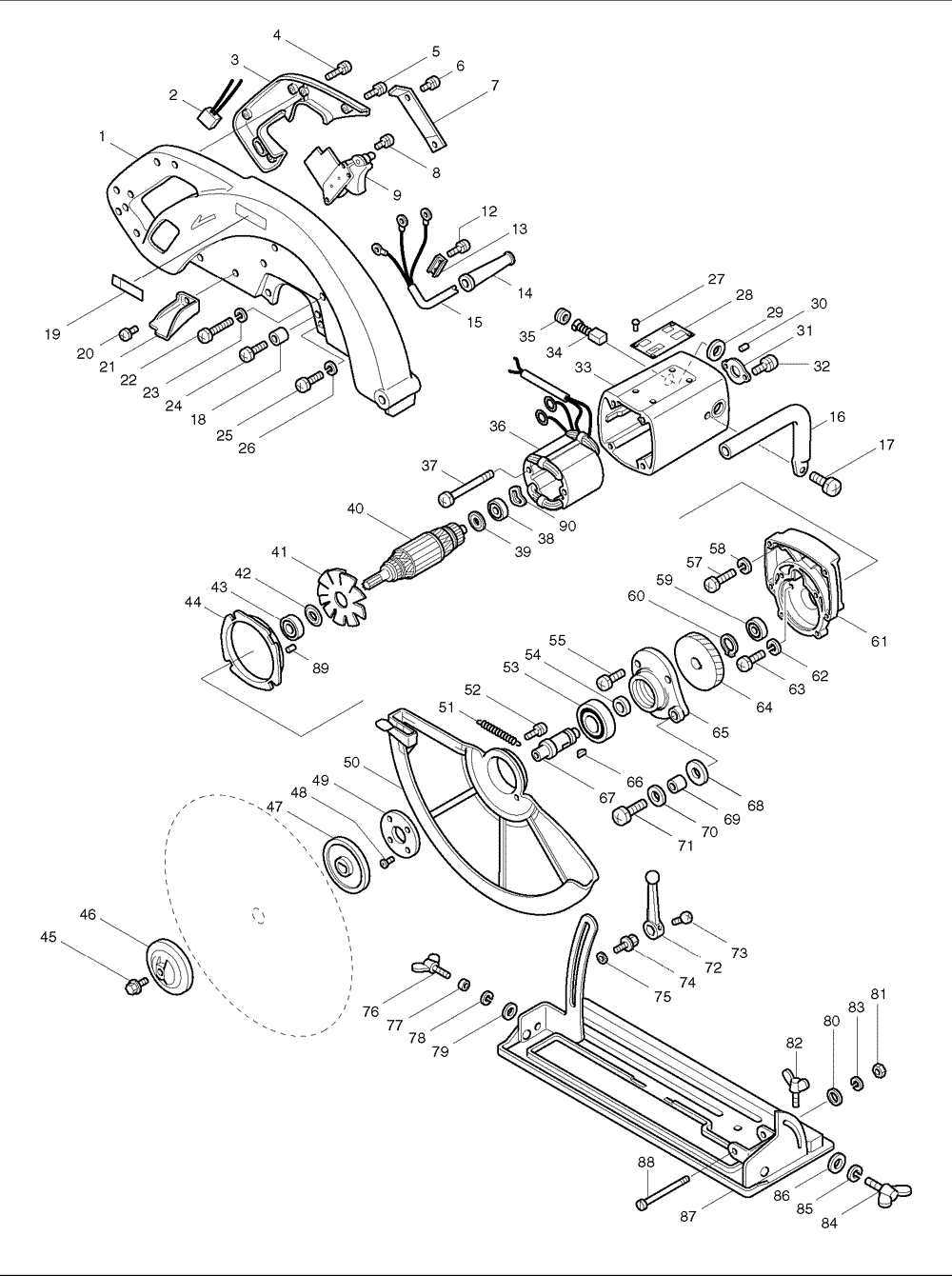

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	315057-1	BLADE CASE, 5402A	$130.96
9	651154-2	SWITCH, 5402A T3	$39.78
67	325212-7A	SPINDLE,5402A(TYPE 2)	$26.16
3	315059-7	HANDLE COVER, 5402A (TYPE 2)	$16.04
40	517751-3	ARMATURE, 5402A	$96.90
4	911151-3	P.H. SCREW M4X28, 6300LR	$0.86
50	165218-1	SAFETY COVER, 5402A	$56.10
5	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
00	168138-8	BASE, 5402A (TYPE 2)	$78.70
6	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
71	911451-1	P.H. SCREW M8X30, 2414NB	$1.48
37	911938-3	P.H. SCREW M5X85, 4110C	$3.61
7	342488-1	LEAD COVER, 5402A	$3.06
8	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
9	651154-2	SWITCH, 5402A T3	$39.78
12	911123-8	P.H. SCREW M4X14, N9501B	$0.86
13	687001-1	STRAIN RELIEF, 6013BR	$0.97
14	682505-8	CORD GUARD, 2711	$2.51
14	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
15	664754-9	CORD (3X16X16 SJ), 5201NA	$39.88
15	EC163	Power Tools Replacement Electical Cords (SJO) 16...	$15.19
16	273602-7	GRIP, 5402A	$13.18
17	911321-4	P.H. SCREW M6X16, 5402A	$0.86
18	257542-7	SLEEVE 7, 5402A	$3.06
19	819003-1	MAKITA LABEL, 5057KB	$1.48
20	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
21	343292-1	CHIP GUIDE, 5402A	$3.06
22	251273-0	P.H. SCREW M6X30, 5402A	$1.12
22	265064-3	P.H. SCREW M6X30, 5402A	$3.28
23	942151-2	SPRING WASHER 6, 5007NB	$0.90
25	251272-2	P.H. SCREW M6X25, 5402A	$1.12
25	251365-5	P.H. SCREW M6X25, 5402A	$1.74
26	942151-2	SPRING WASHER 6, 5007NB	$0.90
27	953106-2	RIVET 0-5, HM1500	$0.49
28	815101-9	NAME PLATE, 5402A	$2.51
29	681002-1	INS. WASHER, 2012	$1.01
30	263005-3	RUBBER PIN 6, BHP452	$0.86
31	285006-1	BEARING COVER 42, 5402A	$1.63
32	911211-1	P.H. SCREW M5X12, HM1500B	$0.86
34	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
35	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
36	524996-6	FIELD, 5402A, T2	$92.90
37	911938-3	P.H. SCREW M5X85, 4110C	$3.61
38	211066-7	B. BEARING 6200LLB, BO4552	$10.98
39	213051-6	DUST SEAL 10, 2711	$1.63
40	517751-3	ARMATURE, 5402A	$96.90
41	241314-0	FAN 92, 5402A	$10.32
42	213202-1	DUST SEAL 15, 5402A	$3.06
43	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
44	343160-8	FAN GUIDE, 5402A	$4.49
45	265408-7	H. S. H. BOLT M8X20, 5201N	$2.40
45	251644-1	H.F.H. BOLT M8X20, 5037NB	$2.40
46	224074-9	OUTER FLANGE, 5402A	$18.90
47	224182-6	INNER FLANGE, 5402A (TYPE 2)	$20.33
48	912116-8	C.S.H. SCREW M4X12, 5201NA	$0.86
49	285822-1	BEARING RETAINER 28-73, 5402A (T2)	$10.32
50	165218-1	SAFETY COVER, 5402A	$56.10
51	231733-8	TEN. SPRING 7, 5402A (T2)	$5.37
52	911109-2	P.H. SCREW M4X8, HR2210	$0.86
53	211306-3	B. BEARING 6204LLB, 2711	$15.27
54	257032-0	RING 20, 5402A	$4.49
55	911241-2	P.H. SCREW M5X25, 9005B	$0.86
57	251208-1	P.H. SCREW M5X35, 5402A	$3.61
57	265063-5	P.H. SCREW M5X35, 5402NA	$1.74
58	942101-7	SPRING WASHER 5, 9005B	$0.90
59	211106-1	B. BEARING 6201LLB, 9227C	$13.07
60	961060-6	RETAINING RING S-20, 2708	$1.19
61	157034-5	GEAR HOUSING, 5401	$35.08
62	942101-7	SPRING WASHER 5, 9005B	$0.90
63	251210-4	P.H. SCREW M5X25, 5012B	$1.08
63	265066-9	P.H. SCREW M5X25, 5402A	$1.48
64	221623-3	H. GEAR, 5402A	$35.08
65	315775-1	GEAR HOUSING COVER, 5402A (T2)	$24.29
66	254001-2	WOODRUFF KEY 4, HM1810	$1.26
67	325212-7	SPINDLE, 5402 (TYPE 1)	$22.86
68	262007-6	RUBBER RING, 5201NA	$1.96
69	257541-9	SLEEVE 8, 5402	$3.06
70	253022-1	F. WASHER 8, 5277NB	$1.34
71	911451-1	P.H. SCREW M8X30, 2414NB	$1.48
72	133014-5	LEVER 98 ASSEMBLY, 5201NA	$6.80
73	911207-2	P.H. SCREW M5X10, 5402A	$0.53
74	251612-4	H. BOLT M8X20, 5201NA	$3.61
75	941201-0	F. WASHER 8, 5007NK	$0.75
76	924336-2	THUMB SCREW M6X25, 5402A	$1.96
77	257542-7	SLEEVE 7, 5402A	$3.06
78	942151-2	SPRING WASHER 6, 5007NB	$0.90
79	253010-8	F. WASHER 6, 5402A	$1.01
80	941201-0	F. WASHER 8, 5007NK	$0.75
81	252105-4	HEX LOCK NUT M8-13, HM1800	$1.96
81	931401-0	HEX NUT M8, 5201NA	$1.34
82	924316-8	THUMB SCREW M6X15, 5402A	$1.96
83	942201-3	SPRING WASHER 8, 2414NB	$0.90
84	924426-1	THUMB SCREW M8X20, 5402A	$3.28
85	942201-3	SPRING WASHER 8, 2414NB	$0.90
86	253022-1	F. WASHER 8, 5277NB	$1.34
88	251405-9	SCREW M8,5402A	$3.61
89	263005-3	RUBBER PIN 6, BHP452	$0.86
90	253913-6	W. WASHER 20, 3612BR	$1.34
400	792116-2	16-5/16 COMB. BLADE, 5402A	$128.00
401	164019-4	GUIDE RULE, 5201NA	$12.60
403	783204-6	HEX WRENCH 6, 3705, HR5000	$3.40
403	781203-2	SPANNER 13, 5007NB	$16.60
404	410047-0	WRENCH HOLDER, GV5000	$1.63
903	165172-9	HOLDER PLATE, 5402A	$8.78
904	257506-1	SLEEVE 7, 5402A	$1.26
905	421546-7	RUBBER CUSHION, 5402A	$3.06
906	911321-4	P.H. SCREW M6X16, 5402A	$0.86
907	911333-7	SCREW M6X20, 2414B	$1.19
