Makita 5277NB Electric Saw Parts

Makita 5277NB Electric Saw Parts Image

Makita 5277NB Parts
7-1/4 Inch Hypoid Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 5277NB
7-1/4 Inch Hypoid Sa...
$143.99
Tool Diagram    (Click image to Zoom in) View larger Image

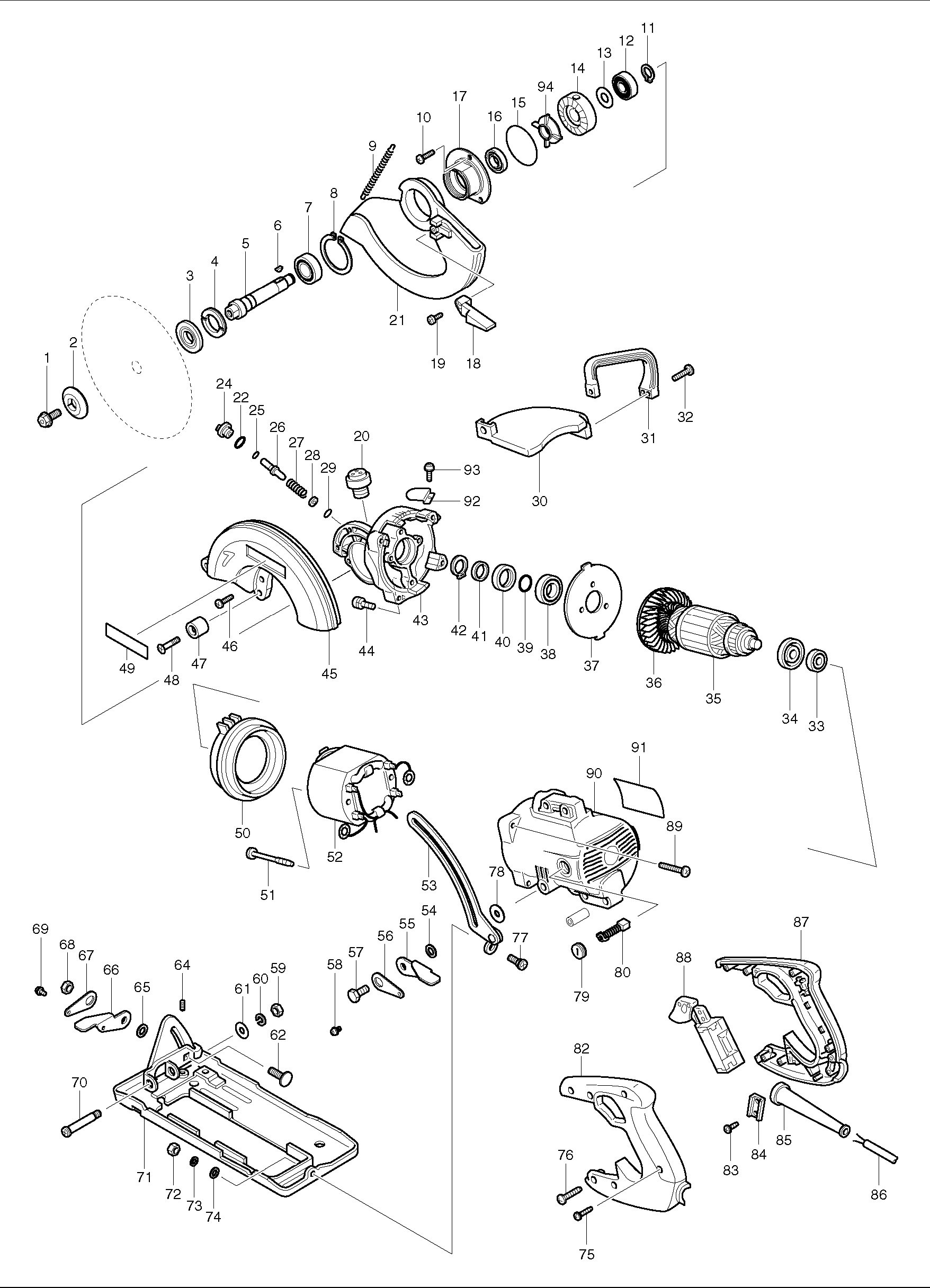

Makita 5277NB Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265315-4 H.F.H. BOLT M8X20, 5277B $2.40
2 224275-9 OUTER FLANGE, 5620DWA $5.92
3 224268-6 INNER FLANGE 40 5277NB $2.84
4 285809-3 BEARING RETAINER 23-36, 5477NB $3.06
5 322840-9 SPINDLE, 5177B $18.90
6 254001-2 WOODRUFF KEY 4, HM1810 $1.26
7 211251-2 B.BEARING 6003LLB, 5277B $15.27
8 961201-4 RETAINING RING S-42, 5007NK $1.96
9 231831-8 TENSION SPRING 4, 5277NB $1.96
10 266036-1 TAPPING SCREW 5X20, 5177B $1.48
11 961052-5 RETAINING RING S-12, 9218PBL $0.86
12 211109-5 BALL BEARING 6201, HR3851 $13.07
13 267024-1 F. WASHER 12, 5277NB $2.18
14 226729-2 HYPOID GEAR 36, 5277NB $30.90
15 213604-1 O RING 50, 6911D $3.61
16 213260-7 OIL SEAL 17, HM0810B $4.49
17 316725-9 HOUSING W/O BEARING, 5177B $16.04
18 415799-8 LEVER, 5177B $3.06
19 266026-4 TAPPING SCREW 4X12,5477NB $0.86
20 168287-1 BREATHER, 5277NB $18.90
21 318007-5 SAFETY COVER, 5277B $6.80
22 213162-7 O RING 14, 2414B $0.86
24 418532-7 CAP 20,5277NB $2.84
25 213005-3 O RING, 5277NB,5377NB $0.86
26 268011-3 PIN 6, 5277NB $3.61
27 231278-6 COMP. SPRING 6, 6805BV $1.63
28 253145-5 FLAT WASHER 6, 5177B $1.63
29 213017-6 O RING 6, 5177B $0.53
30 415800-9 COVER, 5177B $8.78
31 419359-8 GRIP, 5277B $2.84
32 266036-1 TAPPING SCREW 5X20, 5177B $1.48
32 266032-9 TAPPING SCREW 5X30, 5277NB $1.48
33 210042-8 BALL BEARING 629LLB, 5277NB $6.03
33 211056-0 B. BEARING 629LLB, 4101RH $10.98
34 681633-6 INSULATION WASHER, LS1211 $3.72
35 510090-0 ARMATURE ASS'Y, 5277NB $53.80
36 241905-7 FAN 80, 5277NB $1.52
37 285682-1 BEARING RETAINER, 5277NB $7.46
38 211251-2 B.BEARING 6003LLB, 5277B $15.27
39 213226-7 O-RING 16, 5177B $5.37
40 213389-9 OIL SEAL 22, 5177B $10.32
41 257198-6 RING 17, 5277B $10.32
42 961077-9 RETAINING RING, 5177B $1.48
43 316728-3 GEAR HOUSING, 5177B $32.33
44 911206-4 P.H. SCREW M5X10, 1806B $0.53
45 316727-5 BLADE CASE, 5177B $26.92
46 266036-1 TAPPING SCREW 5X20, 5177B $1.48
47 262553-9 RUBBER SLEEVE 6, 5277NB,5377MG $1.52
48 251350-8 C.H. SCREW M6X28, 5277B $1.96
49 819064-1 MAKITA MARK, 5402NA $1.26
50 415797-2 BAFFLE PLATE, 5177B $5.92
51 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
52 596106-5 FIELD 115V, 5177B $62.10
54 941201-0 F. WASHER 8, 5007NK $0.75
55 345678-5 LEVER PLATE, 5277NB $1.52
56 341415-5 LOCK PLATE, 5057KB $1.26
57 921432-7 HEX BOLT M8X20, 5177B $1.34
58 911108-4 P.H. SCREW M4X8, LS1013 $0.86
59 931402-8 HEX NUT M8, 5037NB $1.34
60 942201-3 SPRING WASHER 8, 2414NB $0.90
61 253731-2 F. WASHER 8, 2414B $1.63
62 265965-5 C.S.N. BOLT M8X24, 5007N & 5477NB $1.96
65 941201-0 F. WASHER 8, 5007NK $0.75
66 345678-5 LEVER PLATE, 5277NB $1.52
67 341415-5 LOCK PLATE, 5057KB $1.26
68 931402-8 HEX NUT M8, 5037NB $1.34
69 911108-4 P.H. SCREW M4X8, LS1013 $0.86
70 265163-1 + FLAT HEAD SCREW M8, 5277NB $1.74
70 265042-3 FLAT HEAD SCREW M8, 5177B $1.48
71 163436-5 BASE, 5277NB $31.72
71 163462-4 BASE, 5277NB $13.84
72 931302-2 HEX NUT M6, HR2400 $0.79
73 942151-2 SPRING WASHER 6, 5007NB $0.90
74 941151-9 F. WASHER 6, 5007NB $0.75
75 266045-0 TAPPING SCREW 4X20, 9046 $1.19
76 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
77 265041-5 FLAT HEAD SCREW M6, 5177B $1.48
78 253022-1 F. WASHER 8, 5277NB $1.34
79 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
80 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
80 K21 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-154), 18104... $8.50
82 183525-0 HANDLE SET,5277NB $12.63
83 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
84 687673-2 STRAIN RELIEF, 5177B $3.06
85 682505-8 CORD GUARD, 2711 $2.51
85 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
87 183525-0 HANDLE SET,5277NB $12.63
88 650103-6 SWITCH, 5277NB $12.63
88 651160-7 SWITCH, 5277B $33.45
89 266032-9 TAPPING SCREW 5X30, 5277NB $1.48
90 153393-5 MOTOR HOUSING CPL., 5277NB $19.78
91 850377-1 NAME PLATE, 5277NB $1.12
92 344350-6 BREATHER RETAINER, 5177B $3.06
93 911118-1 P.H. SCREW M4X12, 6221D $0.86
94 240005-0 FAN 45, 5277NB $1.26
95 213118-0 O-RING 12, 5277NB $0.86
96 345677-7 STOPPER PLATE, 5277NB $0.97
98 125319-7 HOOK ASS'Y, 5277NB $5.48
99 266036-1 TAPPING SCREW 5X20, 5177B $1.48
1001 782016-4 OFFSET WRENCH 13, 5177B $6.40
