Makita 5201NA Electric Saw Parts

Makita 5201NA Electric Saw Parts Image

Makita 5201NA Parts
10-1/4 Inch Circular Saw electric brake

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 5201NA
10-1/4 Inch Circular...
$389.99
Tool Diagram    (Click image to Zoom in) View larger Image

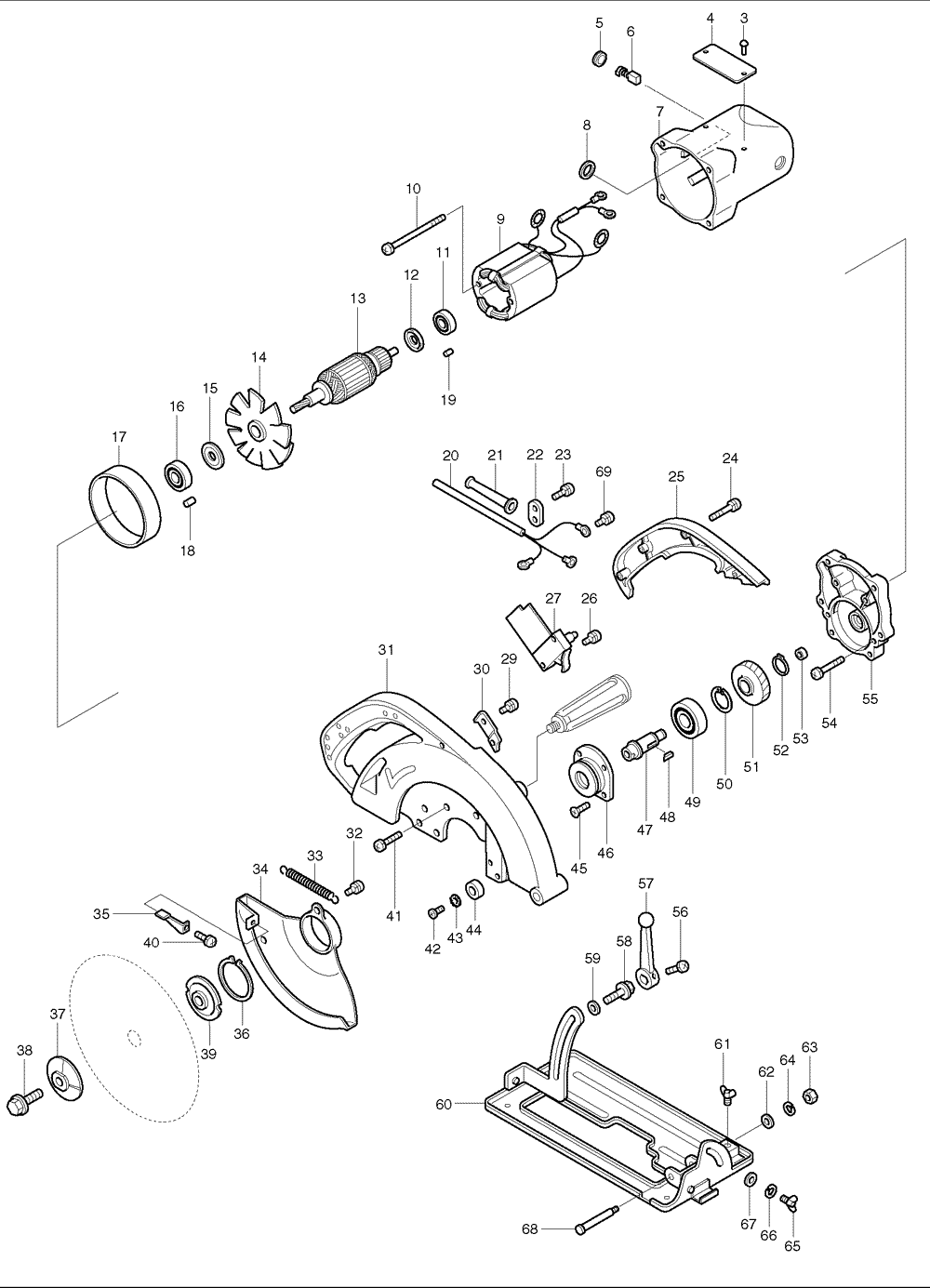

Makita 5201NA Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3 953106-2 RIVET 0-5, HM1500 $0.49
60 133172-7 BASE ASSEMBLY, 5201NA $51.20
4 815309-5 NAME PLATE, 5201NA $2.74
7 156601-3 MOTOR HOUSING, 5201NA $69.60
3 953106-2 RIVET 0-5, HM1500 $0.49
5 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
55 157033-7 GEAR HOUSING, 5201NA $32.33
57 133014-5 LEVER 98 ASSEMBLY, 5201NA $6.80
4 815309-5 NAME PLATE, 5201NA $2.74
6 181047-4 CARBON BRUSH SET 154,5402A $8.12
6 K21 This item will be shipped Free Carbon Brush Set $8.19
5 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
27 651154-2 SWITCH, 5402A T3 $39.78
6 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
13 510006-5 ARMATURE, 5201NA $127.56
7 156601-3 MOTOR HOUSING, 5201NA $69.60
10 911290-9 P.H. SCREW M5X65, GA7911 $1.96
8 681002-1 INS. WASHER, 2012 $1.01
7 156601-3 MOTOR HOUSING, 5201NA $69.60
8 681002-1 INS. WASHER, 2012 $1.01
9 526001-5 FIELD, 5201NA,T2 $88.40
10 911290-9 P.H. SCREW M5X65, GA7911 $1.96
11 211066-7 B. BEARING 6200LLB, BO4552 $10.98
12 213051-6 DUST SEAL 10, 2711 $1.63
13 510006-5 ARMATURE, 5201NA $127.56
14 241064-7 FAN 106, 5201NA $4.49
15 213202-1 DUST SEAL 15, 5402A $3.06
16 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
17 343119-5 FAN GUIDE, 5201NA $4.49
18 263005-3 RUBBER PIN 6, BHP452 $0.86
19 263002-9 RUBBER PIN 4, 5007NK $0.86
20 664754-9 CORD (3X16X16 SJ), 5201NA $39.88
20 EC163 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $15.19
21 682505-8 CORD GUARD, 2711 $2.51
21 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
22 687001-1 STRAIN RELIEF, 6013BR $0.97
22 687052-4 STRAIN RELIEF, HM1500B $1.26
23 911133-5 P.H. SCREW M4X18, N9501B $0.86
23 911116-5 P.H. SCREW M4X12, 4301BV $0.53
22 687052-4 STRAIN RELIEF, HM1500B $1.26
23 911116-5 P.H. SCREW M4X12, 4301BV $0.53
24 911151-3 P.H. SCREW M4X28, 6300LR $0.86
23 911133-5 P.H. SCREW M4X18, N9501B $0.86
25 315162-4 HANDLE COVER, 5201NA $10.32
26 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
24 911151-3 P.H. SCREW M4X28, 6300LR $0.86
27 651154-2 SWITCH, 5402A T3 $39.78
25 315162-4 HANDLE COVER, 5201NA $10.32
26 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
29 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
27 651154-2 SWITCH, 5402A T3 $39.78
30 341540-2 LEAD COVER, 5201N $2.84
29 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
31 316744-5 BLADE CASE, 5201NA-T3 $85.30
30 341540-2 LEAD COVER, 5201N $2.84
32 251445-7 SCREW M4, 5201NA $3.61
33 231767-1 TEN. SPRING 5, 5201NA $5.37
31 316744-5 BLADE CASE, 5201NA-T3 $85.30
34 315160-8 SAFETY COVER, 5201NA $41.61
35 344966-7 LEVER, 5402NA $1.52
32 251445-7 SCREW M4, 5201NA $3.61
36 961252-7 RETAINING RING S-55, 5201NA $3.61
33 231767-1 TEN. SPRING 5, 5201NA $5.37
34 315160-8 SAFETY COVER, 5201NA $41.61
37 224160-6 OUTER FLANGE, 5201NA $26.92
38 265408-7 H. S. H. BOLT M8X20, 5201N $2.40
38 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
35 344966-7 LEVER, 5402NA $1.52
39 224159-1 INNER FLANGE, 5201NA $20.33
40 911211-1 P.H. SCREW M5X12, HM1500B $0.86
36 961252-7 RETAINING RING S-55, 5201NA $3.61
37 224160-6 OUTER FLANGE, 5201NA $26.92
41 911246-2 P.H. SCREW M5X28, 6013BR $0.86
38 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
42 251256-0 C.H. SCREW M8X20, 5201NA $1.48
38 265408-7 H. S. H. BOLT M8X20, 5201N $2.40
43 943202-4 TOOTHED WASHER 8, 5201NA $1.01
44 262007-6 RUBBER RING, 5201NA $1.96
39 224159-1 INNER FLANGE, 5201NA $20.33
40 911211-1 P.H. SCREW M5X12, HM1500B $0.86
45 912116-8 C.S.H. SCREW M4X12, 5201NA $0.86
41 911246-2 P.H. SCREW M5X28, 6013BR $0.86
46 312530-2 HOUSING W/O BEARING, 5201NA $16.04
42 251256-0 C.H. SCREW M8X20, 5201NA $1.48
47 321147-0 SPINDLE, 5201NA $27.59
43 943202-4 TOOTHED WASHER 8, 5201NA $1.01
48 254203-0 KEY 4, 5201NA $1.63
49 211306-3 B. BEARING 6204LLB, 2711 $15.27
44 262007-6 RUBBER RING, 5201NA $1.96
50 962203-3 RETAINING RING R-47, HM0810B $1.96
45 912116-8 C.S.H. SCREW M4X12, 5201NA $0.86
46 312530-2 HOUSING W/O BEARING, 5201NA $16.04
51 221188-5 H. GEAR 54, 5201NA $24.29
52 961060-6 RETAINING RING S-20, 2708 $1.19
47 321147-0 SPINDLE, 5201NA $27.59
48 254203-0 KEY 4, 5201NA $1.63
53 212101-4 N. BEARING 1210, LS1020 $7.46
49 211306-3 B. BEARING 6204LLB, 2711 $15.27
54 911251-9 P.H. SCREW M5X30, 2040 $0.86
50 962203-3 RETAINING RING R-47, HM0810B $1.96
55 157033-7 GEAR HOUSING, 5201NA $32.33
56 911207-2 P.H. SCREW M5X10, 5402A $0.53
51 221188-5 H. GEAR 54, 5201NA $24.29
52 961060-6 RETAINING RING S-20, 2708 $1.19
57 133014-5 LEVER 98 ASSEMBLY, 5201NA $6.80
58 251612-4 H. BOLT M8X20, 5201NA $3.61
53 212101-4 N. BEARING 1210, LS1020 $7.46
54 911251-9 P.H. SCREW M5X30, 2040 $0.86
59 941201-0 F. WASHER 8, 5007NK $0.75
55 157033-7 GEAR HOUSING, 5201NA $32.33
60 133172-7 BASE ASSEMBLY, 5201NA $51.20
61 924316-8 THUMB SCREW M6X15, 5402A $1.96
56 911207-2 P.H. SCREW M5X10, 5402A $0.53
62 941201-0 F. WASHER 8, 5007NK $0.75
57 133014-5 LEVER 98 ASSEMBLY, 5201NA $6.80
63 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
58 251612-4 H. BOLT M8X20, 5201NA $3.61
63 931401-0 HEX NUT M8, 5201NA $1.34
59 941201-0 F. WASHER 8, 5007NK $0.75
64 942201-3 SPRING WASHER 8, 2414NB $0.90
65 924316-8 THUMB SCREW M6X15, 5402A $1.96
60 133172-7 BASE ASSEMBLY, 5201NA $51.20
66 942151-2 SPRING WASHER 6, 5007NB $0.90
61 924316-8 THUMB SCREW M6X15, 5402A $1.96
67 941151-9 F. WASHER 6, 5007NB $0.75
62 941201-0 F. WASHER 8, 5007NK $0.75
63 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
68 251407-5 SCREW M8, 5201NA $3.61
69 652014-1 P.H. SCREW M4X8, 2708 $0.75
63 931401-0 HEX NUT M8, 5201NA $1.34
64 942201-3 SPRING WASHER 8, 2414NB $0.90
65 924316-8 THUMB SCREW M6X15, 5402A $1.96
66 942151-2 SPRING WASHER 6, 5007NB $0.90
67 941151-9 F. WASHER 6, 5007NB $0.75
68 251407-5 SCREW M8, 5201NA $3.61
69 652014-1 P.H. SCREW M4X8, 2708 $0.75
400 152492-0 GRIP 36 COMP. 9005B-T2 $4.49
401 792087-3 10-1/4 COMB. BLADE, 5201NA $56.20
402 164019-4 GUIDE RULE, 5201NA $12.60
403 781011-1 SPANNER, 2708 $13.20
404 781203-2 SPANNER 13, 5007NB $16.60
404 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
405 410047-0 WRENCH HOLDER, GV5000 $1.63
900 257022-3 RING 16, LS1013 $3.06
401 792087-3 10-1/4 COMB. BLADE, 5201NA $56.20
402 164019-4 GUIDE RULE, 5201NA $12.60
403 781011-1 SPANNER, 2708 $13.20
404 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
404 781203-2 SPANNER 13, 5007NB $16.60
405 410047-0 WRENCH HOLDER, GV5000 $1.63
900 257022-3 RING 16, LS1013 $3.06
