Makita 5094D Cordless Saw Parts

Makita 5094D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

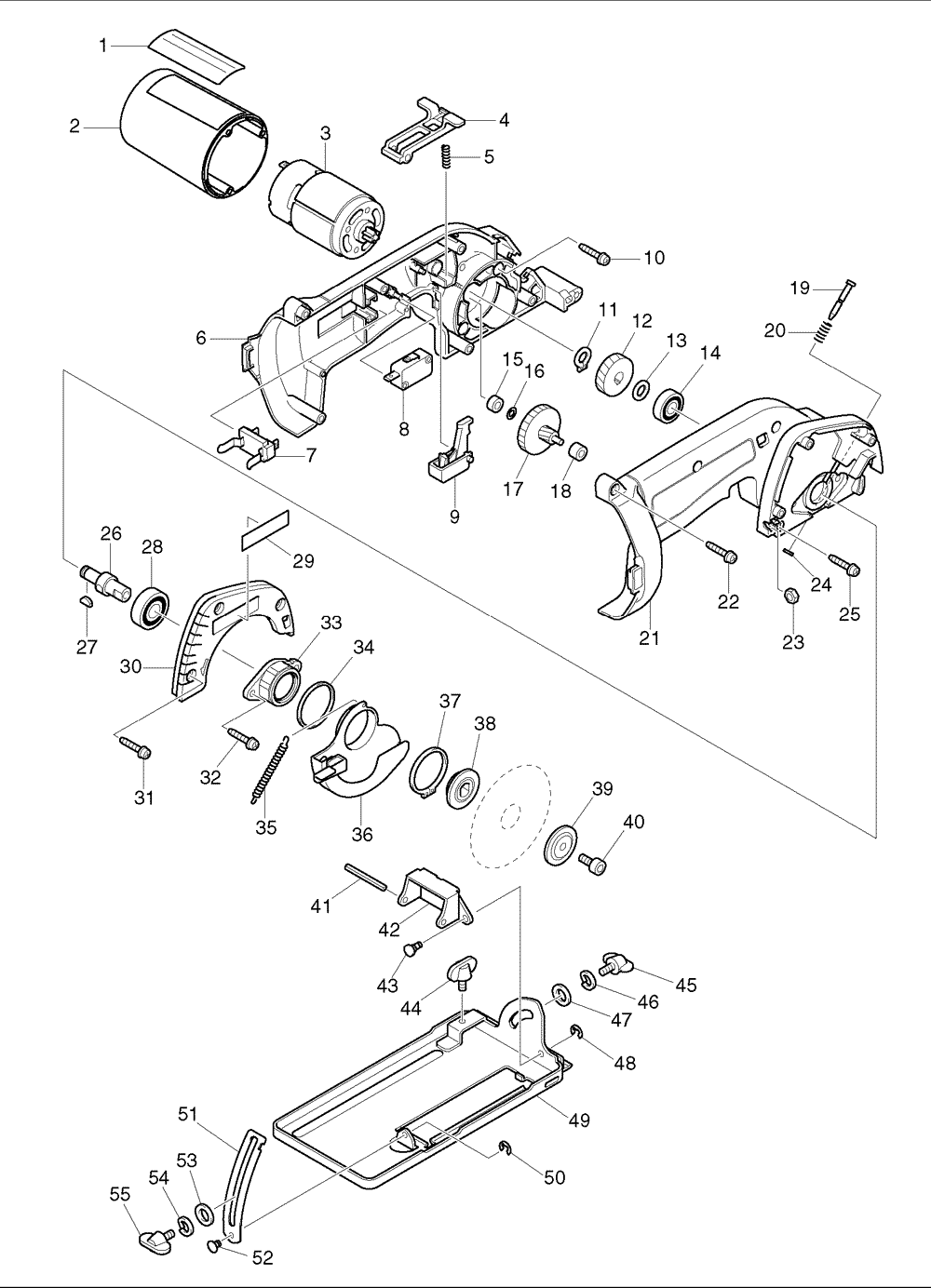

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	851637-4	NAME PLATE, 5094D	$3.67
2	416142-4	MOTOR HOUSING, 5094D	$7.46
3	629737-6	DC MOTOR, 5094DWA	$44.16
4	415680-3	LOCK OFF LEVER, 5091DW	$4.49
5	233024-3	COMPRESSION SPRING 4, 6702DW	$1.63
6	183102-8	HOUSING SET, 5094DWA	$13.84
7	643909-9	BATTERY HOLDER, DA392D	$4.49
8	651891-8	SWITCH, 6900DW, SH01W	$6.47
9	415679-8	SWITCH LEVER, 5091DW	$4.49
10	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
11	961004-6	RETAINING RING S-8, DA391D	$0.53
12	226448-0	HELICAL GEAR 33, 5091DW	$14.39
13	253215-0	F. WASHER 8, PV7001C	$1.34
14	211033-2	B. BEARING 608LB, 5091D	$8.78
15	214019-5	P. BEARING 4, 6043D	$1.26
16	253307-5	T. WASHER, 4390D	$1.34
17	226819-1	GEAR COMPLETE 8-68, 5091DW	$22.75
18	214027-6	PLANE BEARING 4, 6903VD	$1.26
19	268002-4	PIN, 5091DW	$1.96
20	231240-1	COMP. SPRING 7, 2414B	$0.79
21	183102-8	HOUSING SET, 5094DWA	$13.84
22	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
23	931202-6	HEX NUT M5, HR2410	$0.79
24	961011-9	STOP RING E-4, 4301BV	$1.48
25	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
26	322810-8	SPINDLE, 5091DW	$20.33
27	254031-3	WOODRUFF KEY 3, 6801DBV	$1.26
28	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
29	819080-3	MAKITA LABEL, 9565CV	$1.48
30	415678-0	BLADE CASE, 5091DW	$7.46
31	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
32	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
33	415677-2	BEARING BOX, 5091DW	$4.49
34	267134-4	FLAT WASHER 30, 5091DW	$1.63
35	231802-5	TENSION SPRING, 5091DW	$2.07
36	165116-9	SAFETY COVER, 5091DW	$17.25
37	961128-8	RETAINING RING, 5091DW	$1.96
38	224324-2	INNER FLANGE 28, 5091DW	$4.49
39	224177-9	OUTER FLANGE, SH01W	$1.63
40	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
41	951134-1	SPRING PIN 4-45, 2030S	$1.63
42	344594-8	ANGULAR GUIDE, 5093DWA	$7.46
43	268028-6	PIN 5, 5093DWA, SH01W	$1.48
44	265756-4	THUMB SCREW M5X10, 4340FCT	$3.61
45	265756-4	THUMB SCREW M5X10, 4340FCT	$3.61
46	942101-7	SPRING WASHER 5, 9005B	$0.90
47	941101-4	F. WASHER 5, 5007NK	$0.75
48	961017-7	STOP RING E-3, 4304, SH01	$0.53
49	168317-8	BASE, 5093DW	$21.76
50	961017-7	STOP RING E-3, 4304, SH01	$0.53
51	344592-2	DEPTH GUIDE, 5093DWA	$4.49
52	268004-0	COLLAR HD PIN, 5091DW, SH01W	$1.96
53	941101-4	F. WASHER 5, 5007NK	$0.75
54	942101-7	SPRING WASHER 5, 9005B	$0.90
55	265756-4	THUMB SCREW M5X10, 4340FCT	$3.61
1001	783202-0	HEX WRENCH 4, JR3000V	$3.24
1002	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	164095-8	GUIDE RULE, 4200H	$12.60
1006	193158-3	BATTERY 1434 14.4V NIMH,6337D	$132.20
