Makita 5090D Cordless Saw Parts

Makita 5090D Parts

3-3/8 Inch Cordless Saw

Download Schematic

Time to buy a new tool?

Makita 5090D

3-3/8 Inch Cordless ...

$100.99

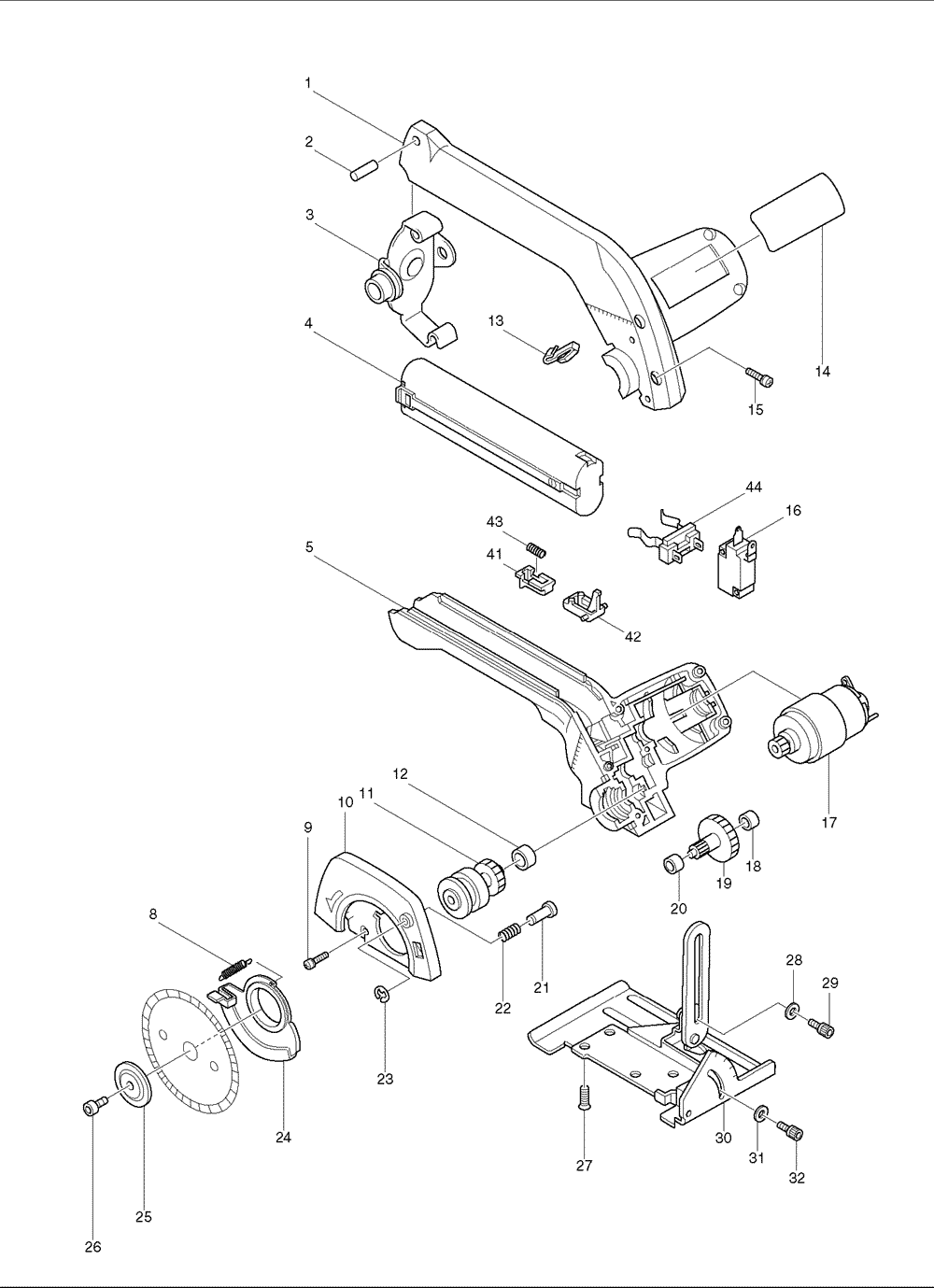

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182025-7	HOUSING SET, 5081D	$40.29
1	183934-3	HOUSING SET, 5090DW	$29.58
2	256085-6	PIN 4, 4071D	$1.96
5	182025-7	HOUSING SET, 5081D	$40.29
5	183934-3	HOUSING SET, 5090DW	$29.58
8	231749-3	TEN. SPRING 5, 5090DW	$2.07
9	911121-2	P.H. SCREW M4X14, 9217SPC	$0.53
10	164872-8	BLADE CASE, 5090DW	$20.33
11	153132-3	GEAR, 5090DW	$26.72
12	214017-9	P. BEARING 5, 6043D	$1.26
13	232061-4	LEAF SPRING, 5090DW	$2.07
14	856056-9	NAME PLATE, 5090D	$1.12
15	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
17	629574-8	MOTOR, 5090DW	$34.98
18	214019-5	P. BEARING 4, 6043D	$1.26
19	226053-3	GEAR 11-67, 5080DW (TYPE 1)	$13.84
20	214019-5	P. BEARING 4, 6043D	$1.26
21	256625-0	PIN 5, 5090D	$3.61
22	231098-8	COMP. SPRING 6, 5090DW	$0.86
23	961011-9	STOP RING E-4, 4301BV	$1.48
25	224177-9	OUTER FLANGE, SH01W	$1.63
26	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
27	912222-9	C.S.H. SCREW M5X16, BO3710	$0.86
28	253184-5	F. WASHER 5, 5090DW	$1.01
29	922206-9	H.S.H. BOLT M5X10, 5090DW	$1.34
30	163281-8	BASE, 5090DW	$26.92
31	253184-5	F. WASHER 5, 5090DW	$1.01
32	922206-9	H.S.H. BOLT M5X10, 5090DW	$1.34
41	414169-8	LOCK-OFF LEVER, 4390D	$0.97
42	414168-0	SWITCH LEVER, UH3000D	$1.41
43	231390-2	COMP. SPRING 3, UH3000D	$0.90
44	643909-9	BATTERY HOLDER, DA392D	$4.49
400	783202-0	HEX WRENCH 4, JR3000V	$3.24
402	414938-7	BATTERY COVER, 6222DWE	$2.20
