Makita 5057KB Electric Saw Parts

Makita 5057KB Electric Saw Parts Image

Makita 5057KB Parts
7-1/4 inch Circular Saw with Dust Collector

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 5057KB
7-1/4 inch Circular ...
$336.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

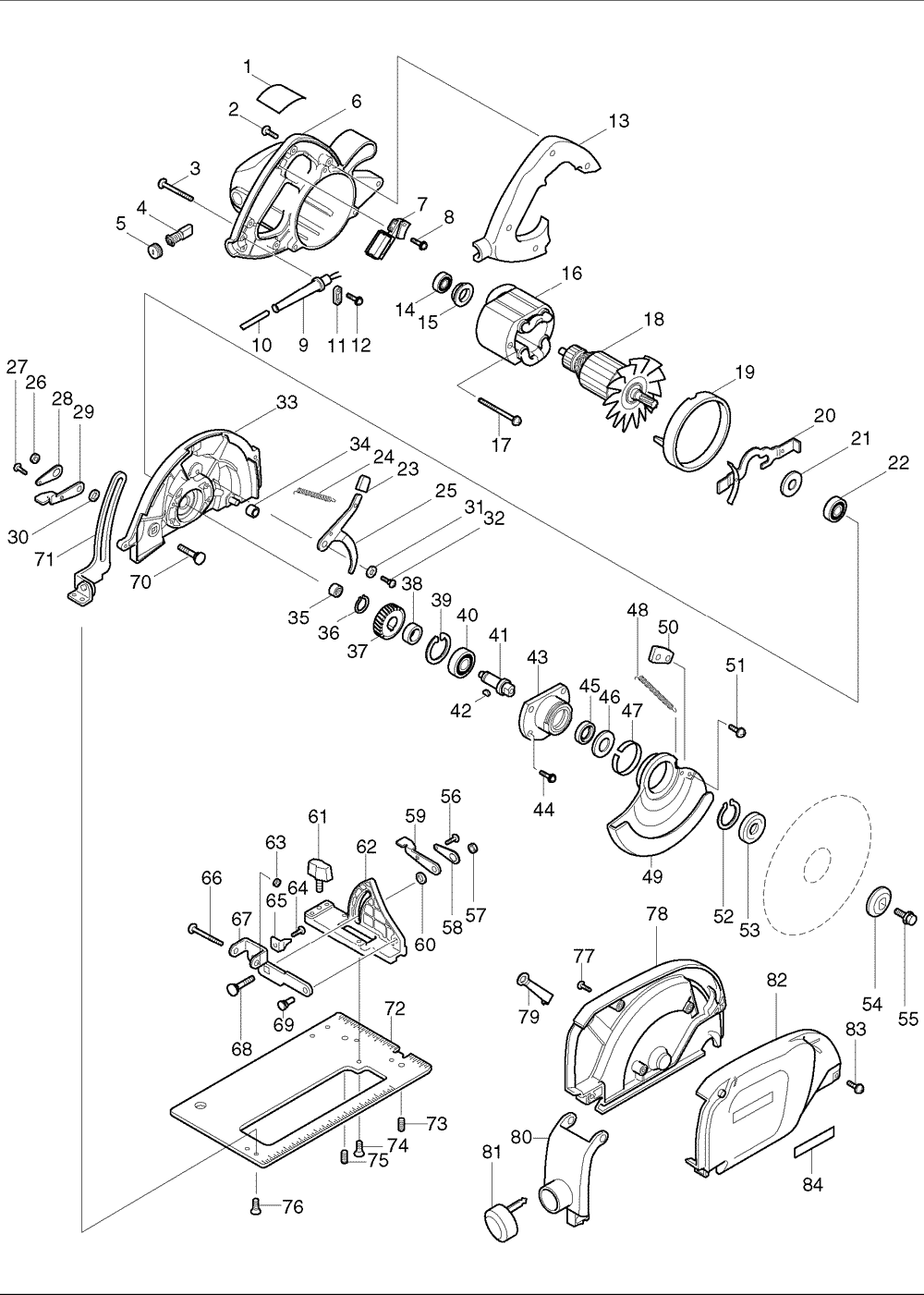

Makita 5057KB Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 851831-8 NAME PLATE, 5057KB $1.21
16 596066-1 FIELD ASS'Y 115V, 5057KB $34.98
2 911148-2 P.H. SCREW M4X25, 5057KB $0.86
18 516606-9 ARMATURE ASS'Y 115V, 5057KB $97.78
3 911273-9 P.H. SCREW M5X50, HR2400 $1.19
80 151978-1 DUST CAP COMPLETE,5057KB $10.43
4 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
5 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
6 151554-1 MOTOR HOUSING, 5007S $21.43
6 153920-8 MOTOR HOUSING CPL., 5057KB $45.08
7 651161-5 SWITCH, 5057KB-T1 $15.16
7 651172-0 SWITCH, 5007FK $14.94
8 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
9 682505-8 CORD GUARD, 2711 $2.51
9 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
10 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
10 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
11 687063-9 STRAIN RELIEF, 4323K $1.26
11 687001-1 STRAIN RELIEF, 6013BR $0.97
12 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
13 410201-6 HANDLE COVER, 5057KB $8.01
14 210005-4 BALL BEARING 608DDW, 9031 $13.07
15 681625-5 INS. WASHER, 5007NK $1.63
16 596066-1 FIELD ASS'Y 115V, 5057KB $34.98
17 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
18 516606-9 ARMATURE ASS'Y 115V, 5057KB $97.78
19 415603-1 FAN GUIDE, 5007NBA $3.06
20 163113-9 SHAFT LOCK, 5057KB $4.49
21 213102-5 DUST SEAL 12, 5057KB $1.63
22 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
23 421676-4 RUBBER CAP, 5057KB $1.52
24 231823-7 TENSION SPRING 4, 5057KB $2.07
25 344759-2 OPEN LEVER, 5057KB $4.49
26 931402-8 HEX NUT M8, 5037NB $1.34
27 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
28 341415-5 LOCK PLATE, 5057KB $1.26
29 341416-3 LEVER PLATE, 5057KB $3.06
30 267003-9 F. WASHER 8, 5057KB $2.18
31 941201-0 F. WASHER 8, 5007NK $0.75
32 251267-5 P.H. SCREW M6, LS1013 $1.96
33 153302-4 GEAR HOUSING COMPLETE,5057KB $43.35
33 152926-3 GEAR HOUSING COMPLETE $34.37
34 262523-8 RUBBER SLEEVE 6, 5044KB $1.52
35 212052-1 N. BEARING 1010, HK1810 $7.46
36 961055-9 RETAINING RING S-15, 5007F $1.19
37 221647-9 HELICAL GEAR, M513 $20.66
37 226532-1 HELICAL GEAR 39, 5007NLK $10.21
38 257064-7 RING 15, 5037NB $1.63
39 962153-2 RETAINING RING R-35,HP2030 $1.48
40 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
41 323897-3 SPINDLE, 5057KB-T1 $12.63
41 324257-2 SPINDLE, 5057KB $11.97
42 254032-1 WOODRUFF KEY 5, 5037NB $1.63
43 317187-4 HOUSING W/O BEARING, 5057KB $13.29
44 911126-2 P.H. SCREW M4X16, 5402NA $0.53
45 213319-0 OIL SEAL 20, 5057KB $5.92
46 344758-4 LABYRINTH RING, 5057KB $1.26
47 344808-5 THICKNESS RING, 5057KB $3.06
48 231806-7 TENSION SPRING 4, 5037NB $2.07
48 231828-7 TENSION SPRING 4, 5007FK $1.63
49 317159-9 SAFETY COVER, 5057KB $18.90
49 318351-0 SAFETY COVER, 5057KB $18.90
50 344760-7 SUB PLATE, 5057KB $5.92
51 911111-5 P.H. SCREW M4X10, LS1011 $0.53
52 961201-4 RETAINING RING S-42, 5007NK $1.96
53 224151-7 INNER FLANGE, 5007FK $7.46
54 224275-9 OUTER FLANGE, 5620DWA $5.92
55 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
56 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
57 931402-8 HEX NUT M8, 5037NB $1.34
58 341415-5 LOCK PLATE, 5057KB $1.26
59 341416-3 LEVER PLATE, 5057KB $3.06
60 267003-9 F. WASHER 8, 5057KB $2.18
61 251858-2 SCREW M6X15, 5007NK $3.61
62 317160-4 ANGULAR PLATE, 5057KB $21.76
63 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
64 911108-4 P.H. SCREW M4X8, LS1013 $0.86
65 344762-3 INDICATION PLATE, 5057KB $3.94
66 265075-8 PAN HEAD SCREW M5, 5057KB $1.96
67 344763-1 ANGULAR GUIDE, 5057KB $4.71
67 345491-1 ANGULAR GUIDE, 5057KB $8.01
68 266227-4 C.S.N. BOLT M8X28, 5057KB $1.34
69 256442-8 SHOULDER PIN 6-7, 5007NHK $1.48
70 265965-5 C.S.N. BOLT M8X24, 5007N & 5477NB $1.96
71 163409-8 DEPTH GUIDE, 5057KB $10.65
72 317186-6 BASE, 5057KB $29.58
74 912212-2 C.S.H. SCREW M5X12, 5007NK $0.53
76 912107-9 C.S.H. SCREW M4X8, 5037NB $0.53
76 265085-5 CSH SCREW M4X8, 5057KB $0.86
77 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
78 151565-6 DUST BOX L COMPLETE, 5057KB $21.76
78 158925-3 DUST BOX L CPL., 5057KB $21.76
79 344761-5 EARTH PLATE, 5057KB $1.63
80 151978-1 DUST CAP COMPLETE,5057KB $10.43
81 421362-7 CAP, 5044KB $3.06
82 188823-7 DUST BOX R SET, 5057KB $31.72
83 911263-2 P.H. SCREW M5X40, 4131 $1.74
84 819003-1 MAKITA LABEL, 5057KB $1.48
85 213621-1 O RING 46, 5007NLK $1.74
1001 164095-8 GUIDE RULE, 4200H $12.60
1002 782016-4 OFFSET WRENCH 13, 5177B $6.40
1003 A-90451 7-1/4 CT BLADE,5057KB FIBER BOARD $64.00
