Makita 5046D Cordless Saw Parts

Makita 5046D Cordless Saw Parts Image

Makita 5046D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

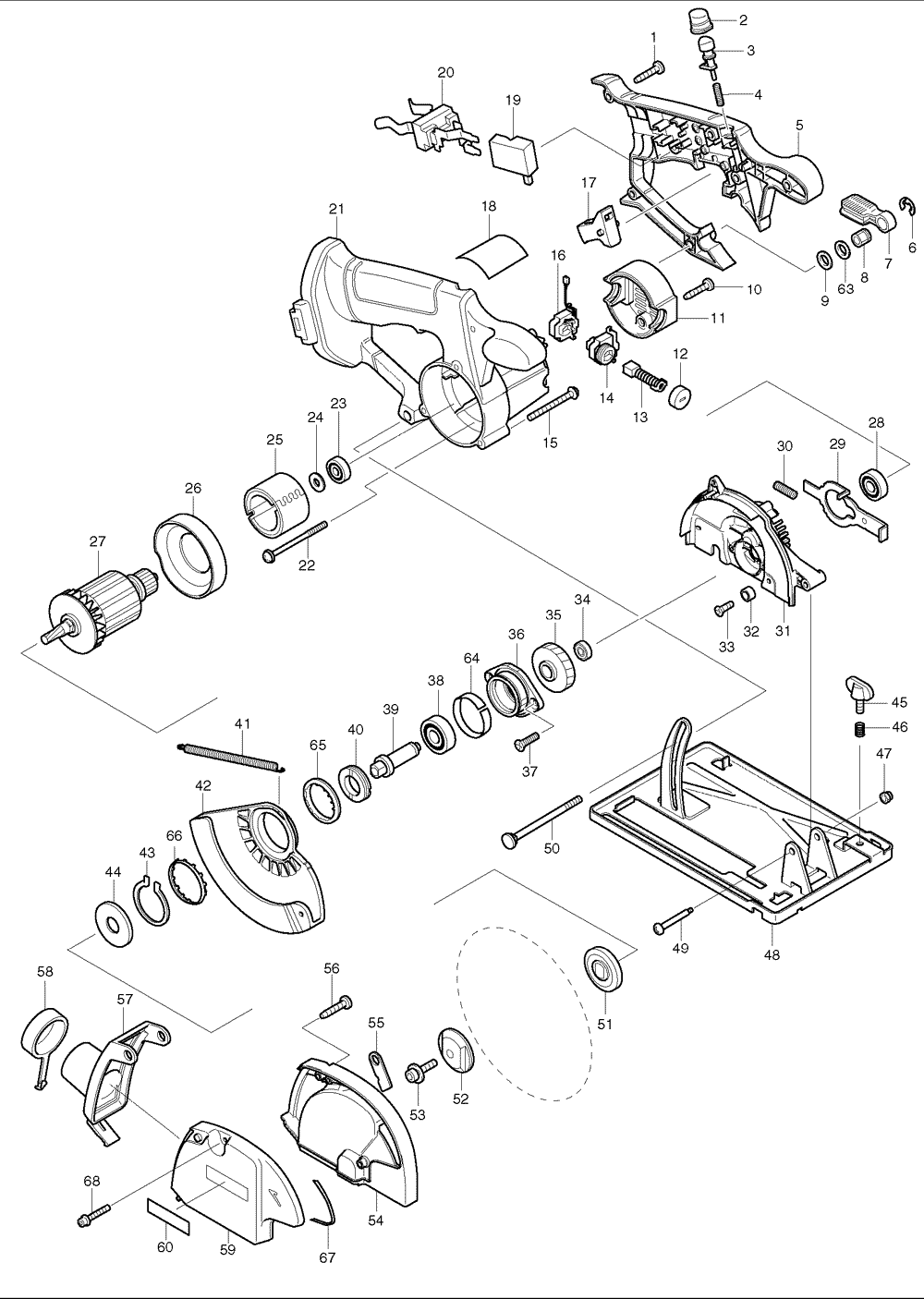

Makita 5046D Cordless Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 421718-4 DUST COVER, 5036DWB $3.06
3 417084-5 SWITCH BUTTON, 5036DWB $1.63
4 233194-8 COMPRESSION SPRING 4, 5620DWA $1.48
5 417170-2 HANDLE COVER, 5621DWA $6.80
6 961014-3 STOP RING E-8, 3901 $0.86
7 272242-8 LEVER 42, 5036DWB $3.06
8 252159-1 HEX. NUT M6, 5036DWB $4.16
9 267004-7 F. WASHER 6, M432 $1.34
10 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
11 416639-3 REAR COVER, 5620DWA $4.49
12 643941-3 HOLDER CAP, BJR181 $4.49
13 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
14 643943-9 BRUSH HOLDER, 5036DWB $4.49
15 911263-2 P.H. SCREW M5X40, 4131 $1.74
16 643944-7 BRUSH HOLDER, 5036DWB $4.49
17 416642-4 SWITCH LEVER, 5620DWA $1.63
18 851916-0 NAME PLATE, 5046D $2.40
19 651956-6 SWITCH, BSS501 $17.25
20 643942-1 BATTERY HOLDER, 5620DWA $10.65
21 416690-3 MOTOR HOUSING, 5036DWB $27.54
22 266209-6 TAPPING SCREW MT 4X60, 5620DWA $1.96
23 210023-2 BALL BEARING 627DDW, 9910 $6.69
24 253823-7 F. WASHER 7, LS1011 $1.34
25 632828-4 YOKE UNIT, 5620DWA $34.98
26 416692-9 BAFFLE PLATE, 5036DWB $4.49
27 510034-0 ARMATURE ASS'Y 18V, 5036DWB $81.60
28 211088-7 BALL BEARING 6000DDW, 9005B $13.07
29 344681-3 SHAFT LOCK, LS711DWBEK $4.49
30 233092-6 COMP. SPRING 5, 5740NB $0.86
31 151845-0 GEAR HOUSING CPL., 5036DWB $40.69
32 262049-0 RUBBER RING 6, HM1303B $1.19
33 251368-9 COUNTERSUNK SCREW M6, 5620DWA $1.74
34 211014-6 B. BEARING 606, 6826 $13.07
34 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
35 226522-4 HELICAL GEAR 53, 5036DWB $11.20
36 317296-9 HOUSING W/O BEARING, 5036DWB $13.18
37 265034-2 C.S.H. SCREW, BCS550 $1.19
38 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
39 323816-9 SPINDLE, 5036DWB $11.75
40 285834-4 BEARING RETAINER, 4200NH $1.52
40 285802-7 BEARING RETAINER 19-33, 5740NB $3.06
41 231821-1 TENSION SPRING 3, BSS610 $4.16
42 151818-3 SAFETY COVER COMPLETE, 5036DWB $13.18
43 961155-5 RETAINING RING S-38, 4200H $1.96
44 267750-2 CUP WASHER 16, 5036DWB $4.16
45 265701-9 SCREW M6X14, 5177B $1.96
46 231316-4 COMP. SPRING 7, 5005BA $0.79
47 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
48 165279-1 BASE, 5036DWB $33.55
49 265056-2 PAN HEAD SCREW M5, 5620DWA,SH01W $3.61
50 266195-1 CAP SQUARE BOLT M6X90,5044KB $4.93
51 224151-7 INNER FLANGE, 5007FK $7.46
52 224275-9 OUTER FLANGE, 5620DWA $5.92
53 266024-8 H.S.H. BOLT M6X20, 5740NB $2.40
54 417100-3 DUST BOX L, 5046DWB $10.65
55 344838-6 EARTH PLATE, 5036DWB $1.26
56 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
57 151817-5 DUST CAP COMPLETE, 5026DWB $5.92
58 421362-7 CAP, 5044KB $3.06
59 417106-1 DUST BOX R, 5046DWB $9.33
60 819064-1 MAKITA MARK, 5402NA $1.26
63 267004-7 F. WASHER 6, M432 $1.34
64 344725-9 THICKNESS RING, 5044KB $3.06
65 344857-2 SPACER, 5036DWB $1.26
66 344857-2 SPACER, 5036DWB $1.26
67 421729-9 PACKING (A),5036DWB $4.49
68 265474-4 HEX. SOCKET HEAD BOLT M6X30,5036DWB $1.96
1001 164095-8 GUIDE RULE, 4200H $12.60
1002 414938-7 BATTERY COVER, 6222DWE $2.20
1003 783203-8 HEX WRENCH 5, 2708 $3.24
1005 A-90685 6-1/4 SAW BLADE, 46T, 5046DWB $68.20
2002 134896-8 DUST BOX ASS'Y, 5046DWB $25.17
