Makita 5014NB Electric Saw Parts

Makita 5014NB Electric Saw Parts Image

Makita 5014NB Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

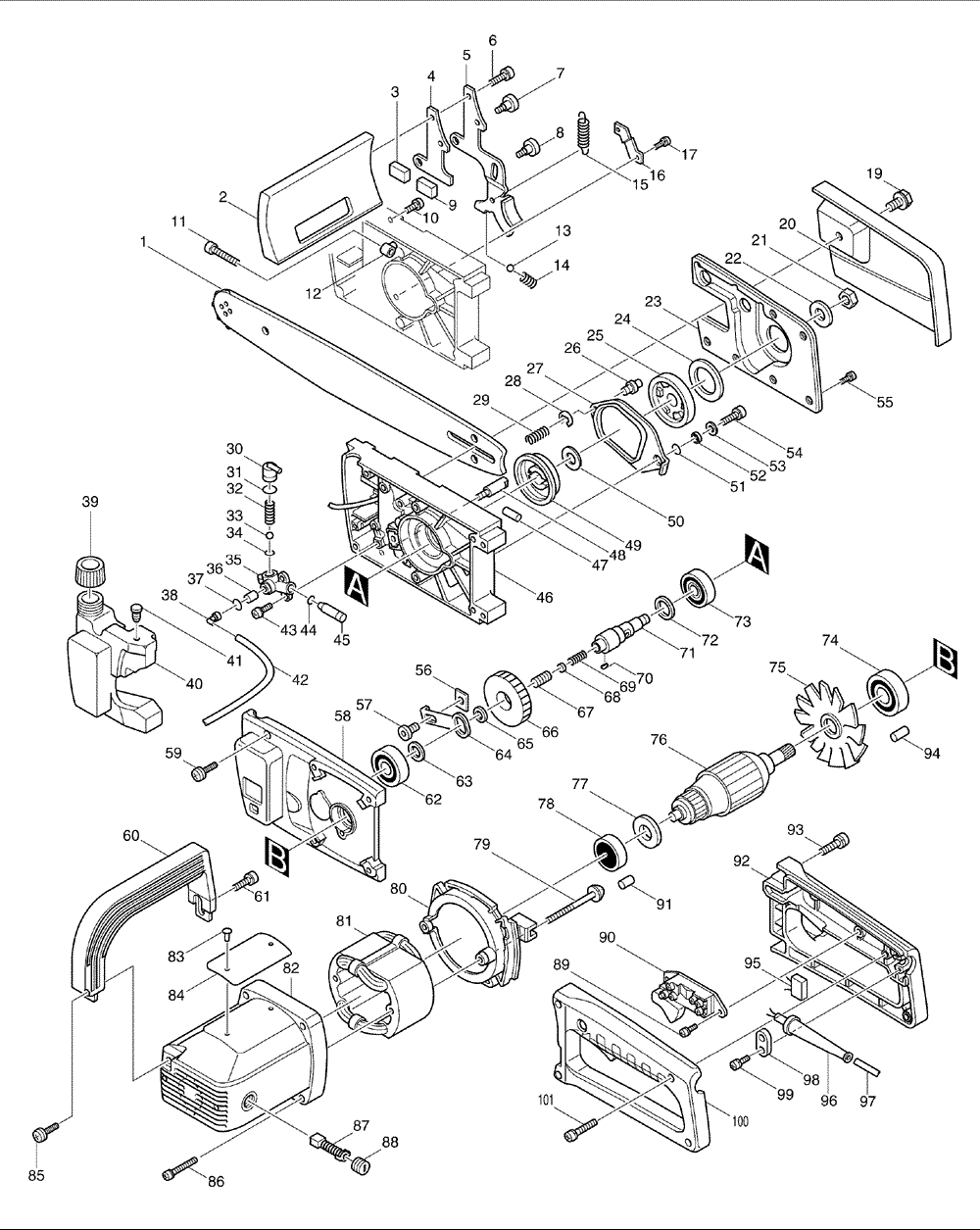

Makita 5014NB Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
35 134374-8 OIL VESSEL CPL.,5014NB $19.23
2 155778-1 PROTECTOR, 5014NB $11.75
90 651040-7 SWITCH, 5014NB $14.94
3 423120-7 PACKING, 5014NB $0.82
76 514795-4 ARMATURE ASSEMBLY, 5016B $79.50
4 342905-1 SUPPORTER PLATE, 5014NB $5.15
5 168146-9 BRAKE LEVER, 5014NB $24.84
6 911221-8 P.H. SCREW M5X16, JR3000V $0.86
7 265861-7 H.S.H. BOLT M6, 5014NB $5.15
8 265862-5 H.S.H. BOLT M6, 5014NB $5.15
9 423120-7 PACKING, 5014NB $0.82
10 911213-7 P.H. SCREW M5X12, LS1040 $0.86
11 251426-1 SCREW M5X40, 5014NB $1.41
12 325549-2 ADJUST PIN, 5014NB $5.15
13 216011-7 STEEL BALL 5.6, 6222DWE $0.86
14 231445-3 COMP. SPRING 4, 5014NB $2.07
15 231778-6 TEN. SPRING 9, 5014NB $3.50
16 342870-4 COVER PLATE, 5014NB $1.41
17 911111-5 P.H. SCREW M4X10, LS1011 $0.53
19 251697-0 H.F.H. BOLT M8X17, 5012B $1.85
20 342871-2 CHAIN COVER, 5014NB $16.70
21 252043-0 HEX NUT M8-13, 5012B $1.34
22 267009-7 F. WASHER 8, 5014NB $3.72
23 155751-1 DUST COVER, 5014NB $11.42
24 213417-0 DUST SEAL 30, 5014NB $1.08
25 152274-0 SPROCKET, 5014NB $61.50
26 256421-6 PIN 6, 5014NB $1.85
27 342869-9 CLUTCH PRESSURE, 5014NB $13.40
28 961017-7 STOP RING E-3, 4304, SH01 $0.53
29 231372-4 COMP. SPRING 5, 5014NB $1.34
30 410525-0 NOZZLE (B), 5014NB $3.50
31 213007-9 O RING 8, AF502 $0.82
32 231400-5 COMP. SPRING 3, 5014NB $1.34
33 216001-0 STEEL BALL 3.5, 6800DBV $0.53
34 213022-3 O RING 3, 5014NB $0.82
35 134374-8 OIL VESSEL CPL.,5014NB $19.23
36 423135-4 FILTER, 5014NB $0.66
37 213054-0 O RING 9, 5014NB $0.82
38 410524-2 NOZZLE (A), 5014NB $3.50
39 242042-0 CAP, 5014NB $3.50
40 134374-8 OIL VESSEL CPL.,5014NB $19.23
41 421298-0 CHECK VALVE, 5014NB $5.15
42 134374-8 OIL VESSEL CPL.,5014NB $19.23
43 911118-1 P.H. SCREW M4X12, 6221D $0.86
44 213022-3 O RING 3, 5014NB $0.82
45 321946-0 PLUNGER, 5014NB $5.15
46 157517-5 GEAR HOUSING, 5014NB $61.20
47 256152-7 PIN 6, 5014NB $3.50
48 321396-9 CHAIN CATCHER, 5014NB $5.15
49 223067-3 CLUTCH CAM, 5014NB $52.50
50 253878-2 F. WASHER 10, 4301BV $1.63
51 257113-0 RING 5, 5014NB $1.85
52 253308-3 T. WASHER 6, JN1600 $1.01
53 253184-5 F. WASHER 5, 5090DW $1.01
54 911221-8 P.H. SCREW M5X16, JR3000V $0.86
55 911111-5 P.H. SCREW M4X10, LS1011 $0.53
56 342874-6 SLIDER PLATE, 5014NB $1.41
57 265863-3 H.S.H. BOLT M6, 5014NB $5.15
58 157556-5 GEAR HOUSING COVER, 5014NB $39.27
59 911231-5 P.H. SCREW M5X20, HR4002 $0.86
60 273620-5 GRIP, 5014NB $34.88
61 911221-8 P.H. SCREW M5X16, JR3000V $0.86
62 211101-1 BALL BEARING 6001LLB,9218PB $13.07
63 253084-9 F. WASHER 12, 5014NB $1.63
64 342873-8 SLIDER, 5014NB $5.15
65 253771-0 F. WASHER 16, LS1011 $1.63
66 221741-7 H. GEAR 53, 5014NB $22.64
67 913426-6 SET SCREW M8X16, 5014NB $1.85
68 342876-2 PLATE, 5014NB $0.82
69 231271-0 COMP. SPRING 4, 5014NB $1.63
70 254032-1 WOODRUFF KEY 5, 5037NB $1.63
71 321860-0 SPINDLE, 5014NB $30.70
72 267011-0 F. WASHER 17, 5014NB $1.34
73 211251-2 B.BEARING 6003LLB, 5277B $15.27
74 211106-1 B. BEARING 6201LLB, 9227C $13.07
75 241093-0 FAN $3.50
76 514795-4 ARMATURE ASSEMBLY, 5016B $79.50
78 211068-3 B. BEARING 6200LB, 6820V $10.98
79 911295-9 P.H. SCREW M5X70 5014NB $1.85
80 410519-5 BAFFLE PLATE, 5014NB $6.80
82 159111-9 MOTOR HOUSING, 5014NB $52.50
83 953106-2 RIVET 0-5, HM1500 $0.49
84 855234-8 NAME PLATE, 5014NB $2.51
85 911231-5 P.H. SCREW M5X20, HR4002 $0.86
86 911273-9 P.H. SCREW M5X50, HR2400 $1.19
87 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
88 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
89 911101-8 P.H. SCREW M4X6, LS1020 $0.53
90 651040-7 SWITCH, 5014NB $14.94
91 263013-4 RUBBER PIN 4, 1806B $1.48
92 181861-8 HANDLE SET, 5014NB $33.76
93 911228-4 P.H. SCREW M5X18, 5377MG $0.86
94 263002-9 RUBBER PIN 4, 5007NK $0.86
96 682505-8 CORD GUARD, 2711 $2.51
96 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
98 687001-1 STRAIN RELIEF, 6013BR $0.97
99 911133-5 P.H. SCREW M4X18, N9501B $0.86
100 181861-8 HANDLE SET, 5014NB $33.76
101 911153-9 P.H. SCREW M4X28, JR3000V $0.86
102 410630-3 SAFETY COVER, 5014NB $5.15
103 911238-1 P.H. SCREW M5X22, GA7001L $0.82
401 182229-1 OIL SUPPLY 100CC, UC120DWA $5.33
403 744003-1 FILE, 5012B $7.99
901 158024-1 HOOK CPL., UC3530A $6.69
