Makita 5012B Electric Saw Parts

Makita 5012B Parts

12 Inch Electric Chain Saw.

Download Schematic

Time to buy a new tool?

Makita 5012B

12 Inch Electric Cha...

$226.99

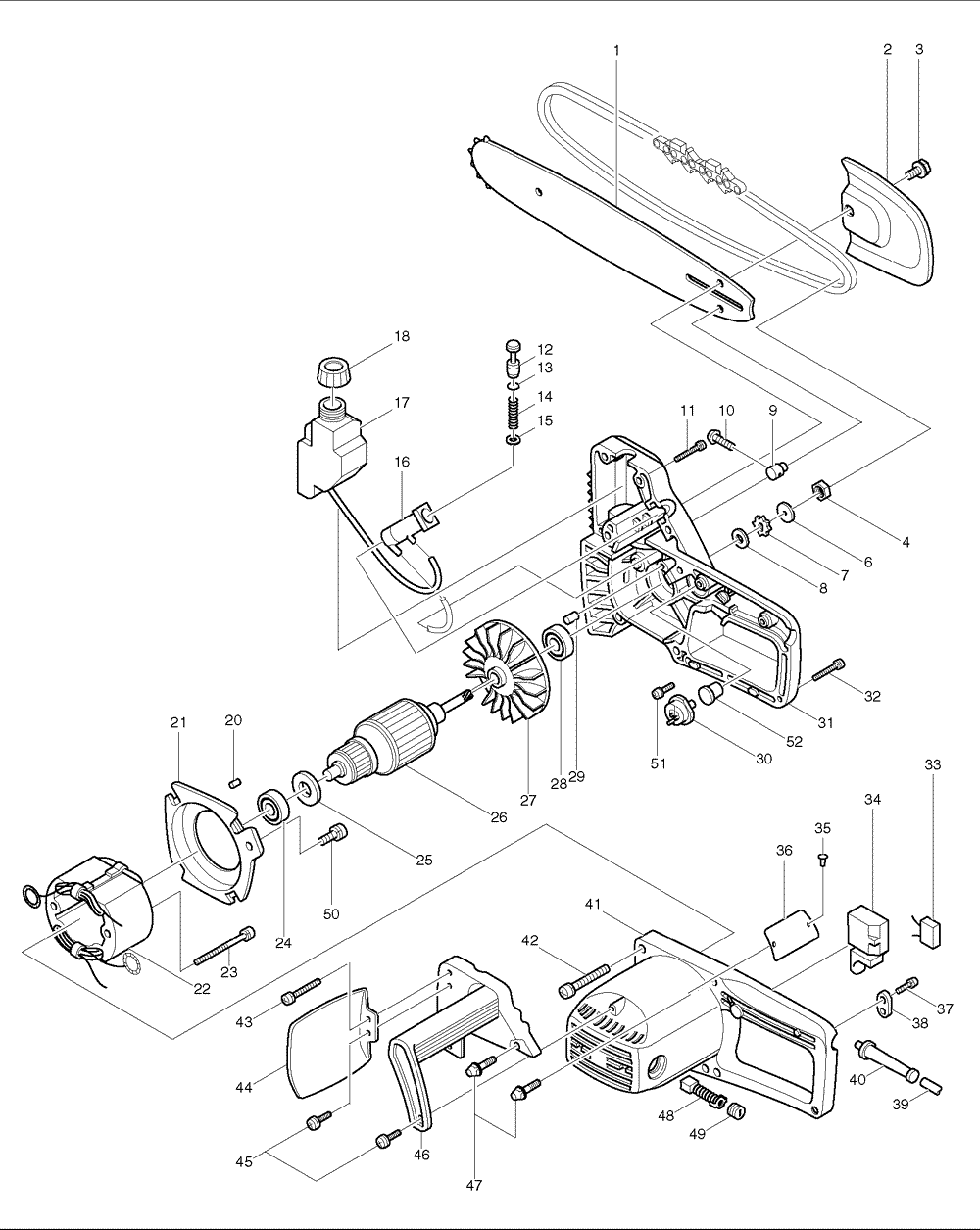

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	163150-3	12 GUIDE BAR, 5012B (T2)	$62.90
2	341561-4	CHAIN COVER, 5012B	$8.45
00	412035-3	TUBE 3, 5012B	$1.85
3	251697-0	H.F.H. BOLT M8X17, 5012B	$1.85
48	181047-4	CARBON BRUSH SET 154,5402A	$8.99
48	K21	Carbon Brush Set Replaces Makita (CB-154), 18104...	$8.50
26	518420-9	ARMATURE, 5012B	$87.80
4	252070-7	HEX LOCK NUT M8-13, 5012B	$1.96
22	524581-5	FIELD, 5012B	$73.40
41	159082-0	MOTOR HOUSING, 5012B	$46.92
6	253814-8	F. WASHER 8, 5012B	$1.63
16	152252-0	CASING COMPLETE, 5012B	$10.32
7	221514-8	SPROCKET 6, 5012B	$10.10
46	411737-8	SIDE GRIP, 5012B	$18.24
8	253813-0	F. WASHER 12, 2708	$1.63
31	156831-6	MOTOR HOUSING COVER, 5012B	$32.94
9	321260-4	ADJUST PIN, 5012B	$3.50
10	251210-4	P.H. SCREW M5X25, 5012B	$1.08
17	155811-9	OIL RESERVOIR (W/TUBE), 5012B	$5.15
11	911263-2	P.H. SCREW M5X40, 4131	$1.74
10	251210-4	P.H. SCREW M5X25, 5012B	$1.08
12	321261-2	PLUNGER, 5012B	$8.45
13	213003-7	O RING 6, 5012B	$1.08
14	231294-8	COMP. SPRING 6, 5012B	$1.63
15	253811-4	F. WASHER 5, 5007NK	$1.34
16	152252-0	CASING COMPLETE, 5012B	$10.32
17	155811-9	OIL RESERVOIR (W/TUBE), 5012B	$5.15
18	242022-6	CAP, 5012B	$3.50
20	263005-3	RUBBER PIN 6, BHP452	$0.86
21	411736-0	BAFFLE PLATE, 5012B	$3.50
22	524581-5	FIELD, 5012B	$73.40
23	911290-9	P.H. SCREW M5X65, GA7911	$1.96
24	211068-3	B. BEARING 6200LB, 6820V	$10.98
25	681623-9	INS. WASHER, 2012NB	$1.63
26	518420-9	ARMATURE, 5012B	$87.80
27	241632-6	FAN 90, 5012B	$6.80
28	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
29	263005-3	RUBBER PIN 6, BHP452	$0.86
30	652518-3	OVERLOAD PROTECTOR, 5012B	$26.49
31	156831-6	MOTOR HOUSING COVER, 5012B	$32.94
32	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
35	953106-2	RIVET 0-5, HM1500	$0.49
36	815477-4	NAME PLATE, 5012B	$2.51
37	911133-5	P.H. SCREW M4X18, N9501B	$0.86
38	687001-1	STRAIN RELIEF, 6013BR	$0.97
40	682504-0	CORD GUARD 10-85, 4200H	$2.51
41	159082-0	MOTOR HOUSING, 5012B	$46.92
42	911273-9	P.H. SCREW M5X50, HR2400	$1.19
43	911263-2	P.H. SCREW M5X40, 4131	$1.74
44	411747-5	PROTECTOR, 5012B	$5.15
45	911233-1	P.H. SCREW M5X20, TW1000	$0.86
46	411737-8	SIDE GRIP, 5012B	$18.24
47	911253-5	P.H. SCREW M5X30, 2030S	$1.19
48	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
48	K21	Carbon Brush Set Replaces Makita (CB-154), 18104...	$8.50
49	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
50	911118-1	P.H. SCREW M4X12, 6221D	$0.86
51	911109-2	P.H. SCREW M4X8, HR2210	$0.86
52	410646-8	RELAY COVER, 410	$3.06
400	182229-1	OIL SUPPLY 100CC, UC120DWA	$5.33
402	744003-1	FILE, 5012B	$7.99
405	791172-9	12 CHAIN BLADE, 5012B	$39.34
900	321396-9	CHAIN CATCHER, 5014NB	$5.15
902	158024-1	HOOK CPL., UC3530A	$6.69
