Makita 5008NBA Electric Saw Parts

Makita 5008NBA Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

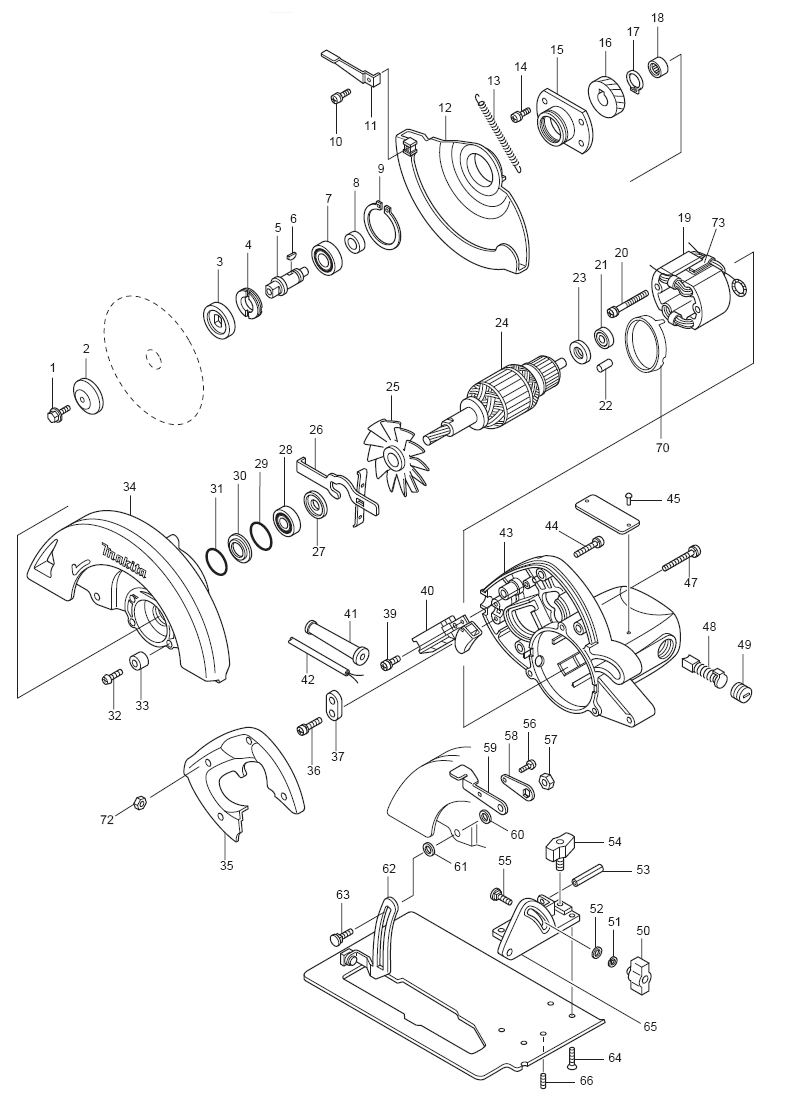

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251644-1	H.F.H. BOLT M8X20, 5037NB	$2.40
2	224275-9	OUTER FLANGE, 5620DWA	$5.92
3	224151-7	INNER FLANGE, 5007FK	$7.46
4	285807-7	BEARING RETAINER 22-36, 5008FA	$3.06
5	323789-6	SPINDLE, 5008NB	$10.32
6	254032-1	WOODRUFF KEY 5, 5037NB	$1.63
7	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
8	257064-7	RING 15, 5037NB	$1.63
9	961201-4	RETAINING RING S-42, 5007NK	$1.96
10	911111-5	P.H. SCREW M4X10, LS1011	$0.53
10	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
11	341417-1	LEVER, 5007FK	$1.63
12	315325-2	SAFETY COVER, 5008FA	$30.90
13	231753-2	TEN. SPRING 5, 5008NBA	$4.16
14	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
15	321362-6	HOUSING W/O BEARING, 5008NBA	$27.59
16	221687-7	H. GEAR, 5008NBA	$21.32
17	961055-9	RETAINING RING S-15, 5007F	$1.19
18	212052-1	N. BEARING 1010, HK1810	$7.46
19	636071-7	FIELD, 5007NBA-T2	$44.16
19	654020-2	GARTER SPRING, 5007NK	$1.34
19	654502-4	CONNECTOR P-2(GARTER SPRING), 5007NK	$0.90
20	266046-8	T. SCREW FLANGE PT5X50,HR2010	$1.96
21	211033-2	B. BEARING 608LB, 5091D	$8.78
22	263002-9	RUBBER PIN 4, 5007NK	$0.86
23	681625-5	INS. WASHER, 5007NK	$1.63
25	241513-4	FAN 92, 5007NB	$4.16
26	163113-9	SHAFT LOCK, 5057KB	$4.49
27	213102-5	DUST SEAL 12, 5057KB	$1.63
28	211106-1	B. BEARING 6201LLB, 9227C	$13.07
29	213459-4	O RING 32, HK1810	$1.19
30	341736-5	WASHER 25, 5008B, 5008NBA	$1.63
31	213412-0	O RING 29, 5008NBA	$1.96
32	251350-8	C.H. SCREW M6X28, 5277B	$1.96
33	262553-9	RUBBER SLEEVE 6, 5277NB,5377MG	$1.52
34	154888-1	BLADE CASE CPL.,5008FA	$97.80
34	321062-8	HOOK PIN, 5005BA	$1.26
35	416889-0	HANDLE COVER, 5007NBA	$4.16
36	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
37	687063-9	STRAIN RELIEF, 4323K	$1.26
39	266020-6	TAPPING SCREW 4x12, BO4556	$1.19
40	651042-3	SWITCH, 5007NBA, M514	$23.96
41	682505-8	CORD GUARD, 2711	$2.51
41	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
42	664265-4	CORD (2X16X8;SJ), 5007NBA	$17.25
42	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
43	643660-1	BRUSH HOLDER 6.5-13.5, LS1016L	$4.49
43	152928-9	MOTOR HOUSING COMPLETE, 5007NBA	$21.10
43	643660-1	BRUSH HOLDER 6.5-13.5, LS1016L	$4.49
43	643653-8	BRUSH HOLDER, 5007F	$4.49
43	913206-0	SET SCREW M5X8, GA7911	$1.19
44	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
45	953106-2	RIVET 0-5, HM1500	$0.49
47	911273-9	P.H. SCREW M5X50, HR2400	$1.19
48	181047-4	CARBON BRUSH SET 154,5402A	$8.12
48	K21	Carbon Brush Set	$8.19
48	181048-2	CARBON BRUSH 155, HR5000	$14.94
48	K21	Carbon Brush Set	$8.19
49	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
50	252624-0	KNOB M6, 5007NB	$3.06
51	942151-2	SPRING WASHER 6, 5007NB	$0.90
52	941151-9	F. WASHER 6, 5007NB	$0.75
53	951225-8	SPRING PIN 6-40, 5007NBA	$1.63
54	251858-2	SCREW M6X15, 5007NK	$3.61
55	251920-3	C.S.N. BOLT M6X30, 5007NB	$1.34
56	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
57	931402-8	HEX NUT M8, 5037NB	$1.34
58	341415-5	LOCK PLATE, 5057KB	$1.26
59	341416-3	LEVER PLATE, 5057KB	$3.06
60	941201-0	F. WASHER 8, 5007NK	$0.75
61	267096-6	FLAT WASHER 8, 5008FA	$1.01
62	163250-9	BASE, 5008FA	$51.20
63	265965-5	C.S.N. BOLT M8X24, 5007N & 5477NB	$1.96
64	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
64	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
65	163253-3	ANGULAR PLATE, 5008NB (TYPE 2)	$23.19
66	266213-5	H.S.H. SCREW M5X12,2012NB	$1.48
70	415603-1	FAN GUIDE, 5007NBA	$3.06
72	931102-0	HEX NUT M4, 2711	$0.79
100	652021-4	SWITCH SCREW ,5007FAK	$0.49
101	654001-6	TERMINAL R1.25-3.5, 5007NK	$0.75
102	654510-5	INSULATED CONNECTOR 5.5-SD,MT240	$0.97
A02	782016-4	OFFSET WRENCH 13, 5177B	$6.40
A03	164095-8	GUIDE RULE, 4200H	$12.60
