Makita 5008MGA Electric Saw Parts

Makita 5008MGA Parts

8-1/4 Inch Magnesium Circular Saw with L.E.D. Lights and Electric Brake

Download Schematic

Time to buy a new tool?

Makita 5008MGA

8-1/4 Inch Magnesium...

$218.99

Free Shipping

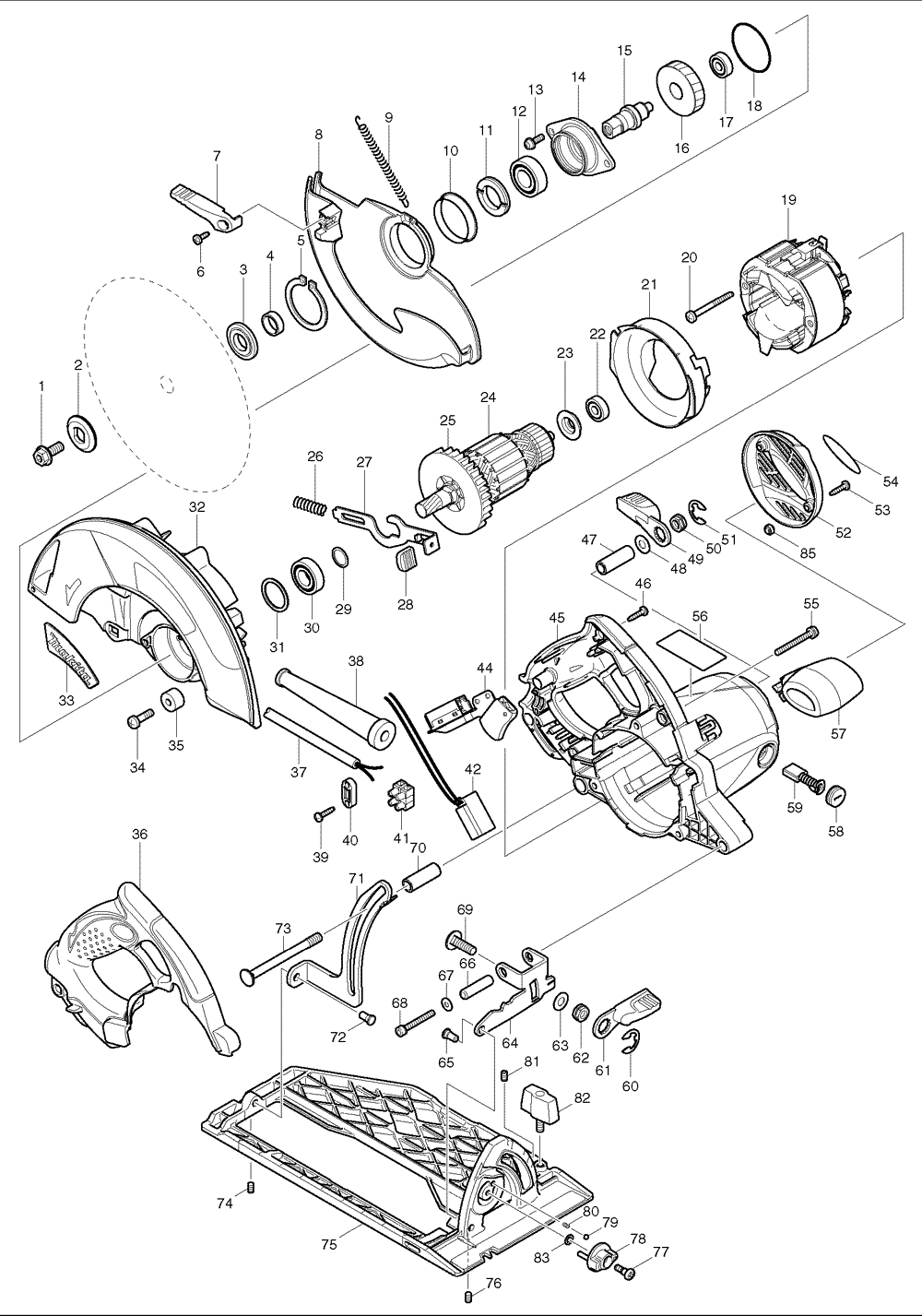

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	266283-4	H.S.H.BOLT M8X20, 5007NK	$3.24
00	816893-3	SCALE PLATE, 5008MGA	$1.26
2	224409-4	OUTER FLANGE 35, 5007NK	$2.84
00	816895-9	SCALE PLATE, 5008MGA	$1.52
3	224411-7	INNER FLANGE 35, 5007NK	$1.52
4	257279-6	RING 16, 5007NK	$1.19
5	961201-4	RETAINING RING S-42, 5007NK	$1.96
6	266398-7	T.SCREW BIND CT 4X12, 5007NK	$0.53
7	272252-5	LEVER 65, 5007MG	$1.74
8	318175-4	SAFETY COVER, 5008MGA	$15.93
9	231848-1	TENSION SPRING 4, 5008MGA	$3.61
10	345422-0	SPACER, 5007NK	$1.26
11	285848-3	BEARING RETAINER 23-36, 5007NK	$1.52
12	211275-8	BALL BEARING 6003DDW, 5007NK	$19.56
13	911223-4	P.H. SCREW M5X16, 5007NK	$0.86
14	318056-2	HOUSING W/O BEARING,5007NK	$3.17
15	324690-8	SPINDLE, 5007NK	$4.93

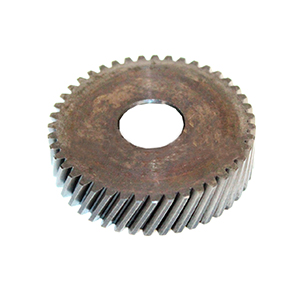

16	226662-8	HELICAL GEAR 43, 5008MGA	$5.92
17	211031-6	BALL BEARING 608LLB, 9227C	$10.98
18	213623-7	O RING 46, 5007NK	$0.86
19	596291-4	FIELD ASSY 115V, 5007MGA	$26.82
20	266397-9	T.SCREW BIND 5X50, 5007NK	$0.53
21	419548-5	BAFFLE PLATE, 5007NK	$1.41
22	211031-6	BALL BEARING 608LLB, 9227C	$10.98
23	681625-5	INS. WASHER, 5007NK	$1.63
24	517761-0	ARMATURE ASS'Y 115V, 5008MGA	$43.24
25	240003-4	FAN 80, 5007NK	$4.16
26	231297-2	COMP. SPRING 9, 5007NK	$1.63
27	345717-1	SHAFT LOCK, 5007NK	$1.74
28	286275-7	CAP, 5007MG	$0.86
29	267280-3	FLAT WASHER 15, 5007NK	$1.01
30	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
31	261132-0	URETHANE WASHER 26, 5007NK	$1.34
32	188447-9	BLADE CASE SET, 5008MGA	$28.56
33	819234-2	MAKITA LOGO PLATE, 5007MG	$1.34
34	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
35	262552-1	RUBBER SLEEVE 6, 5007NK	$1.74
36	419553-2	HANDLE COVER, 5007MG	$7.68
38	682564-2	CORD GUARD, 5007NK	$4.16
38	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
39	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
40	687124-5	STRAIN RELIEF, 5007NK	$0.75
41	654531-7	TERMINAL BLOCK 2P, 5007MG	$4.49
42	631709-9	LIGHT CIRCUIT, 5007MG	$11.09
45	158099-0	MOTOR HOUSING CPL.,5007MG	$24.18
46	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
47	331719-3	PIPE 9, 5007NK	$1.48
48	941201-0	F. WASHER 8, 5007NK	$0.75
49	272253-3	LEVER 56, 5007MG	$1.74
50	252199-9	HEX. NUT M8-13, 5007NK	$1.34
51	257953-6	BOW STOP RING E-12, 5007NK	$1.19
52	188448-7	REAR COVER SET, 5007MG	$6.80
53	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
54	819237-6	MAKITA LOGO LABEL, 5007MG	$0.86
55	911268-2	P.H. SCREW M5X45, 5007NK	$1.19
56	864006-0	NAME PLATE, 5008MGA	$1.48
57	419550-8	FRONT GRIP, 5007MG	$4.71
58	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
59	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
60	257953-6	BOW STOP RING E-12, 5007NK	$1.19
61	272253-3	LEVER 56, 5007MG	$1.74
62	252199-9	HEX. NUT M8-13, 5007NK	$1.34
63	941201-0	F. WASHER 8, 5007NK	$0.75
64	345835-5	ANGLER GUIDE, 5008MGA	$2.84
65	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
65	256511-5	SHOULDER PIN 6-7, 5007MG	$0.86
66	257759-2	SLEEVE 6, 5007NK	$1.48
67	941101-4	F. WASHER 5, 5007NK	$0.75
68	922261-1	H.S.H. BOLT M5X40, 5007NK	$1.96
69	266396-1	F.S.N.BOLT M8X24, 5007MG	$1.34
70	331719-3	PIPE 9, 5007NK	$1.48
71	345833-9	DEPTH GUIDE, 5008MGA	$4.16
72	256480-0	SHOULDER PIN 6-7, 5740NB	$0.86
72	256511-5	SHOULDER PIN 6-7, 5007MG	$0.86
73	266237-1	C.S.N. BOLT M8X90, 5007NK	$3.28
74	266229-0	HEX.SCREW M5X8, 4200N	$1.19
75	158424-5	BASE CPL., 5008MGA	$23.96
76	266229-0	HEX.SCREW M5X8, 4200N	$1.19
77	251370-2	PAN HEAD SCREW, 5007NK	$1.74
78	419549-3	DIAL 27, 5007MG	$1.41
79	216008-6	STEEL BALL 4.0, 5007NK	$0.53
80	233314-4	COMPRESSION SPRING 4, 5007NK	$1.63
81	266229-0	HEX.SCREW M5X8, 4200N	$1.19
82	251858-2	SCREW M6X15, 5007NK	$3.61
83	253811-4	F. WASHER 5, 5007NK	$1.34
85	450351-5	SPACER, 5007MG	$0.75
1001	164095-8	GUIDE RULE, 4200H	$12.60
1002	783204-6	HEX WRENCH 6, 3705, HR5000	$3.40
1003	D-21521	8-1/4 SAW BLADE, 5008FA	$25.00
