Makita 5008FA Electric Saw Parts

Makita 5008FA Parts

8-1/4 Inch Circular Saw (Replacement of 5008MGA)

Download Schematic

Time to buy a new tool?

Makita 5008FA

8-1/4 Inch Circular ...

$191.99

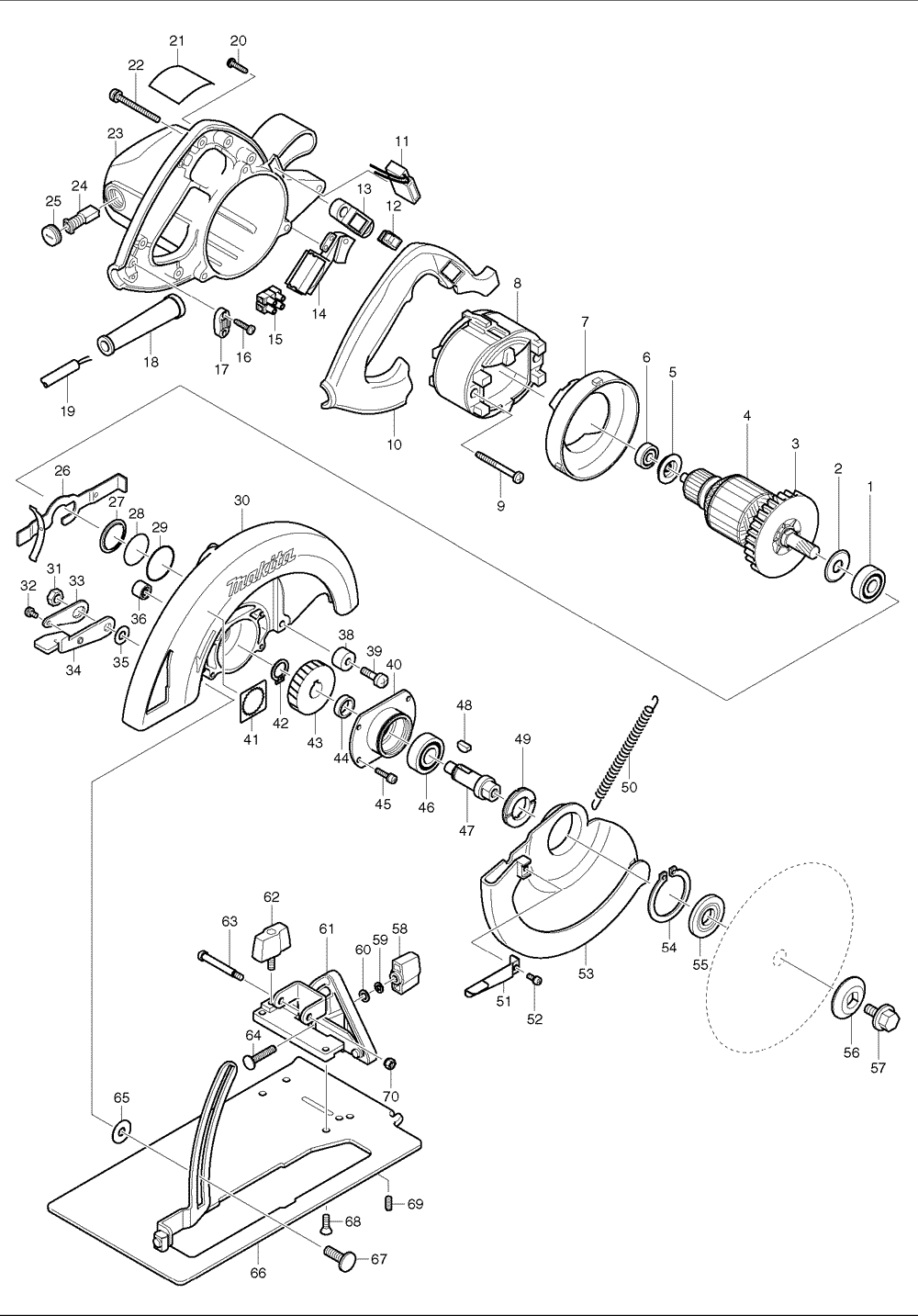

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	211106-1	B. BEARING 6201LLB, 9227C	$13.07
2	213102-5	DUST SEAL 12, 5057KB	$1.63
3	240003-4	FAN 80, 5007NK	$4.16
4	510057-8	ARMATURE ASS'Y, 5007FK	$45.49
5	681625-5	INS. WASHER, 5007NK	$1.63
6	211033-2	B. BEARING 608LB, 5091D	$8.78
7	417711-4	BAFFLE PLATE, 5007FAK	$1.26
8	596231-2	FIELD, 5007FAK	$31.51
9	266046-8	T. SCREW FLANGE PT5X50,HR2010	$1.96
10	417712-2	HANDLE COVER, 5007FAK	$4.16
11	631453-8	LIGHT CIRCUIT, 5007FK	$20.55
12	651514-8	SWITCH, 5007FK	$7.02
13	417468-7	FRAME, 5007FAK	$2.84
14	651042-3	SWITCH, 5007NBA, M514	$23.96
15	654531-7	TERMINAL BLOCK 2P, 5007MG	$4.49
16	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
17	687052-4	STRAIN RELIEF, HM1500B	$1.26
18	682505-8	CORD GUARD, 2711	$2.51
18	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
19	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
19	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
20	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
22	911273-9	P.H. SCREW M5X50, HR2400	$1.19
23	152989-9	MOTOR HOUSING CPL., 5007F	$23.74
24	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
25	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
26	163113-9	SHAFT LOCK, 5057KB	$4.49
27	341736-5	WASHER 25, 5008B, 5008NBA	$1.63
28	213412-0	O RING 29, 5008NBA	$1.96
29	213459-4	O RING 32, HK1810	$1.19
30	153305-8	BLADE CASE COMPLETE, 5008NB	$31.72
30	154888-1	BLADE CASE CPL.,5008FA	$97.80
31	931402-8	HEX NUT M8, 5037NB	$1.34
32	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
33	341415-5	LOCK PLATE, 5057KB	$1.26
34	341416-3	LEVER PLATE, 5057KB	$3.06
35	941201-0	F. WASHER 8, 5007NK	$0.75
36	212052-1	N. BEARING 1010, HK1810	$7.46
38	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
38	262553-9	RUBBER SLEEVE 6, 5277NB,5377MG	$1.52
39	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
39	251350-8	C.H. SCREW M6X28, 5277B	$1.96
40	321362-6	HOUSING W/O BEARING, 5008NBA	$27.59
41	818988-8	INDICATION LABEL (WITH ELECTRIC BRAKE),5008FA	$0.45
42	961055-9	RETAINING RING S-15, 5007F	$1.19
43	221687-7	H. GEAR, 5008NBA	$21.32
44	257064-7	RING 15, 5037NB	$1.63
45	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
46	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
47	323789-6	SPINDLE, 5008NB	$10.32
48	254032-1	WOODRUFF KEY 5, 5037NB	$1.63
49	285807-7	BEARING RETAINER 22-36, 5008FA	$3.06
50	231753-2	TEN. SPRING 5, 5008NBA	$4.16
50	231838-4	TENSION SPRING 4, 5008FA	$1.96
51	341417-1	LEVER, 5007FK	$1.63
52	911111-5	P.H. SCREW M4X10, LS1011	$0.53
53	315325-2	SAFETY COVER, 5008FA	$30.90
54	961201-4	RETAINING RING S-42, 5007NK	$1.96
55	224151-7	INNER FLANGE, 5007FK	$7.46
56	224275-9	OUTER FLANGE, 5620DWA	$5.92
57	251644-1	H.F.H. BOLT M8X20, 5037NB	$2.40
58	252624-0	KNOB M6, 5007NB	$3.06
59	942151-2	SPRING WASHER 6, 5007NB	$0.90
60	941151-9	F. WASHER 6, 5007NB	$0.75
61	163253-3	ANGULAR PLATE, 5008NB (TYPE 2)	$23.19
62	251858-2	SCREW M6X15, 5007NK	$3.61
63	265075-8	PAN HEAD SCREW M5, 5057KB	$1.96
64	251920-3	C.S.N. BOLT M6X30, 5007NB	$1.34
65	267096-6	FLAT WASHER 8, 5008FA	$1.01
66	163250-9	BASE, 5008FA	$51.20
67	265965-5	C.S.N. BOLT M8X24, 5007N & 5477NB	$1.96
68	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
70	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
1001	164095-8	GUIDE RULE, 4200H	$12.60
1002	D-21521	8-1/4 SAW BLADE, 5008FA	$25.00
1003	782016-4	OFFSET WRENCH 13, 5177B	$6.40
5001	810149-6	CAUTION LABEL, 5005BA	$1.30
