Makita 5007S Electric Saw Parts

Makita 5007S Electric Saw Parts Image

Makita 5007S Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

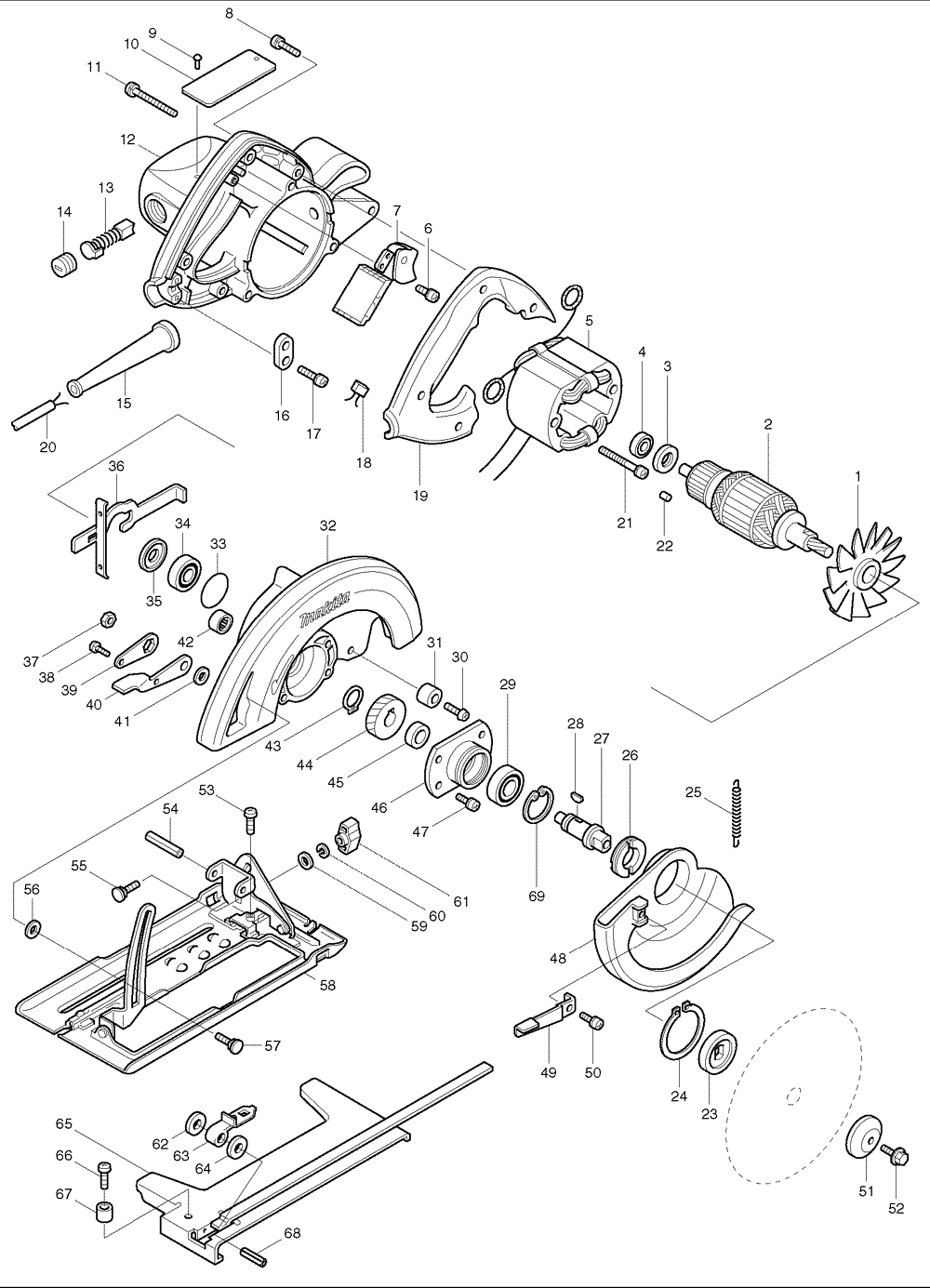

Makita 5007S Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 241513-4 FAN 92, 5007NB $4.16
2 514856-0 ARMATURE, 5008NBA $98.10
3 681625-5 INS. WASHER, 5007NK $1.63
4 211033-2 B. BEARING 608LB, 5091D $8.78
5 524536-0 FIELD ASS'Y, 5008NB $63.30
6 911119-9 P.H. SCREW M4X12, BO6040 $0.86
7 651172-0 SWITCH, 5007FK $14.94
8 911148-2 P.H. SCREW M4X25, 5057KB $0.86
9 953106-2 RIVET 0-5, HM1500 $0.49
10 856964-4 NAME PLATE, 5007S $1.36
11 911273-9 P.H. SCREW M5X50, HR2400 $1.19
12 157843-2 MOTOR HOUSING FOR 5007B $52.40
13 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
14 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
15 682505-8 CORD GUARD, 2711 $2.51
15 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
16 687001-1 STRAIN RELIEF, 6013BR $0.97
17 911133-5 P.H. SCREW M4X18, N9501B $0.86
18 645105-5 NOISE SUPPRESSOR, HK1800 $2.95
19 410201-6 HANDLE COVER, 5057KB $8.01
21 911280-2 P.H. SCREW M5X55, JR3000V $1.48
22 263002-9 RUBBER PIN 4, 5007NK $0.86
23 224151-7 INNER FLANGE, 5007FK $7.46
24 961201-4 RETAINING RING S-42, 5007NK $1.96
25 231806-7 TENSION SPRING 4, 5037NB $2.07
26 285807-7 BEARING RETAINER 22-36, 5008FA $3.06
27 323789-6 SPINDLE, 5008NB $10.32
27 324256-4 SPINDLE, 5007NB $11.97
28 254032-1 WOODRUFF KEY 5, 5037NB $1.63
29 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
30 251247-1 P.H. SCREW M6X20, 5007NK $0.86
31 262502-6 RUBBER SLEEVE 6, 5037NB $1.26
32 152753-8 BLADE CASE, 5007S $21.76
32 153304-0 BLADE CASE CPL.,5007S $22.86
32 154321-3 BLADE CASE, 5007NB $47.63
33 213459-4 O RING 32, HK1810 $1.19
34 211106-1 B. BEARING 6201LLB, 9227C $13.07
35 213102-5 DUST SEAL 12, 5057KB $1.63
36 163113-9 SHAFT LOCK, 5057KB $4.49
37 931402-8 HEX NUT M8, 5037NB $1.34
38 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
39 341415-5 LOCK PLATE, 5057KB $1.26
40 341416-3 LEVER PLATE, 5057KB $3.06
41 941201-0 F. WASHER 8, 5007NK $0.75
42 212052-1 N. BEARING 1010, HK1810 $7.46
43 961055-9 RETAINING RING S-15, 5007F $1.19
44 221647-9 HELICAL GEAR, M513 $20.66
44 226532-1 HELICAL GEAR 39, 5007NLK $10.21
45 257064-7 RING 15, 5037NB $1.63
46 316700-5 HOUSING W/O BEARING, 5007NB $18.90
46 321061-0 HOUSING W/O BEARING, 5007NB,T1 $27.37
47 911126-2 P.H. SCREW M4X16, 5402NA $0.53
48 315040-8 SAFETY COVER, 5007NB,T1 $23.96
49 341417-1 LEVER, 5007FK $1.63
50 911111-5 P.H. SCREW M4X10, LS1011 $0.53
51 224275-9 OUTER FLANGE, 5620DWA $5.92
52 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
53 911211-1 P.H. SCREW M5X12, HM1500B $0.86
54 951225-8 SPRING PIN 6-40, 5007NBA $1.63
55 251919-8 C.S.N. BOLT M6X20, 5402NA $1.34
56 267096-6 FLAT WASHER 8, 5008FA $1.01
57 265965-5 C.S.N. BOLT M8X24, 5007N & 5477NB $1.96
58 134678-8 BASE ASSEMBLY, 5007S $73.80
59 941151-9 F. WASHER 6, 5007NB $0.75
60 942151-2 SPRING WASHER 6, 5007NB $0.90
61 252624-0 KNOB M6, 5007NB $3.06
62 253010-8 F. WASHER 6, 5402A $1.01
63 163302-6 SPIRAL SPRING, 5007S $19.78
64 253010-8 F. WASHER 6, 5402A $1.01
65 164924-5 GUIDE PLATE, 5007S $51.20
66 251247-1 P.H. SCREW M6X20, 5007NK $0.86
67 262511-5 RUBBER SLEEVE 6, LS1030 $0.97
68 951216-9 SPRING PIN 6-28, 5007S $1.96
69 962153-2 RETAINING RING R-35,HP2030 $1.48
5002 819003-1 MAKITA LABEL, 5057KB $1.48
