Makita 5007NLK Electric Saw Parts

Makita 5007NLK Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

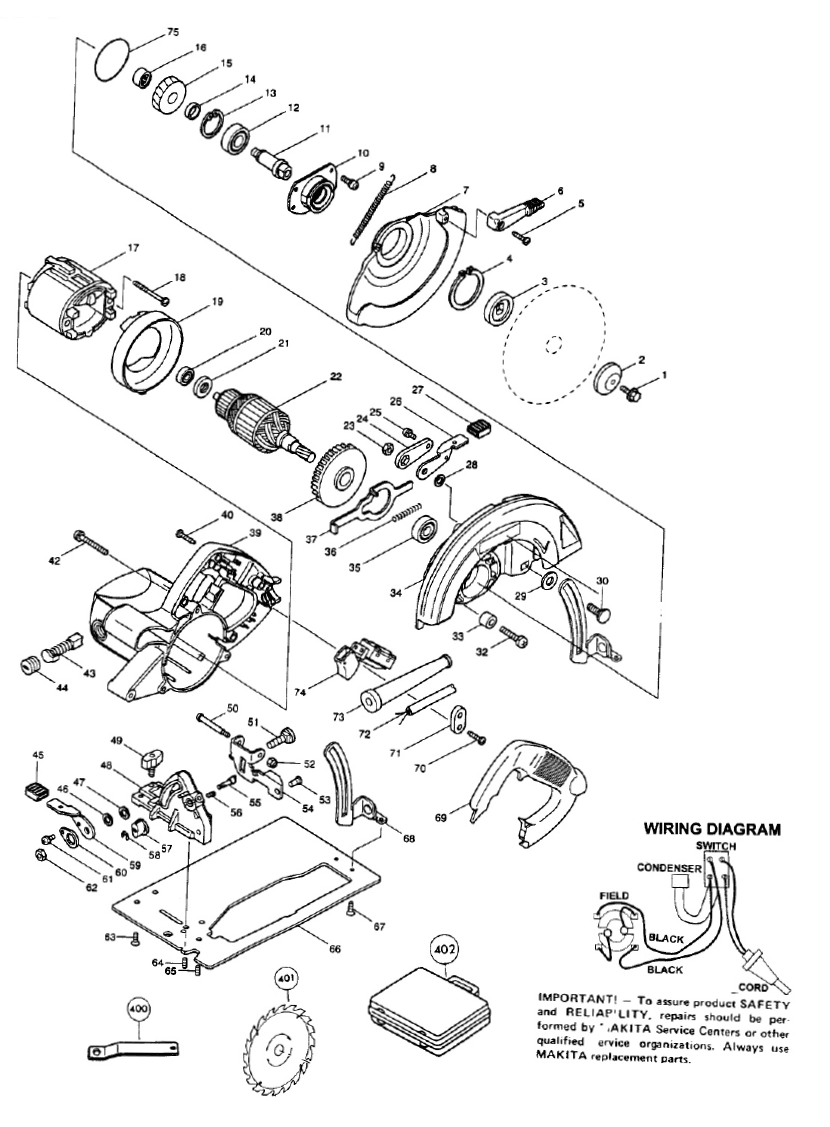

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265315-4	H.F.H. BOLT M8X20, 5277B	$2.40
2	224275-9	OUTER FLANGE, 5620DWA	$5.92
3	224151-7	INNER FLANGE, 5007FK	$7.46
4	961201-4	RETAINING RING S-42, 5007NK	$1.96
5	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
6	417290-2	LEVER, 5007NLK	$1.26
7	317371-1	SAFETY COVER, 5007NLK	$26.38
8	231806-7	TENSION SPRING 4, 5037NB	$2.07
9	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
10	316700-5	HOUSING W/O BEARING, 5007NB	$18.90
12	211228-7	BALL BEARING 6202DDW, HM1303B	$15.27
13	962153-2	RETAINING RING R-35,HP2030	$1.48
14	257064-7	RING 15, 5037NB	$1.63
15	226532-1	HELICAL GEAR 39, 5007NLK	$10.21
16	212052-1	N. BEARING 1010, HK1810	$7.46
17	596221-5	FIELD ASS'Y 115V, 5007NLK	$36.72
18	266046-8	T. SCREW FLANGE PT5X50,HR2010	$1.96
19	417260-1	BAFFLE PLATE, 5007NLK	$2.84
20	210005-4	BALL BEARING 608DDW, 9031	$13.07
21	681625-5	INS. WASHER, 5007NK	$1.63
22	516831-2	ARMATURE ASS'Y 115V, 5007NLK	$95.70
23	252154-1	HEX NUT M8-13, 9910	$1.96
24	343458-3	LOCK PLATE, 5037NB	$1.63
25	911108-4	P.H. SCREW M4X8, LS1013	$0.86
26	344885-7	LEVER PLATE, 5007NLK	$2.84
27	421746-9	RUBBER CAP, 5007NLK	$1.26
28	941201-0	F. WASHER 8, 5007NK	$0.75
29	267113-2	FLAT WASHER 12, GA4030	$1.63
30	266254-1	CAP SQUARE NECK BOLT M8X24,5007NLK	$1.34
32	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
33	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
34	152630-4	BLADE CASE CPL., 5007NLK	$48.55
35	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
36	233264-3	COMPRESSION SPRING 5, 5007NLK	$0.79
37	344884-9	SHAFT LOCK, 5007NLK	$2.84
38	240003-4	FAN 80, 5007NK	$4.16
39	152631-2	MOTOR HOUSING CPL., 5007NLK	$26.92
40	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
42	911273-9	P.H. SCREW M5X50, HR2400	$1.19
43	181047-4	CARBON BRUSH SET 154,5402A	$8.99
43	K21	Carbon Brush Set Replaces Makita (CB-154), 18104...	$8.50
44	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
45	421746-9	RUBBER CAP, 5007NLK	$1.26
46	941201-0	F. WASHER 8, 5007NK	$0.75
47	941201-0	F. WASHER 8, 5007NK	$0.75
48	317372-9	ANGULAR PLATE, 5007NLK	$23.74
49	251858-2	SCREW M6X15, 5007NK	$3.61
50	265075-8	PAN HEAD SCREW M5, 5057KB	$1.96
51	266253-3	CAP SQUARE NECK BOLT M8X30, 5007NLK	$1.96
52	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
53	256442-8	SHOULDER PIN 6-7, 5007NHK	$1.48
55	324027-9	STOPPER PIN, 5007NLK	$2.51
57	417264-3	DIAL, 5007NLK	$1.52
58	961017-7	STOP RING E-3, 4304, SH01	$0.53
59	344896-2	LEVER PLATE, 5007NLK	$2.84
60	344906-5	LOCK PLATE, 5007NLK	$1.52
61	911108-4	P.H. SCREW M4X8, LS1013	$0.86
62	252154-1	HEX NUT M8-13, 9910	$1.96
63	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
66	344882-3	BASE, 5007NLK	$21.10
67	912107-9	C.S.H. SCREW M4X8, 5037NB	$0.53
68	151942-2	DEPTH GUIDE CPL,5007NLK	$4.16
69	417259-6	HANDLE COVER, 5007NLK	$5.48
70	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
71	687052-4	STRAIN RELIEF, HM1500B	$1.26
72	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
72	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
73	682564-2	CORD GUARD, 5007NK	$4.16
73	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
74	651162-3	SWITCH, 5007NLK	$19.45
75	213621-1	O RING 46, 5007NLK	$1.74
