Makita 5007N Electric Saw Parts

Makita 5007N Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

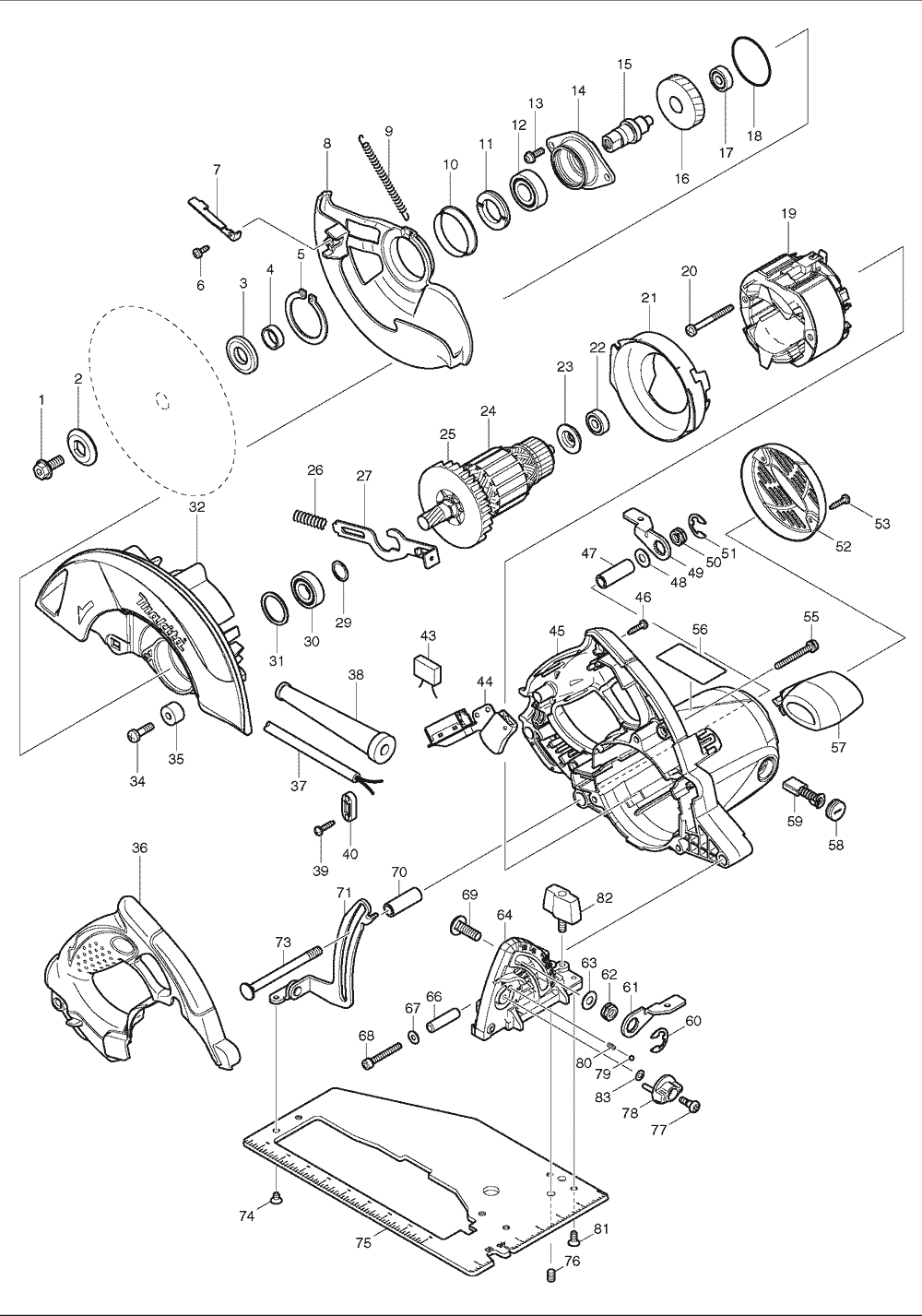

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	266283-4	H.S.H.BOLT M8X20, 5007NK	$3.24
2	224409-4	OUTER FLANGE 35, 5007NK	$2.84
3	224411-7	INNER FLANGE 35, 5007NK	$1.52
4	257279-6	RING 16, 5007NK	$1.19
5	961201-4	RETAINING RING S-42, 5007NK	$1.96
6	266398-7	T.SCREW BIND CT 4X12, 5007NK	$0.53
7	345931-9	LEVER PLATE, 5007NFAK	$1.34
8	318057-0	SAFETY COVER, 5007NK	$6.14
9	231839-2	TENSION SPRING 4, 5007NK	$1.48
10	345422-0	SPACER, 5007NK	$1.26
11	285848-3	BEARING RETAINER 23-36, 5007NK	$1.52
12	211275-8	BALL BEARING 6003DDW, 5007NK	$19.56
13	911223-4	P.H. SCREW M5X16, 5007NK	$0.86
14	318056-2	HOUSING W/O BEARING,5007NK	$3.17
15	324690-8	SPINDLE, 5007NK	$4.93
16	226682-2	HELICAL GEAR 47, 5007NFAK	$4.71
17	210029-0	BALL BEARING 608ZZ, 5007NK	$4.16
18	213623-7	O RING 46, 5007NK	$0.86
19	596286-7	FIELD ASSY 115V, 5007NK	$23.63
20	266397-9	T.SCREW BIND 5X50, 5007NK	$0.53
21	419548-5	BAFFLE PLATE, 5007NK	$1.41
22	210029-0	BALL BEARING 608ZZ, 5007NK	$4.16
23	681625-5	INS. WASHER, 5007NK	$1.63
24	510133-8	ARMATURE ASSEMBLY 115V, 5007NFAK	$30.70
25	240003-4	FAN 80, 5007NK	$4.16
26	231297-2	COMP. SPRING 9, 5007NK	$1.63
27	345717-1	SHAFT LOCK, 5007NK	$1.74
29	267280-3	FLAT WASHER 15, 5007NK	$1.01
30	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
31	261132-0	URETHANE WASHER 26, 5007NK	$1.34
32	158673-4	BLADE CASE CPL., 5007NFAK	$14.94
34	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
35	262552-1	RUBBER SLEEVE 6, 5007NK	$1.74
36	450684-8	HANDLE COVER, 5007NFAK	$5.92
37	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
37	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
38	682564-2	CORD GUARD, 5007NK	$4.16
38	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
39	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
40	687124-5	STRAIN RELIEF, 5007NK	$0.75
44	651189-3	SWITCH, 5007NK	$14.94
45	158704-9	MOTOR HOUSING CPL., 5007NK	$18.35
46	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
47	331719-3	PIPE 9, 5007NK	$1.48
48	941201-0	F. WASHER 8, 5007NK	$0.75
49	345930-1	LEVER PLATE, 5007NK	$1.34
50	252199-9	HEX. NUT M8-13, 5007NK	$1.34
51	257953-6	BOW STOP RING E-12, 5007NK	$1.19
52	345929-6	REAR COVER, 5007NFAK	$2.51
53	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
55	911268-2	P.H. SCREW M5X45, 5007NK	$1.19
56	864987-8	NAME PLATE, 5007NK	$1.30
57	450705-6	FRONT GRIP, 5007NFAK	$2.51
58	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
59	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
60	257953-6	BOW STOP RING E-12, 5007NK	$1.19
61	345930-1	LEVER PLATE, 5007NK	$1.34
62	252199-9	HEX. NUT M8-13, 5007NK	$1.34
63	941201-0	F. WASHER 8, 5007NK	$0.75
66	257759-2	SLEEVE 6, 5007NK	$1.48
67	941101-4	F. WASHER 5, 5007NK	$0.75
68	922261-1	H.S.H. BOLT M5X40, 5007NK	$1.96
69	266396-1	F.S.N.BOLT M8X24, 5007MG	$1.34
70	331719-3	PIPE 9, 5007NK	$1.48
71	163484-4	DEPTH GUIDE COMPLETE, 5007NFAK	$2.51
73	266237-1	C.S.N. BOLT M8X90, 5007NK	$3.28
74	265086-3	COUNTERSUNK H.S. M5X8, 5007NK	$0.86
75	345924-6	BASE, 5007NFAK	$11.53
76	266085-8	H.S. SET SCREW M6X10, 5007NK	$0.75
77	251370-2	PAN HEAD SCREW, 5007NK	$1.74
78	450704-8	DIAL 27, 5007NFAK	$1.34
79	216008-6	STEEL BALL 4.0, 5007NK	$0.53
80	233314-4	COMPRESSION SPRING 4, 5007NK	$1.63
81	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
82	251858-2	SCREW M6X15, 5007NK	$3.61
83	253811-4	F. WASHER 5, 5007NK	$1.34
1001	164095-8	GUIDE RULE, 4200H	$12.60
1003	783204-6	HEX WRENCH 6, 3705, HR5000	$3.40
