Makita 5007FAK

7-1/4 inch 15 Amp Ci...

$126.99

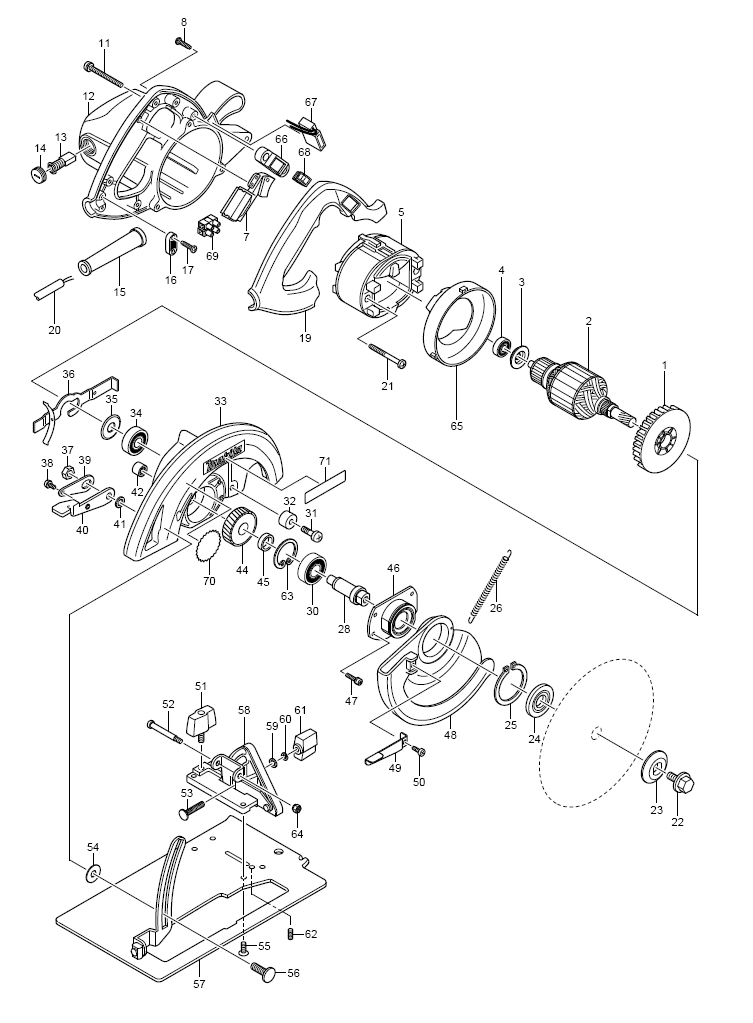

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	240003-4	FAN 80, 5007NK	$4.16
2	516826-5	ARMATURE ASS'Y 115V, 5007NHK	$82.60
3	681625-5	INS. WASHER, 5007NK	$1.63
4	211033-2	B. BEARING 608LB, 5091D	$8.78
5	596231-2	FIELD, 5007FAK	$31.51
7	651042-3	SWITCH, 5007NBA, M514	$23.96
8	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
11	911273-9	P.H. SCREW M5X50, HR2400	$1.19
12	152989-9	MOTOR HOUSING CPL., 5007F	$23.74
13	181047-4	CARBON BRUSH SET 154,5402A	$8.12
13	K21	Carbon Brush Set	$8.19
14	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
15	682505-8	CORD GUARD, 2711	$2.51
15	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
16	687052-4	STRAIN RELIEF, HM1500B	$1.26
17	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
19	417712-2	HANDLE COVER, 5007FAK	$4.16
20	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
20	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
21	266046-8	T. SCREW FLANGE PT5X50,HR2010	$1.96
22	251644-1	H.F.H. BOLT M8X20, 5037NB	$2.40
23	224275-9	OUTER FLANGE, 5620DWA	$5.92
24	224151-7	INNER FLANGE, 5007FK	$7.46
25	961201-4	RETAINING RING S-42, 5007NK	$1.96
26	231828-7	TENSION SPRING 4, 5007FK	$1.63
30	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
31	251247-1	P.H. SCREW M6X20, 5007NK	$0.86
32	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
33	153304-0	BLADE CASE CPL.,5007S	$22.86
34	211106-1	B. BEARING 6201LLB, 9227C	$13.07
35	213102-5	DUST SEAL 12, 5057KB	$1.63
36	163113-9	SHAFT LOCK, 5057KB	$4.49
37	931402-8	HEX NUT M8, 5037NB	$1.34
38	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
39	341415-5	LOCK PLATE, 5057KB	$1.26
40	341416-3	LEVER PLATE, 5057KB	$3.06
41	941201-0	F. WASHER 8, 5007NK	$0.75
42	212052-1	N. BEARING 1010, HK1810	$7.46
44	226532-1	HELICAL GEAR 39, 5007NLK	$10.21
45	257064-7	RING 15, 5037NB	$1.63
46	316700-5	HOUSING W/O BEARING, 5007NB	$18.90
47	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
48	317436-9	SAFETY COVER, 5007FK	$13.29
49	341417-1	LEVER, 5007FK	$1.63
50	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
51	251858-2	SCREW M6X15, 5007NK	$3.61
52	265075-8	PAN HEAD SCREW M5, 5057KB	$1.96
53	251920-3	C.S.N. BOLT M6X30, 5007NB	$1.34
54	267096-6	FLAT WASHER 8, 5008FA	$1.01
55	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
56	265965-5	C.S.N. BOLT M8X24, 5007N & 5477NB	$1.96
57	163378-3	BASE,5007FK	$17.25
58	163248-6	ANGULAR PLATE, 5007NB (TYPE 2)	$21.76
59	941151-9	F. WASHER 6, 5007NB	$0.75
60	942151-2	SPRING WASHER 6, 5007NB	$0.90
61	252624-0	KNOB M6, 5007NB	$3.06
63	962153-2	RETAINING RING R-35,HP2030	$1.48
64	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
65	417711-4	BAFFLE PLATE, 5007FAK	$1.26
66	417468-7	FRAME, 5007FAK	$2.84
67	631453-8	LIGHT CIRCUIT, 5007FK	$20.55
68	651514-8	SWITCH, 5007FK	$7.02
69	654531-7	TERMINAL BLOCK 2P, 5007MG	$4.49
70	800020-2	INDICATION LABEL, 5007FA	$0.45
71	819003-1	MAKITA LABEL, 5057KB	$1.48
D01	654001-6	TERMINAL R1.25-3.5, 5007NK	$0.75
D02	654069-2	RECEPTACLE, BO4556	$0.75
D03	654020-2	GARTER SPRING, 5007NK	$1.34
D04	654502-4	CONNECTOR P-2(GARTER SPRING), 5007NK	$0.90
D05	652021-4	SWITCH SCREW ,5007FAK	$0.49
A01	164095-8	GUIDE RULE, 4200H	$12.60
A03	782016-4	OFFSET WRENCH 13, 5177B	$6.40
