Makita 4390DW Cordless Saw Parts

Makita 4390DW Cordless Saw Parts Image

Makita 4390DW Parts

Download Schematic

Time to buy a new tool?

Makita 4390DW

9.6-Volt Cordless Re...

$134.99

Free Shipping

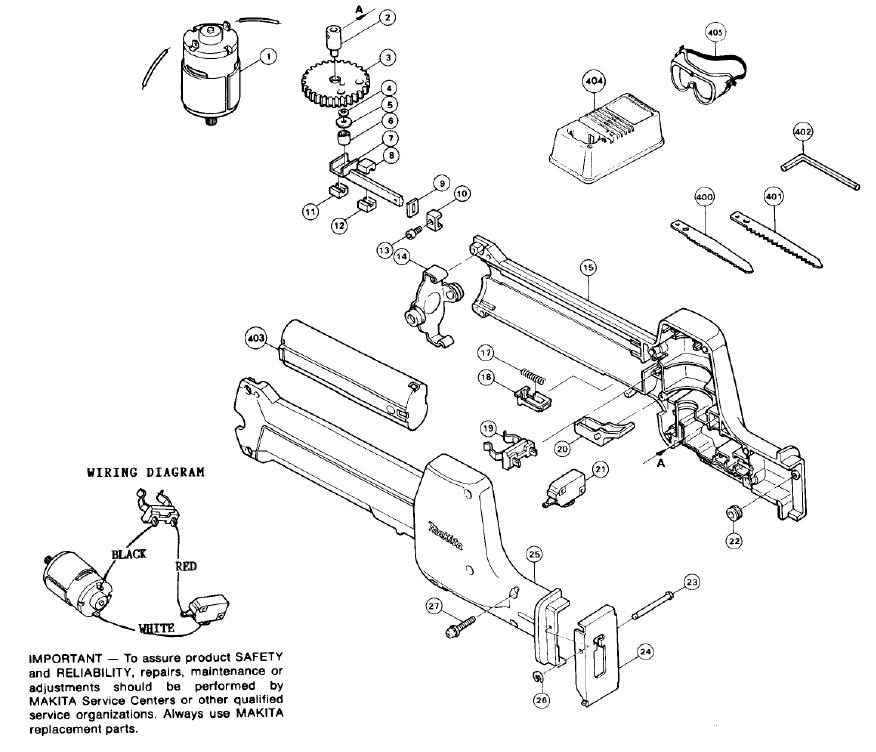

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
2	152272-4		SUPPORTER, 4300DW	$5.92
4	253307-5		T. WASHER, 4390D	$1.34
5	253874-0		F. WASHER 4, LS1016L	$1.34
6	212014-9		N.R. BEARING 407, BJV180	$11.97
8	214020-0		P. BEARING 3, 4300DW	$3.06
11	214020-0		P. BEARING 3, 4300DW	$3.06
12	214020-0		P. BEARING 3, 4300DW	$3.06
13	922107-1		H.S.H. BOLT M4X8, 4329K	$1.34
17	231390-2		COMP. SPRING 3, UH3000D	$0.90
18	414169-8		LOCK-OFF LEVER, 4390D	$0.97
19	643909-9		BATTERY HOLDER, DA392D	$4.49
20	410972-5		TRIGGER, 4390DW	$3.06
22	322099-8		ROLLER, 4390DW	$4.49
23	256654-3		PIN 4, 4390DW	$3.61
26	961017-7		STOP RING E-3, 4304, SH01	$0.53
27	911143-2		P.H. SCREW M4X22, 6211D	$0.86
402	783201-2		HEX WRENCH 3, AF501	$3.40
