Makita 4341FCT Electric Saw Parts

Makita 4341FCT Parts

Barrel Grip Orbital Jig Saw with L.E.D. Light

Download Schematic

Time to buy a new tool?

Makita 4341FCT

Barrel Grip Orbital...

$162.99

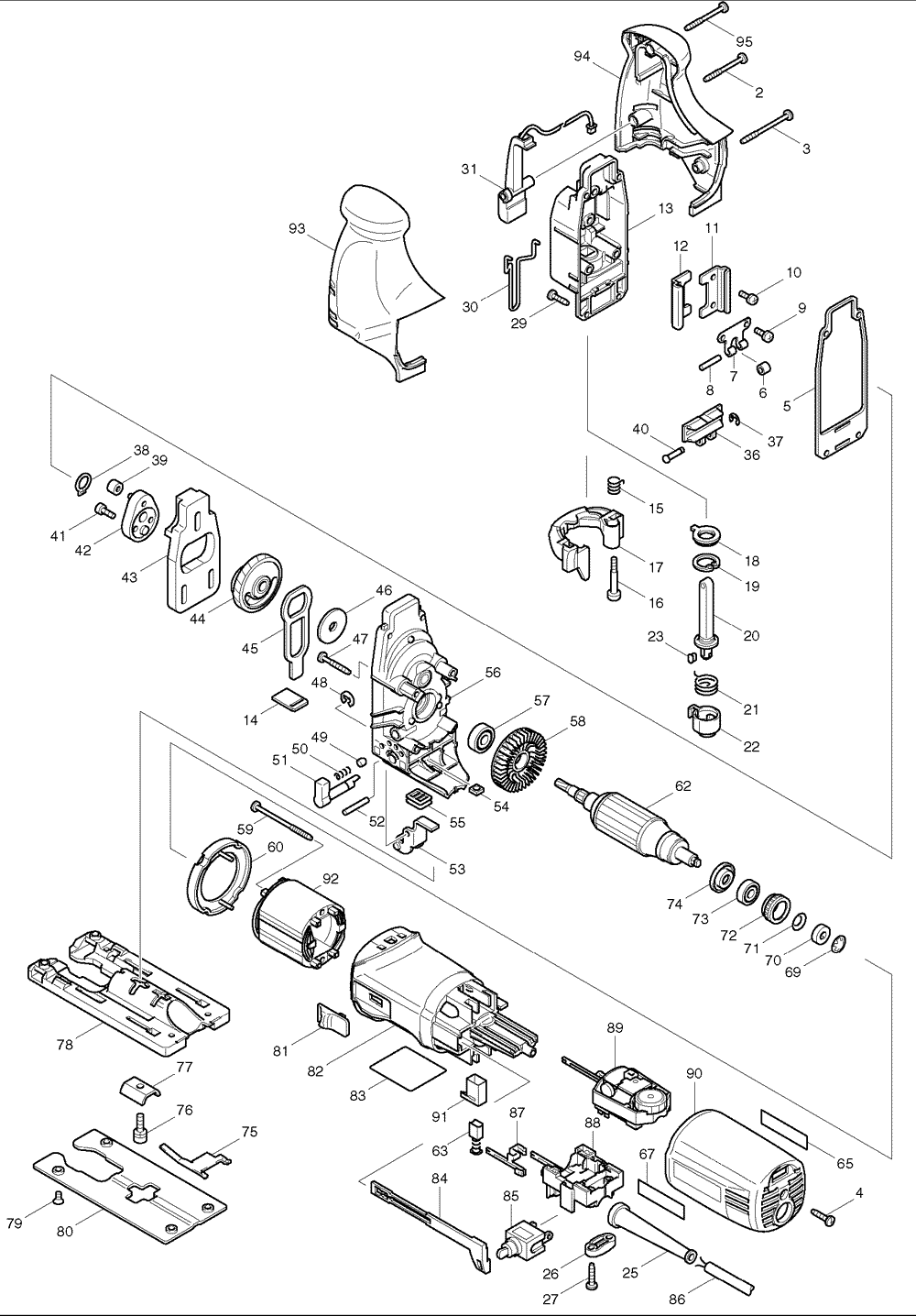

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	266048-4	T. SCREW 4X40, BO4556	$1.19
3	266091-3	TAPPING SCREW 4X50, 6812	$1.19
4	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
5	442138-9	PACKING, 4340FCT	$1.26
6	214031-5	PLANE BEARING 4, 6913D	$1.26
7	232207-2	LEAF SPRING, 4340FCT	$1.63
8	256117-9	PIN 4, 4324	$1.19
9	911111-5	P.H. SCREW M4X10, LS1011	$0.53
10	911111-5	P.H. SCREW M4X10, LS1011	$0.53
11	345240-6	LINEAR GUIDE, 4351FCT	$4.16
12	345240-6	LINEAR GUIDE, 4351FCT	$4.16
13	153338-3	GEAR HOUSING COVER CPL. 4340FCT	$24.84
14	417839-8	SEAL PLATE, 4340FCT	$1.26
15	231659-4	TORSION SPRING 6, 4340FCT	$1.48
16	265026-1	P.H. SCREW M4, 3901	$4.93
17	417842-9	TOOL OPENER, 4340FCT	$2.84
18	421817-2	DUST COVER, 4340FCT	$0.97
19	962068-3	RETAINING RING R-18, 4340FCT	$1.19
20	165326-8	ROD, 4340FCT	$21.10
20	135060-4	ROD ASS'Y, 4340FCT	$42.22
21	231660-9	TORSION SPRING 15, 4340FCT	$1.48
22	310136-0	BLADE HOLDER, 4340FCT	$14.61
23	310135-2	PUSH PIN, 4340FCT	$4.16
25	682559-5	CORD GUARD 8, 6824	$2.51
25	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
26	687063-9	STRAIN RELIEF, 4323K	$1.26
27	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
29	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
30	324233-6	SAFETY WIRE, 4340FCT	$1.52
31	631470-8	LED CIRCUIT, 4340FCT	$11.97
36	310134-4	SLIDER, 4340FCT	$14.94
37	961017-7	STOP RING E-3, 4304, SH01	$0.53
38	961004-6	RETAINING RING S-8, DA391D	$0.53
39	212014-9	N.R. BEARING 407, BJV180	$11.97
40	268090-1	PIN 4, 4340FCT	$3.28
41	265353-6	H.S.H. BOLT M4X12, 4340FCT	$1.48
42	153336-7	CRANK CPL. BJV180	$5.48
43	313108-4	BALANCE PLATE, 4340FCT	$5.48
44	153335-9	GEAR CPL., 4340FCT	$28.56
45	345235-9	PUSH PLATE, 4340FCT	$4.16
46	253877-4	F. WASHER 8, 4301BV	$1.63
47	266050-7	P.T. SCREW 4X30, 4304	$1.19
48	961018-5	STOP RING E-5, LS1011	$0.53
49	286032-3	CAP 5, 4340FCT	$1.26
50	233139-6	COMPRESSION SPRING 3, 4340FCT	$0.86
51	272244-4	LEVER 17, BJV180	$5.48
52	268063-4	PIN 4, RD1100/1101	$1.19
53	153334-1	RETAINER, BJV180, 4340FCT	$13.84
54	252171-1	SQUARE NUT M5-8, 4340FCT	$1.34
55	421816-4	DUST SEAL, 4351FCT	$0.97
56	153337-5	GEAR HOUSING CPL., 4350FCT	$26.82
57	210005-4	BALL BEARING 608DDW, 9031	$13.07
58	241881-5	FAN 52, 6904VH	$4.16
60	417838-0	BAFFLE PLATE, 4340FCT	$1.26
62	517396-7	ARMATURE ASS'Y 115V, 4340FCT	$63.30
63	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
65	819063-3	MAKITA LABEL, DA3010F	$0.96
67	819063-3	MAKITA LABEL, DA3010F	$0.96
69	259039-2	SELF LOCK 6, 3707FC	$0.49
70	688117-5	MAGNET SLEEVE, GD0800C	$4.16
71	267756-0	WAVE WASHER 6, 9561CV	$1.01
72	421494-0	LABYRINTH RUBBER RING,HR2455, DA3010F	$4.49
73	211021-9	BALL BEARING 607LLB, LS1013	$8.78
74	681636-0	INSULATION WASHER, GA4030	$3.72
75	232208-0	LEAF SPRING, 43410FCT	$1.96
76	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
77	345237-5	CRANK PLATE, 4351FCT	$1.52
78	317565-8	BASE, 4340FCT	$21.10
79	912107-9	C.S.H. SCREW M4X8, 5037NB	$0.53
80	345238-3	BASE PLATE,4340FCT,BJV180	$10.60
81	417840-3	SWITCH LEVER, 4341FCT	$1.52
82	417758-8	MOTOR HOUSING, 4341FCT	$8.01
83	853855-0	NAME PLATE, 4341FCT	$1.48
84	417841-1	SWITCH ROD, 4341FCT	$1.52
85	651418-4	SWITCH, 9564CV	$17.25
85	651428-1	SWITCH, 4341FCT	$13.84
86	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
86	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
87	654223-8	TERMINAL F, 4341FCT	$1.52
88	638110-9	SWITCH BLOCK UNIIT, 4341FCT	$9.22
89	631464-3	CONTROLLER, 4341FCT	$43.86
90	183436-9	REAR COVER,4341FCT	$5.48
91	643975-6	BRUSH HOLDER, 4341FCT	$1.26
92	633516-6	FIELD 115V, 4341FCT	$17.03
93	183426-2	HEAD COVER SET,4341FCT	$6.80
94	183426-2	HEAD COVER SET,4341FCT	$6.80
95	266048-4	T. SCREW 4X40, BO4556	$1.19
1001	415524-7	ANTI SPLINTERING PLATE, 4304	$4.40
1002	417852-6	COVER PLATE, 4340FCT	$6.40
1005	792729-9	JIG SAW BLADE, BR-13 5/PKG., 4304	$7.40
1006	783202-0	HEX WRENCH 4, JR3000V	$3.24
