Makita 4330D Cordless Saw Parts

Makita 4330D Cordless Saw Parts Image

Makita 4330D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

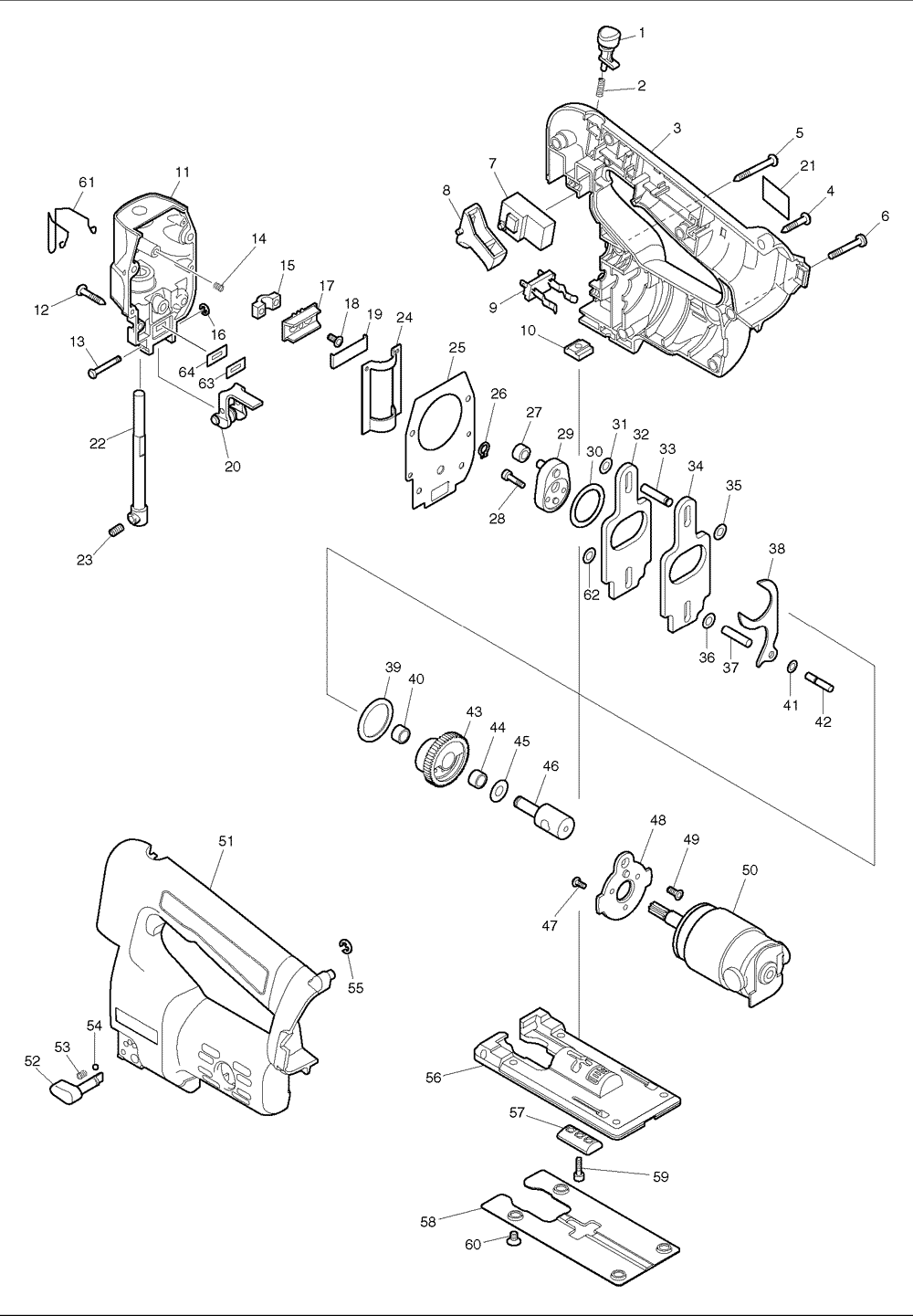

Makita 4330D Cordless Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 416644-0 SWITCH BUTTON, 5620DWA $16.04
2 233194-8 COMPRESSION SPRING 4, 5620DWA $1.48
3 183093-3 HOUSING SET, 4330DWA $16.04
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 266050-7 P.T. SCREW 4X30, 4304 $1.19
6 911148-2 P.H. SCREW M4X25, 5057KB $0.86
7 651976-0 SWITCH TG72BD, BSS611Z $13.84
8 416642-4 SWITCH LEVER, 5620DWA $1.63
9 643909-9 BATTERY HOLDER, DA392D $4.49
10 164749-7 HOLDER, 4300DW $3.06
11 153391-9 GEAR HOUSING COVER COMPLETE, 4330DWA $27.59
11 151689-8 GEAR HOUSING COVER CPL., 4330DWA-T1 $23.85
12 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
13 256693-3 HEADED PIN 4, 4305 $5.37
14 231314-8 COMP. SPRING 4, 4301BV $0.86
15 316608-3 HOLDER, 4304 $5.92
16 961017-7 STOP RING E-3, 4304, SH01 $0.53
17 310028-3 SLIDER, 4334D $17.47
18 265035-0 C.S.H. SCREW M4X10, 4304 $1.48
19 344232-2 THRUST PLATE, 4304 $0.97
20 152947-5 RETAINER CPL.,4334DWD $8.12
21 851862-7 NAME PLATE, 4330D $2.40
22 165089-6 ROD, 4304 $44.26
23 265894-2 SET SCREW M6X8, 4330DWA $0.86
24 344137-6 SLIDE PLATE, 4334DWD $3.06
25 421692-6 GASKET, 4330DWA $1.26
26 961004-6 RETAINING RING S-8, DA391D $0.53
27 212010-7 N. BEARING 607, 4330DWA $14.61
28 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
29 152454-8 CRANK COMPLETE, 4304 $10.32
30 253792-2 F. WASHER 26, 4304 $1.63
31 253715-0 F. WASHER 6, NHP1310 $1.34
32 344792-4 BALANCE PLATE, 4330DWA $5.92
33 256289-0 PIN 6, 4330DWA $1.96
34 344792-4 BALANCE PLATE, 4330DWA $5.92
35 253715-0 F. WASHER 6, NHP1310 $1.34
36 253715-0 F. WASHER 6, NHP1310 $1.34
37 256143-8 PIN 6, 4304T $1.96
38 344134-2 PUSH PLATE, 4304 $3.06
39 253792-2 F. WASHER 26, 4304 $1.63
40 212043-2 NEEDLE BEARING 8-10, N900 $3.06
41 253811-4 F. WASHER 5, 5007NK $1.34
42 256235-3 PIN 5, 4304T $1.48
43 226428-6 HELICAL GEAR 51, 4304 $43.86
44 212043-2 NEEDLE BEARING 8-10, N900 $3.06
45 253139-0 F. WASHER 8, 6510LVR $1.34
46 256288-2 PIN 8, 4330DWA $10.54
47 266134-1 T. SCREW ST 4X8,6233DWA $0.53
48 344791-6 MOTOR BRACKET, 4330DWA $4.49
49 265035-0 C.S.H. SCREW M4X10, 4304 $1.48
50 629735-0 DC MOTOR 12V, 4330DWA $79.20
51 183093-3 HOUSING SET, 4330DWA $16.04
52 272231-3 LEVER 17, 4304 $8.78
53 231314-8 COMP. SPRING 4, 4301BV $0.86
54 216008-6 STEEL BALL 4.0, 5007NK $0.53
55 961018-5 STOP RING E-5, LS1011 $0.53
56 316883-1 BASE, 4330DWA $17.91
57 331435-7 CLAMP PLATE, 4333DWD $4.49
58 344443-9 BASE PLATE, 4304T $6.80
59 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
60 266055-7 C.S. SCREW M5X8, 4304 $0.86
61 322893-8 SAFETY WIRE, 4304T $2.84
62 253715-0 F. WASHER 6, NHP1310 $1.34
63 344784-3 SEAL PLATE, 4304T $0.97
64 443106-5 FELT 10-20, 4304T $0.75
1001 344532-0 SET PLATE, 5093DWA $4.49
1002 414938-7 BATTERY COVER, 6222DWE $2.20
1003 415524-7 ANTI SPLINTERING PLATE, 4304 $4.40
1004 783201-2 HEX WRENCH 3, AF501 $3.40
1008 792729-9 JIG SAW BLADE, BR-13 5/PKG., 4304 $7.40
1009 192598-2 BATTERY 1222, 12VDC 2.0AH,6213DWAE $96.20
