Makita 4329 Electric Saw Parts

Makita 4329 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

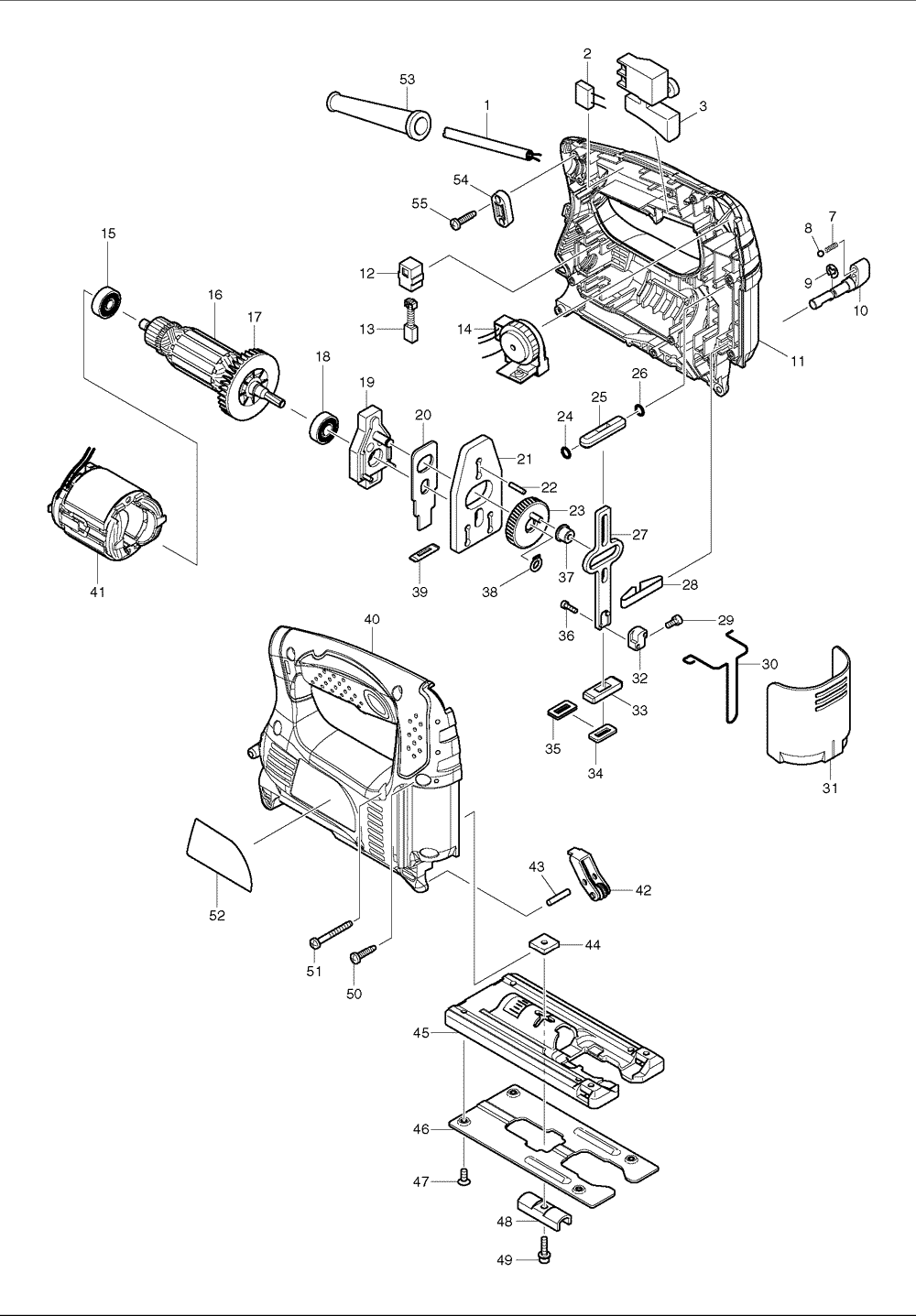

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	664881-2	CORD	$10.43
1	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
3	651286-5	SWITCH, BO5021	$9.22
7	233151-6	COMPRESSION SPRING 4, 4304T	$1.48
8	216008-6	STEEL BALL 4.0, 5007NK	$0.53
9	961011-9	STOP RING E-4, 4301BV	$1.48
10	272239-7	LEVER 18, 4324	$4.49
11	188338-4	HOUSING SET, 4329K	$17.25
12	643552-4	BRUSH HOLDER, BO5012K	$1.63
14	631265-9	CONTROLLER 100-120V, 4323	$26.38
16	515716-9	ARMATURE ASS'Y 115V, 4329K	$23.63
17	241881-5	FAN 52, 6904VH	$4.16
18	210005-4	BALL BEARING 608DDW, 9031	$13.07
19	152600-3	BEARING CASE COMPLETE, 4329K	$10.32
20	344683-9	PUSH PLATE, 4324	$3.06
21	344614-8	BALANCE PLATE, 4323	$5.92
22	256254-9	PIN 3, 4323	$0.86
23	153260-4	GEAR COMPLETE, 4324	$13.84
24	213038-8	O RING 5, 4323	$0.86
25	313082-6	SLIDER GUIDE, JV0600K	$1.63
26	213038-8	O RING 5, 4323	$0.86
27	344613-0	SLIDER, 4323	$6.80
28	232183-0	LEAF SPRING, 4324	$1.96
29	922107-1	H.S.H. BOLT M4X8, 4329K	$1.34
30	323748-0	SAFETY WIRE, 4323	$1.63
31	416476-5	DUST COVER, 4323	$3.06
32	313140-8	BLADE CLAMP, 4329K	$4.16
33	313086-8	SLIDER SUPPORT, 4324	$1.26
34	423307-1	POLY URETHANE SPONGE SEAL, 4323	$0.97
35	344686-3	SEAL PLATE, 4324	$1.26
36	266177-3	HEX. SOCKET HEAD BOLT M3X10, 4323	$1.08
37	257683-9	COLLAR SLEEVE, 4323	$0.97
38	961002-0	RETAINING RING S-6, 6012HDW	$0.53
39	416703-0	DUST SEAL, JV0600K	$1.26
40	188338-4	HOUSING SET, 4329K	$17.25
41	633656-0	FIELD 115V, 4329K	$11.53
42	158392-2	RETAINER CPL., 4329K	$2.84
43	256117-9	PIN 4, 4324	$1.19
44	343540-8	HOLDER, 4329K	$1.63
45	317796-9	BASE, 4329K	$5.48
46	345441-6	BASE PLATE, JV0600K	$1.52
47	912107-9	C.S.H. SCREW M4X8, 5037NB	$0.53
48	344685-5	CLAMP COMPLETE, 4324	$1.52
49	922128-3	H.S. HEAD BOLT M4X16, HR2811F	$1.34
50	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
51	266053-1	P.T. SCREW 4X35, 4304	$1.48
52	863970-2	NAME PLATE, 4329K	$1.21
53	682569-2	CORD GUARD, BO4556	$2.51
53	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
54	687123-7	STRAIN RELIEF, JV0600K	$0.75
55	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
1002	783201-2	HEX WRENCH 3, AF501	$3.40
1004	805796-6	MODEL NO. LABEL, 4329K	$0.45
