Makita 4324 Electric Saw Parts

Makita 4324 Parts

Jig Saw (Replacement of 4329K)

Download Schematic

Time to buy a new tool?

Makita 4324

Jig Saw (Replacement...

$73.99

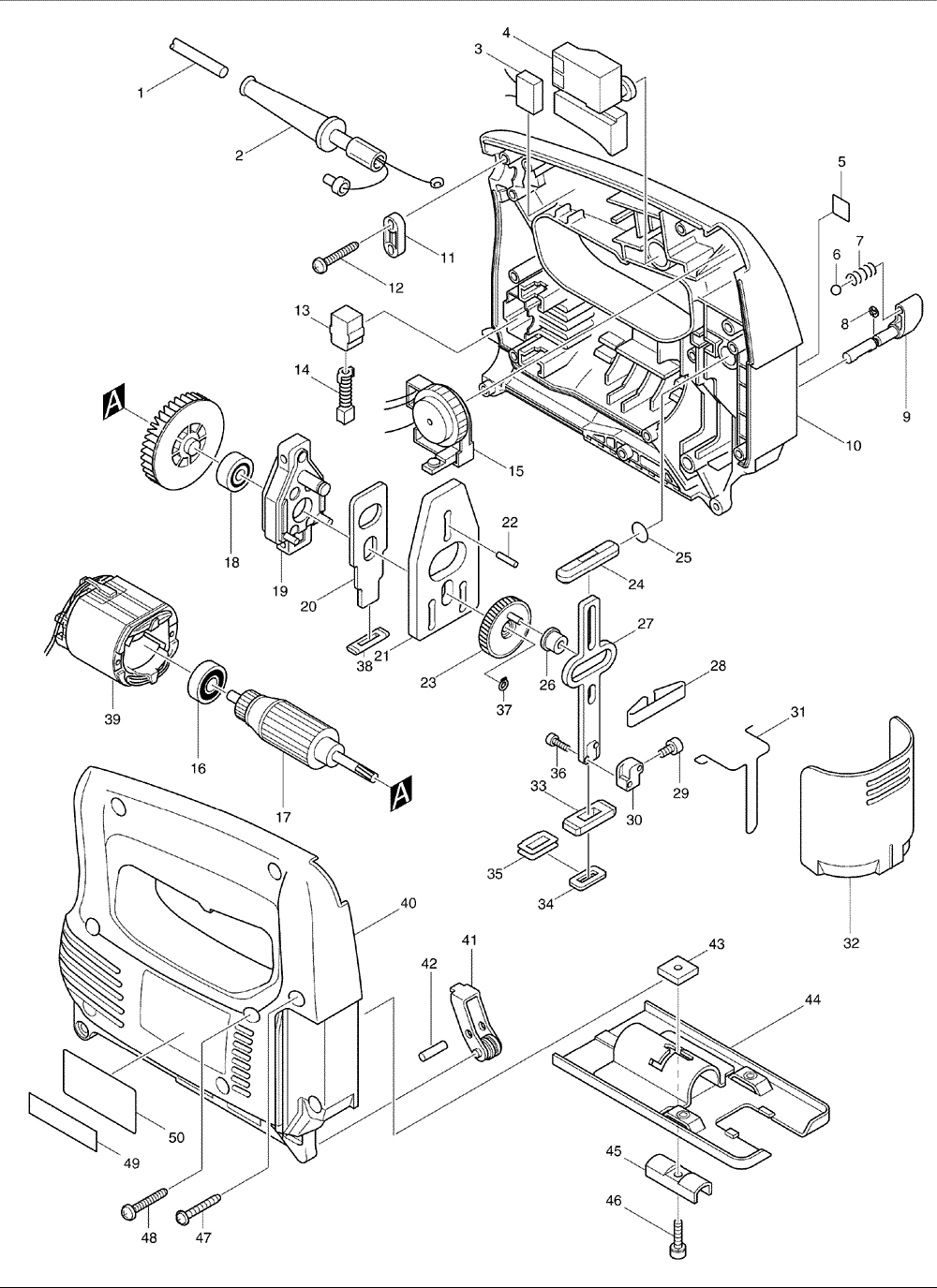

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	664881-2	CORD	$10.43
1	664424-0	CORD (2X18X8 SJT), 3621	$16.04
1	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
2	682502-4	CORD GUARD 8-85, HP2010N	$2.51
2	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
4	651286-5	SWITCH, BO5021	$9.22
5	816343-8	INDICATION LABEL, 4324	$0.66
6	216008-6	STEEL BALL 4.0, 5007NK	$0.53
7	233151-6	COMPRESSION SPRING 4, 4304T	$1.48
8	961011-9	STOP RING E-4, 4301BV	$1.48
9	272239-7	LEVER 18, 4324	$4.49
10	183051-9	HOUSING SET, 4324	$29.37
11	687063-9	STRAIN RELIEF, 4323K	$1.26
12	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
13	643552-4	BRUSH HOLDER, BO5012K	$1.63
15	631265-9	CONTROLLER 100-120V, 4323	$26.38
17	517266-0	ARMATURE ASS'Y 115V, 4323	$59.90
18	210005-4	BALL BEARING 608DDW, 9031	$13.07
19	152600-3	BEARING CASE COMPLETE, 4329K	$10.32
20	344683-9	PUSH PLATE, 4324	$3.06
21	344614-8	BALANCE PLATE, 4323	$5.92
22	256254-9	PIN 3, 4323	$0.86
23	153260-4	GEAR COMPLETE, 4324	$13.84
24	313082-6	SLIDER GUIDE, JV0600K	$1.63
25	213038-8	O RING 5, 4323	$0.86
26	257683-9	COLLAR SLEEVE, 4323	$0.97
27	344613-0	SLIDER, 4323	$6.80
28	232183-0	LEAF SPRING, 4324	$1.96
29	922107-1	H.S.H. BOLT M4X8, 4329K	$1.34
30	313083-4	BLADE CLAMP, 4324	$6.80
31	323748-0	SAFETY WIRE, 4323	$1.63
32	416476-5	DUST COVER, 4323	$3.06
33	313086-8	SLIDER SUPPORT, 4324	$1.26
34	423307-1	POLY URETHANE SPONGE SEAL, 4323	$0.97
35	344686-3	SEAL PLATE, 4324	$1.26
36	266177-3	HEX. SOCKET HEAD BOLT M3X10, 4323	$1.08
37	961002-0	RETAINING RING S-6, 6012HDW	$0.53
38	416703-0	DUST SEAL, JV0600K	$1.26
39	633406-3	FIELD 115V, 4323	$19.01
40	183051-9	HOUSING SET, 4324	$29.37
41	152601-1	RETAINER COMPLETE, 4324	$5.48
42	256117-9	PIN 4, 4324	$1.19
43	343540-8	HOLDER, 4329K	$1.63
44	163397-9	BASE, 4323	$5.92
45	344685-5	CLAMP COMPLETE, 4324	$1.52
46	922128-3	H.S. HEAD BOLT M4X16, HR2811F	$1.34
47	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
48	266053-1	P.T. SCREW 4X35, 4304	$1.48
49	819063-3	MAKITA LABEL, DA3010F	$0.96
50	850955-7	NAME PLATE, 4324	$1.12
50	859816-8	NAME PLATE, 4324	$2.51
51	241881-5	FAN 52, 6904VH	$4.16
1002	783201-2	HEX WRENCH 3, AF501	$3.40
5001	810146-2	CAUTION LABEL, 6906	$1.17
