Makita 4323 Electric Saw Parts

Makita 4323 Electric Saw Parts Image

Makita 4323 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

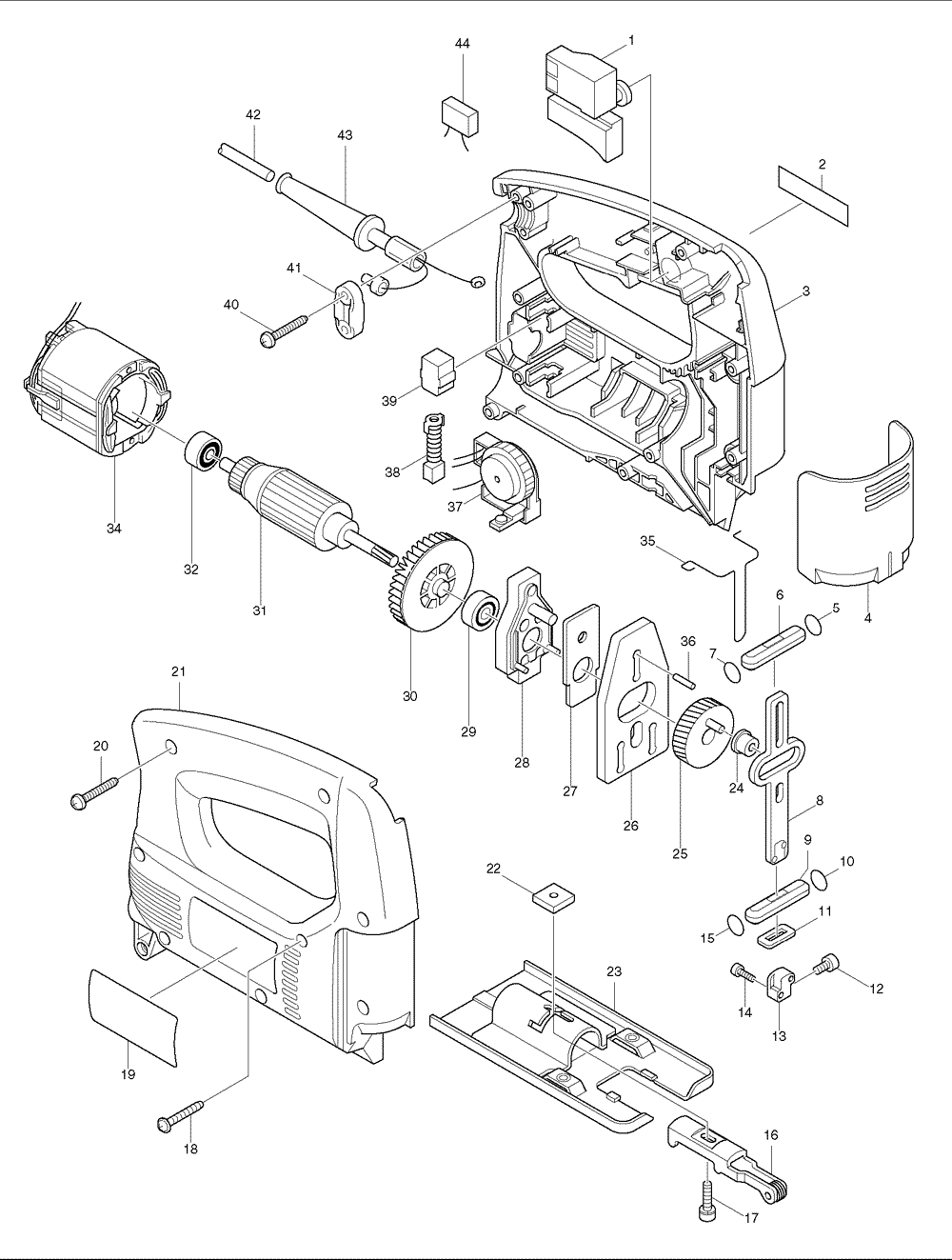

Makita 4323 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 651286-5 SWITCH, BO5021 $9.22
19 850953-1 NAME PLATE, 4323 $1.12
2 819063-3 MAKITA LABEL, DA3010F $0.96
3 183030-7 HOUSING SET, 4323 $26.38
4 416476-5 DUST COVER, 4323 $3.06
5 213038-8 O RING 5, 4323 $0.86
6 313082-6 SLIDER GUIDE, JV0600K $1.63
7 213038-8 O RING 5, 4323 $0.86
8 344613-0 SLIDER, 4323 $6.80
9 313082-6 SLIDER GUIDE, JV0600K $1.63
10 213038-8 O RING 5, 4323 $0.86
11 423307-1 POLY URETHANE SPONGE SEAL, 4323 $0.97
12 922107-1 H.S.H. BOLT M4X8, 4329K $1.34
13 313083-4 BLADE CLAMP, 4324 $6.80
14 266177-3 HEX. SOCKET HEAD BOLT M3X10, 4323 $1.08
15 213038-8 O RING 5, 4323 $0.86
16 152578-0 RETAINER COMPLETE, 4323 $4.49
17 922128-3 H.S. HEAD BOLT M4X16, HR2811F $1.34
18 266053-1 P.T. SCREW 4X35, 4304 $1.48
19 850953-1 NAME PLATE, 4323 $1.12
19 859322-3 NAME PLATE, 4323 $1.36
20 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
21 183030-7 HOUSING SET, 4323 $26.38
22 343540-8 HOLDER, 4329K $1.63
23 163397-9 BASE, 4323 $5.92
24 257683-9 COLLAR SLEEVE, 4323 $0.97
25 153254-9 GEAR COMPLETE, 4323 $9.77
26 344614-8 BALANCE PLATE, 4323 $5.92
27 344615-6 THRUST PLATE, 4323 $0.97
28 152577-2 HOUSING W/O BEARING,4323 $8.01
29 210005-4 BALL BEARING 608DDW, 9031 $13.07
30 241881-5 FAN 52, 6904VH $4.16
31 517266-0 ARMATURE ASS'Y 115V, 4323 $59.90
34 633406-3 FIELD 115V, 4323 $19.01
35 323748-0 SAFETY WIRE, 4323 $1.63
36 256254-9 PIN 3, 4323 $0.86
37 631265-9 CONTROLLER 100-120V, 4323 $26.38
39 643552-4 BRUSH HOLDER, BO5012K $1.63
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 687063-9 STRAIN RELIEF, 4323K $1.26
42 664881-2 CORD $10.43
42 664424-0 CORD (2X18X8 SJT), 3621 $16.04
42 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
43 682502-4 CORD GUARD 8-85, HP2010N $2.51
43 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
1002 783201-2 HEX WRENCH 3, AF501 $3.40
5001 810146-2 CAUTION LABEL, 6906 $1.17
