Makita 4320 Electric Saw Parts

Makita 4320 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

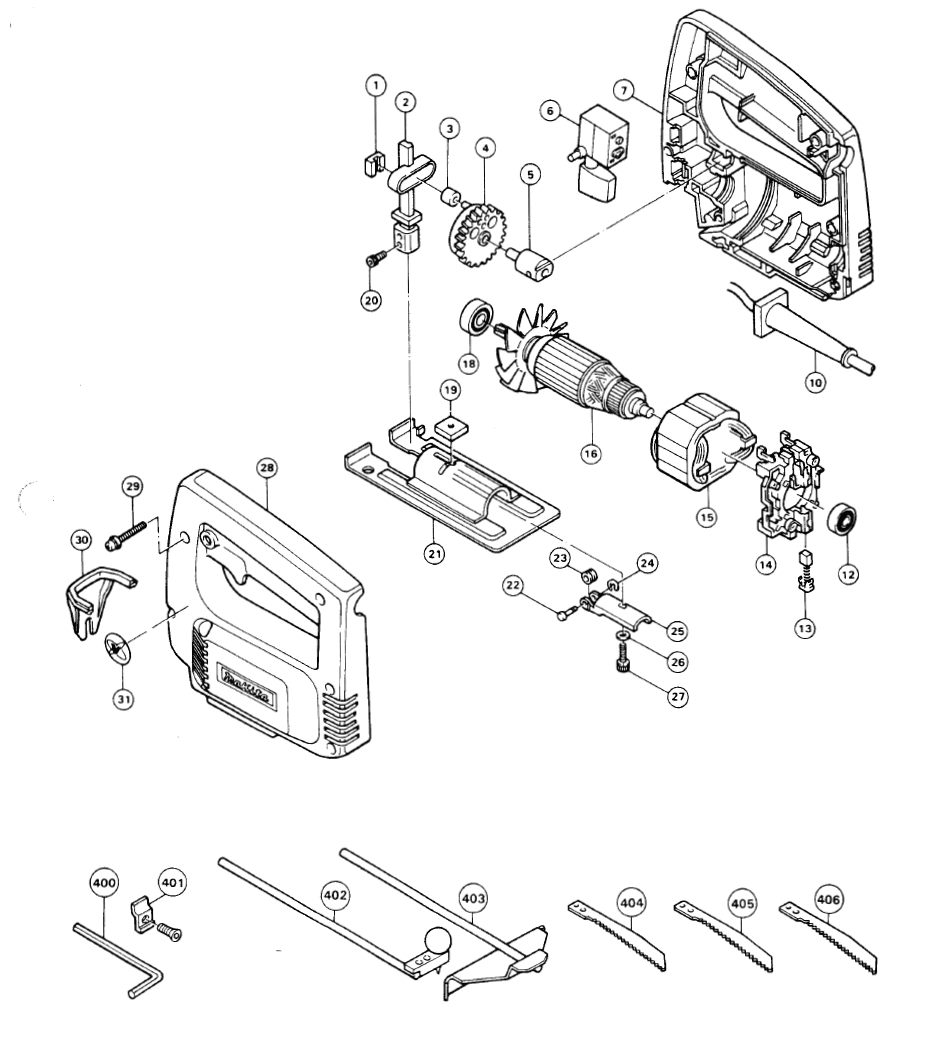

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	214025-0	P. BEARING 4, 4320	$3.06
3	257625-3	SLEEVE 4, 4320	$3.06
4	153183-6	GEAR, 4320	$27.26
5	152327-5	PIN 6, 4320	$10.32
12	211021-9	BALL BEARING 607LLB, LS1013	$8.78
14	632081-2	TERMINAL BASE, 4320	$8.78
15	633046-7	FIELD, 4320	$20.88
16	611726-5	ARMATURE, 4320	$51.20
18	211031-6	BALL BEARING 608LLB, 9227C	$10.98
19	343540-8	HOLDER, 4329K	$1.63
20	922107-1	H.S.H. BOLT M4X8, 4329K	$1.34
21	164888-3	BASE, 4320	$10.32
22	256644-6	PIN 3, 4320	$1.48
24	257903-1	STOP RING E2.3, 3901	$0.49
26	941052-1	F. WASHER 4, 9218SB	$0.75
27	922121-7	H.S.H. BOLT M4X14, 4320	$1.34
29	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
30	414226-2	PROTECTOR, 4320	$3.06
31	818057-5	LABEL, 4301BV	$0.64
400	783201-2	HEX WRENCH 3, AF501	$3.40
