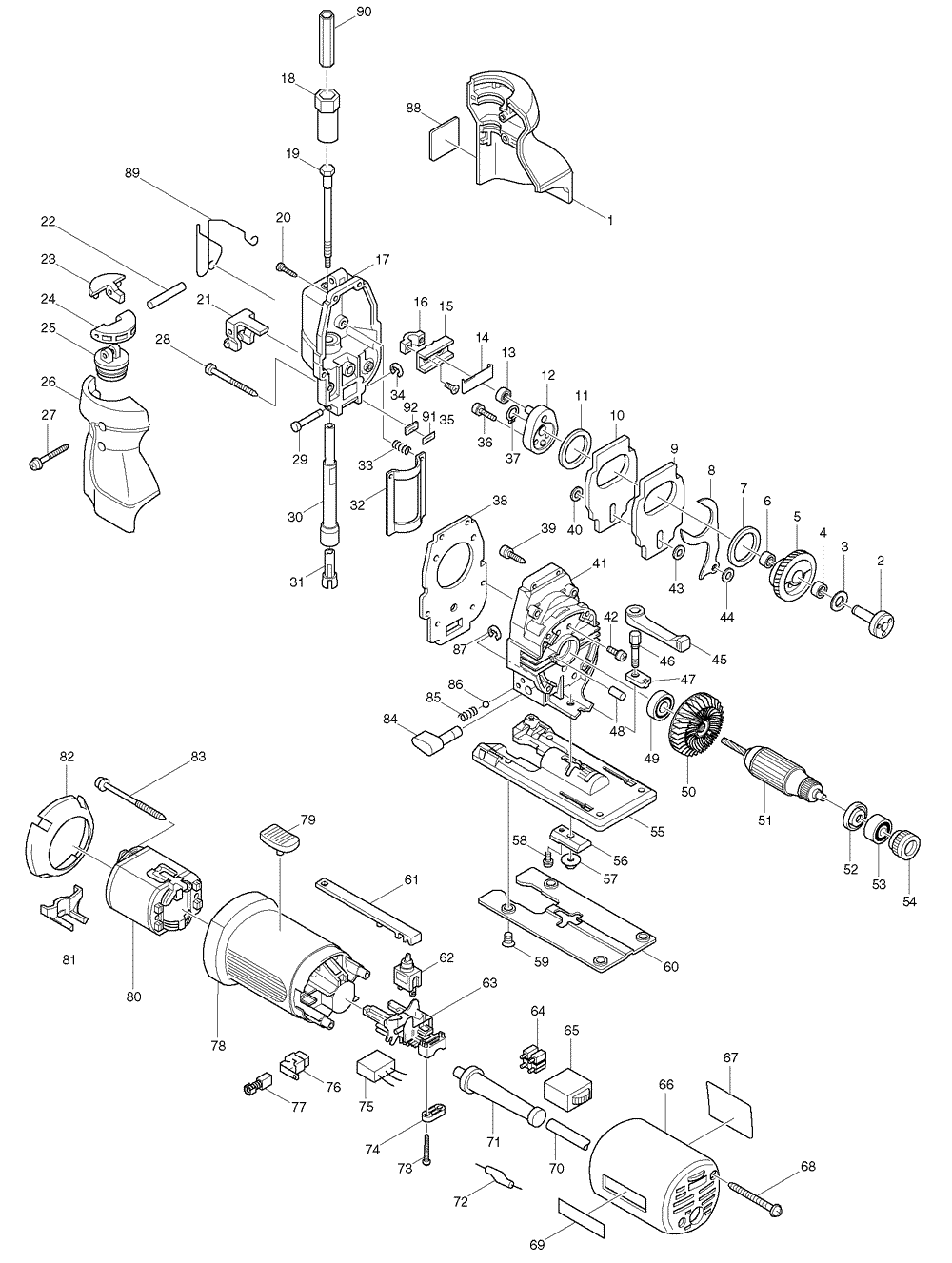

Makita 4305T Electric Saw Parts
|
|
|
|
| Fig. | Part # | Img | Part Name | Price | Qty. |
| 1 |
182789-3
|
|
HEAD COVER SET, 4305T
| $8.01 |
|
| 2 |
322691-0
|
|
GEAR SHAFT, 4334DW
| $15.27 |
|
| 3 |
253139-0
|
|
F. WASHER 8, 6510LVR
| $1.34 |
|
| 4 |
212043-2
|
|
NEEDLE BEARING 8-10, N900
| $3.06 |
|
| 5 |
226428-6
|
|
HELICAL GEAR 51, 4304
| $43.86 |
|
| 6 |
212043-2
|
|
NEEDLE BEARING 8-10, N900
| $3.06 |
|
| 7 |
253792-2
|
|
F. WASHER 26, 4304
| $1.63 |
|
| 8 |
344134-2
|
|
PUSH PLATE, 4304
| $3.06 |
|
| 9 |
344330-2
|
|
BALANCE PLATE, 4304
| $5.92 |
|
| 9 |
344370-0
|
|
BALANCE PLATE, 4304T,T1
| $3.61 |
|
| 10 |
344330-2
|
|
BALANCE PLATE, 4304
| $5.92 |
|
| 10 |
344370-0
|
|
BALANCE PLATE, 4304T,T1
| $3.61 |
|
| 11 |
253792-2
|
|
F. WASHER 26, 4304
| $1.63 |
|
| 12 |
152454-8
|
|
CRANK COMPLETE, 4304
| $10.32 |
|
| 13 |
212010-7
|
|
N. BEARING 607, 4330DWA
| $14.61 |
|
| 14 |
344232-2
|
|
THRUST PLATE, 4304
| $0.97 |
|
| 15 |
310028-3
|
|
SLIDER, 4334D
| $17.47 |
|
| 16 |
316608-3
|
|
HOLDER, 4304
| $5.92 |
|
| 17 |
153389-6
|
|
GEAR HOUSING COVER, 4334DWD
| $29.37 |
|
| 17 |
159716-5
|
|
GEAR HSG.COVER CPL., 4304, T1
| $37.02 |
|
| 18 |
416351-5
|
|
JOINT, 4304T
| $1.52 |
|
| 19 |
322826-3
|
|
DRIVER ROD, 4304T
| $5.92 |
|
| 20 |
266034-5
|
|
TAPPING SCREW 4X16, 9524NB
| $0.53 |
|
| 21 |
152947-5
|
|
RETAINER CPL.,4334DWD
| $8.12 |
|
| 22 |
256201-0
|
|
PIN 5, 4305T
| $1.96 |
|
| 23 |
415883-9
|
|
LIFT BUTTON, 4305T
| $1.26 |
|
| 24 |
415885-5
|
|
KNOB, 4305T
| $1.52 |
|
| 25 |
415884-7
|
|
BOX WRENCH, 4305T
| $1.52 |
|
| 26 |
182789-3
|
|
HEAD COVER SET, 4305T
| $8.01 |
|
| 27 |
266053-1
|
|
P.T. SCREW 4X35, 4304
| $1.48 |
|
| 28 |
266147-2
|
|
TAPPING SCREW 4X55, 6824
| $1.96 |
|
| 29 |
256693-3
|
|
HEADED PIN 4, 4305
| $5.37 |
|
| 30 |
168282-1
|
|
ROD, 4304T
| $21.76 |
|
| 31 |
310005-5
|
|
BLADE CLAMP,4304T
| $13.29 |
|
| 32 |
344137-6
|
|
SLIDE PLATE, 4334DWD
| $3.06 |
|
| 33 |
233151-6
|
|
COMPRESSION SPRING 4, 4304T
| $1.48 |
|
| 34 |
961017-7
|
|
STOP RING E-3, 4304, SH01
| $0.53 |
|
| 35 |
265035-0
|
|
C.S.H. SCREW M4X10, 4304
| $1.48 |
|
| 36 |
922126-7
|
|
H.S.H. BOLT M4X16, 4330DWA
| $1.34 |
|
| 37 |
961004-6
|
|
RETAINING RING S-8, DA391D
| $0.53 |
|
| 38 |
442123-2
|
|
PACKING, 4304,T2
| $0.97 |
|
| 38 |
442119-3
|
|
PACKING, 4304,T1
| $3.61 |
|
| 39 |
266045-0
|
|
TAPPING SCREW 4X20, 9046
| $1.19 |
|
| 40 |
253715-0
|
|
F. WASHER 6, NHP1310
| $1.34 |
|
| 41 |
151595-7
|
|
GEAR HOUSING CPL., 4304T,T2
| $30.60 |
|
| 41 |
159852-7
|
|
GEAR HOUSING COMPLETE, 4304T,T1
| $27.37 |
|
| 42 |
911111-5
|
|
P.H. SCREW M4X10, LS1011
| $0.53 |
|
| 43 |
253715-0
|
|
F. WASHER 6, NHP1310
| $1.34 |
|
| 44 |
253811-4
|
|
F. WASHER 5, 5007NK
| $1.34 |
|
| 45 |
272232-1
|
|
LEVER 65, 4304T
| $2.84 |
|
| 46 |
265434-6
|
|
HEX BOLT M5X24, 4304T
| $5.37 |
|
| 47 |
344332-8
|
|
NUT M6, 4304T
| $4.16 |
|
| 48 |
263002-9
|
|
RUBBER PIN 4, 5007NK
| $0.86 |
|
| 49 |
211031-6
|
|
BALL BEARING 608LLB, 9227C
| $10.98 |
|
| 50 |
241875-0
|
|
FAN 54, 4334DWD
| $2.84 |
|
| 50 |
240039-3
|
|
FAN 54, 4304
| $1.63 |
|
| 51 |
517096-9
|
|
ARMATURE ASS'Y 115V, 4304
| $92.10 |
|
| 52 |
681636-0
|
|
INSULATION WASHER, GA4030
| $3.72 |
|
| 53 |
211021-9
|
|
BALL BEARING 607LLB, LS1013
| $8.78 |
|
| 54 |
421494-0
|
|
LABYRINTH RUBBER RING,HR2455, DA3010F
| $4.49 |
|
| 55 |
316777-0
|
|
BASE, 4304T
| $17.47 |
|
| 56 |
344333-6
|
|
CLAMP PLATE, 4304T
| $4.49 |
|
| 57 |
252142-8
|
|
HEX NUT FLANGE M5, 4304T
| $3.61 |
|
| 58 |
911109-2
|
|
P.H. SCREW M4X8, HR2210
| $0.86 |
|
| 59 |
912202-5
|
|
C.S.H. SCREW M5X8, 4110C
| $0.53 |
|
| 60 |
344443-9
|
|
BASE PLATE, 4304T
| $6.80 |
|
| 61 |
415522-1
|
|
SWITCH ROD, 4305
| $1.63 |
|
| 62 |
651418-4
|
|
SWITCH, 9564CV
| $17.25 |
|
| 62 |
651428-1
|
|
SWITCH, 4341FCT
| $13.84 |
|
| 63 |
687070-2
|
|
SUPPORT, 4305
| $4.49 |
|
| 64 |
654531-7
|
|
TERMINAL BLOCK 2P, 5007MG
| $4.49 |
|
| 65 |
631675-0
|
|
CONTROLLER, 4304
| $18.35 |
|
| 66 |
415531-0
|
|
REAR COVER, 4305
| $10.32 |
|
| 67 |
858430-7
|
|
NAME PLATE, 4305T
| $1.36 |
|
| 69 |
819063-3
|
|
MAKITA LABEL, DA3010F
| $0.96 |
|
| 70 |
664064-4
|
|
CORD (2X18X8 SJ), BO4556
| $16.04 |
|
| 70 |
EC182
|
|
Power Tools Replacement Electical Cords (SJO) 18...
| $10.19 |
|
| 71 |
682502-4
|
|
CORD GUARD 8-85, HP2010N
| $2.51 |
|
| 71 |
Boot-C
|
|
Strain Relief fits 18/2 AWG only
| $4.19 |
|
| 73 |
265995-6
|
|
TAPPING SCREW 4X18, BO4556K
| $0.86 |
|
| 74 |
687063-9
|
|
STRAIN RELIEF, 4323K
| $1.26 |
|
| 76 |
643923-5
|
|
BRUSH HOLDER, HR2410
| $1.63 |
|
| 77 |
195007-0
|
|
CARBON BRUSH SET CB-407, BO5030K
| $8.12 |
|
| 78 |
415748-5
|
|
MOTOR HOUSING, 4304
| $11.75 |
|
| 79 |
415523-9
|
|
SWITCH LEVER, 4305
| $1.63 |
|
| 80 |
633286-7
|
|
FIELD 115V, 4304
| $34.68 |
|
| 81 |
415879-0
|
|
AIR CAP, 4304T
| $1.52 |
|
| 82 |
415878-2
|
|
BAFFLE PLATE, 4304T
| $1.52 |
|
| 84 |
272231-3
|
|
LEVER 17, 4304
| $8.78 |
|
| 85 |
233151-6
|
|
COMPRESSION SPRING 4, 4304T
| $1.48 |
|
| 86 |
216008-6
|
|
STEEL BALL 4.0, 5007NK
| $0.53 |
|
| 87 |
961018-5
|
|
STOP RING E-5, LS1011
| $0.53 |
|
| 88 |
810835-9
|
|
CAUTION LABEL, 4304T
| $2.51 |
|
| 89 |
322893-8
|
|
SAFETY WIRE, 4304T
| $2.84 |
|
| 90 |
344537-0
|
|
HEX SLEEVE, 4304T
| $1.52 |
|
| 91 |
344784-3
|
|
SEAL PLATE, 4304T
| $0.97 |
|
| 92 |
443106-5
|
|
FELT 10-20, 4304T
| $0.75 |
|
| 1002 |
415887-1
|
|
PROTECTOR, 4304T
| $4.20 |
|
| 1003 |
415524-7
|
|
ANTI SPLINTERING PLATE, 4304
| $4.40 |
|
| 1006 |
792729-9
|
|
JIG SAW BLADE, BR-13 5/PKG., 4304
| $7.40 |
|
|
|
|
|
|
|
|
|
